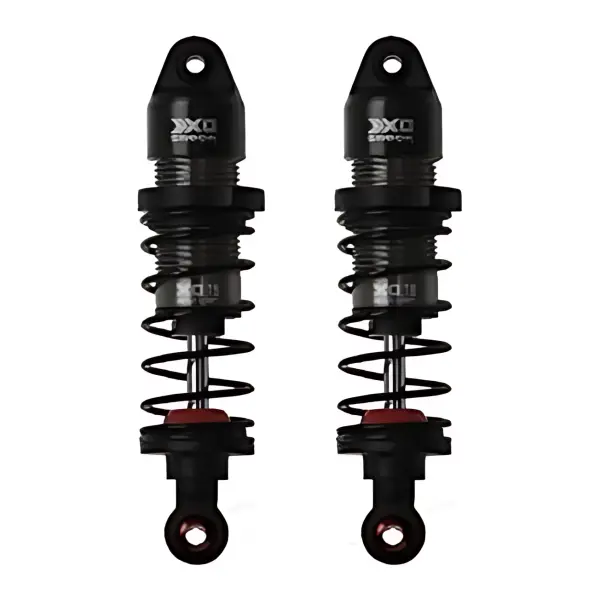

GMade XD Diaphragm Shocks 75mm (2)

The GMade XD Diaphragm Shock 75mm (2) – part number GM22307 – delivers smooth, consistent damping in a compact package. Built around CNC-machined aluminium bodies and caps with a titanium grey anodised finish, these diaphragm dampers feature fully threaded bodies for rapid ride-height and preload adjustment, plus an easy-load seal assembly for straightforward maintenance.

Suggested compatibility includes 1/8 and 1/10 scale crawlers and trucks, 1/10 scale EP buggies and short course trucks; examples include models such as the Gmade R1, Axial Wraith and XR-10, and Traxxas E‑Maxx and 2WD Slash rear.

Features

• CNC machined aluminium shock bodies and caps
• Titanium grey anodised shock bodies and caps
• Lower shock ends include red anodised aluminium balls
• Fully threaded for rapid adjustment
• Delrin pistons
• 3.5mm thick shock shafts
• Shaft exits through double O-ring seals
• Easy load shock seal assembly
• Laser engraved for authenticity

What's Included

• Titanium grey anodised aluminium shock bodies x 2
• Titanium grey anodised aluminium shock caps x 2
• Diaphragms x 2
• Shock springs x 2
• All necessary hardware to finish the shocks
• Assembly instructions
• Bottle of shock oil

Specs

• Length (mounting hole to hole): 75mm
• Shock body diameter: 14mm
• Spring diameter: 19mm
• Spring length: 40mm
• Full shaft travel range: 17mm (without rubber bump stop)
• Shaft diameter: 3.5mm
