Description

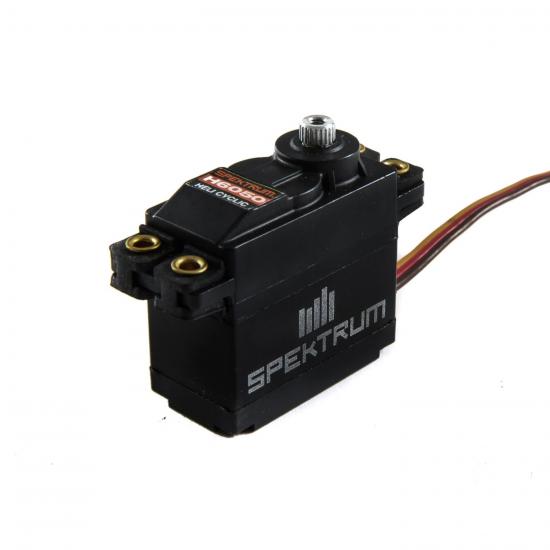

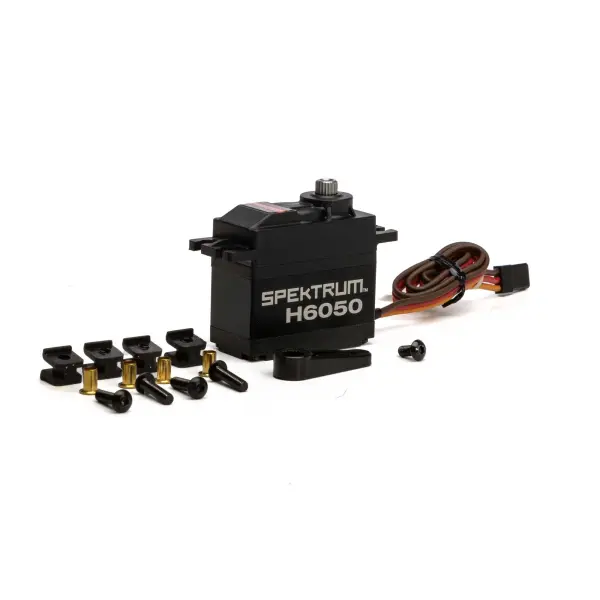

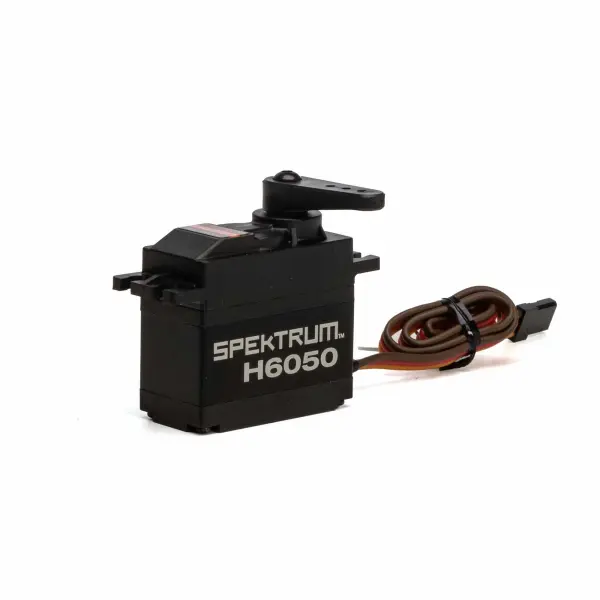

The Spektrum H6050 High-Torque Mid-Speed Heli Cyclic Servo (SPMSH6050) is a budget-friendly digital cyclic servo for helicopter models up to 500 size. A powerful coreless motor, fully metal gear train and dual bearings deliver consistent precision, with 160 oz-in torque and 0.103 sec transit speed at 6.0V. The standard-size case and long 10 inch (255mm) lead simplify installation in a wide range of airframes. Suggested compatibility includes the Blade Fusion 480.
Key Features
- Standard size servo for 500 size helicopter models and smaller
- 160 oz-in torque and 0.103 sec speed at 6.0V
- 4.8V–6.0V input voltage
- Long 10 inch (255mm) connector wire to reduce the need for extensions
- 23 tooth spline
- Bearing-supported output spline
Specifications
- Servo Type: Digital
- Application: Helis Cyclic
- Motor Type: Brushed (coreless)
- Gear Type: Metal
- Bushing or Bearing: Bearing
- Bearing: Dual
- Maximum Torque: 160 oz-in (11.5 kg-cm) @ 6.0V
- Speed: 0.103 sec @ 6.0V
- Operating Voltage: 4.8–6.0V
- Rotation Range: 120 deg
- Connector Type: Universal
- Connector Wire Length: 10 in (255mm)
- Wire Gauge: 22 AWG
- Spline Count: 23T
- Case Material: Plastic
- Size Category: Standard
- Deadband: Less than 1?s
- Weight: 2.2 oz (62g)
- Length: 1.57 in (40.0 mm)
- Width: 0.79 in (20.0 mm)
- Height: 1.51 in (38.3 mm)
Secured by Stripe
H6050 High-Torque Mid-Speed Heli Cyclic Servo Manuals & Guides
Manuals & Guides
Specifications
The H6050 is a budget friendly digital cyclic servo that is purpose built for helicopter models up to 500 size. Featuring a powerful coreless motor that delivers a potent 160oz of torque and a quick .103 sec (at 6.0V) and durable fully metal gear train. Built into a standard size case, this servo is a perfect fit for the Blade Fusion 480 and many other high performance heli models.
- Standard size servo for 500 size Helicopter models and smaller
- 160oz Torque and .103 sec speed at 6.0v
- 4.8v-6.0v input voltage
- Long 10 inch (255mm) connector wire to reduce the need for extensions
- 23 Tooth spline
- Bearing supported output spline
H6050 High-Torque Mid-Speed Heli Cyclic Servo ** CLEARANCE ** Specifications:
- Application: Helis Cyclic
- Bearing: Dual
- Bushing Or Bearing: Bearing
- Connector Type: Universal
- Connector Wire Length: 10 in (255mm)
- Deadband: Less than 1?s
- Gear Type: Metal
- Material: Plastic
- Maximum Servo Torque: 160 oz-in (11.5 kg-cm) @ 6.0V
- Motor Type: Brushed
- Product Application: Helis Cyclic
- Product Height: 1.51 in (38.3 mm)
- Product Length: 1.57 in (40.0 mm)
- Product Weight: 2.2 oz (62g)
- Product Width: 0.79 in (20.0 mm)
- Programmable: No
- Rotation Range: 120 deg
- Servo Operating Voltage: 4.8 - 6.0V
- Servo Size Category: Standard
- Servo Type: Digital
- Wire Gauge: 22 AWG
Key Info:
- Brand: Spektrum
- Part No: SPMSH6050
- Barcode: 605482187241
- Fitment: Option Part
Additional Categories:
