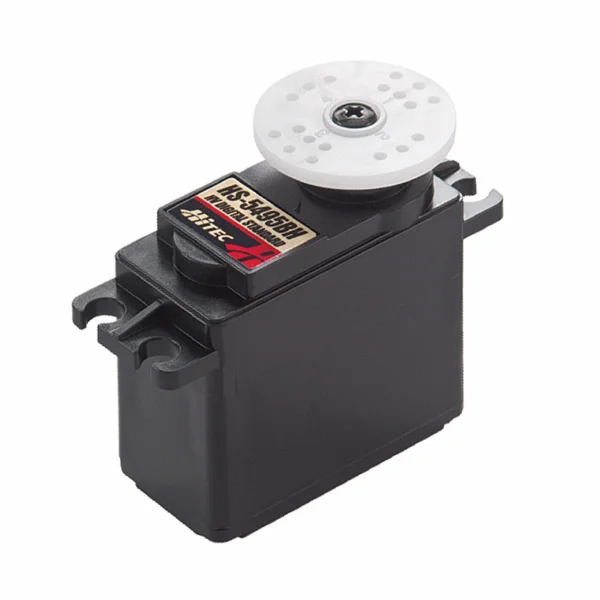

Hitec HS5495Bh Digital HV Hi Torque HD Gears Dual
Brand: Hitec
Part No: 2217590
In Stock: Usually ships same day
The Hitec HS-5495BH digital sport servo (part no. 2217590) pairs a 3‑pole ferrite motor with heavy-duty Karbonite gears and a top ball bearing for smooth, reliable control. This HV-capable, standard-size servo is designed to run on up to 7.4V (2‑cell LiPo) and delivers a strong balance of speed and torque in a compact 40 × 20 × 38 mm, 44.5 g package. Also known as HS5495BH Digital HV Hi Torque HD Gears, it offers programmable parameters for fine-tuning.
Features
- Digital HV sport servo with 2S (7.4V) LiPo capability
- Heavy-duty Karbonite gear train
- Top ball bearing for reduced friction
- 3‑pole ferrite motor
- Programmable setup for tailored performance
Programmable Features
- Dead band width
- Direction of rotation
- Speed of rotation (slower)
- End points
- Neutral points
- Fail Safe On/Off
- Fail Safe point
Specifications
- Motor type: 3 pole ferrite
- Bearing type: Top ball bearing
- Gears: Karbonite
- Speed (6.0V/7.4V): 0.17 / 0.15 sec @ 60°
- Torque (kg.cm, 6.0V/7.4V): 6.4 / 7.5
- Torque (oz.in, 6.0V/7.4V): 89 / 104

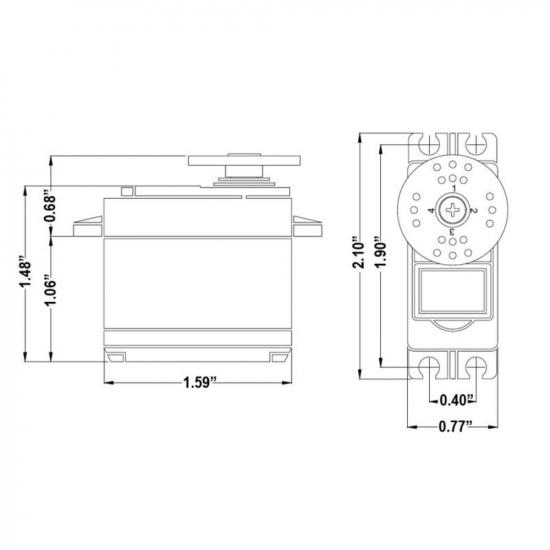

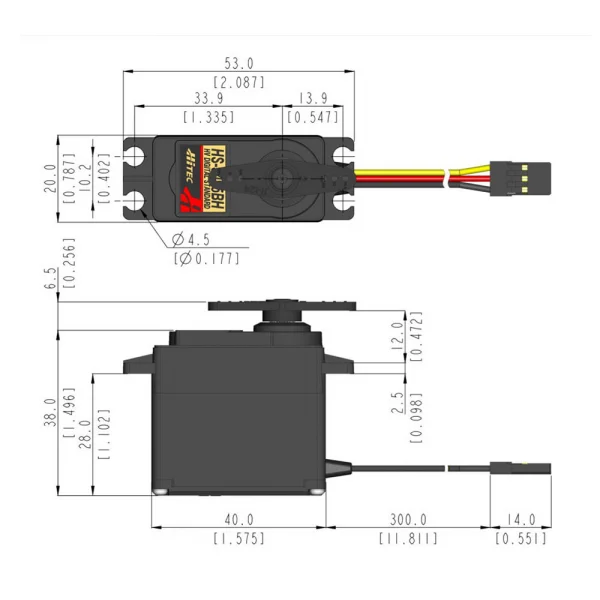

- Size: 40 × 20 × 38 mm (1.57 × 0.78 × 1.50 in)
- Weight: 44.5 g (1.59 oz)
Suggested Compatibility
- Sport aeroplanes up to 25% scale weighing under 12 pounds
Secured by Stripe
- Motor Type - 3 Pole Ferrite
- Bearing Type - Top Ball Bearing
- Speed (6.0V/7.4V) - 017 / 0.15 sec @ 60 deg.
- Torque kg./cm. (6.0V/7.4V) - 6.4 / 7.5
- Size in Millimetres - 40 x 20 x 38
- Weight grams - 44.5
- Gears - Karbonite
At Hitec, we believe in developing the highest quality servos in the market at an affordable price. That philosophy stands true with the economical HS-5495BH digital sport servo. Based on the popular HS-5485HB, the HS-5495BHs heavy-duty Karbonite gears are the perfect match for sport airplanes up to 25% scale weighing under 12 pounds. With 7.4 volt, 2-cell LiPo battery capability, The HS-5495BH delivers the power you need at a price you can feel good about! Trust your hobby to Hitec.
Programmable Features Include: - Dead Band Width
- Direction of Rotation
- Speed of Rotation (slower)
- End Points
- Neutral Points
- Fail Safe On/Off
- Fail Safe Point
| Motor Type: | 3 Pole Ferrite |
| Bearing Type: | Top Ball Bearing |
| Speed (6.0V/7.4V): | 0.17 / 0.15 Second |
| Torque oz./in. (6.0V/7.4V): | 89 / 104 oz.in. |
| Torque kg./cm. (6.0V/7.4V): | 6.4 / 7.5 |
| Size in Inches: | 1.57 x 0.78 x 1.50 in. |
| Size in Millimeters: | 40 x 20 x 38 mm |
| Weight oz.: | 1.59 oz. |
| Weight g.: | 44.5 g. |
Key Info:
- Brand: Hitec
- Part No: 2217590
- Barcode: 669962354950
