Hobbywing EZRun MAX10 G2 80A ESC (HW30102604)
Brand: Hobbywing
Part No: HW30102604
In Stock: Usually ships same day
Finance options available at checkout.
Frequently Bought With
Other items customers often buy with the Hobbywing EZRun MAX10 G2 80A Speed Control
Description

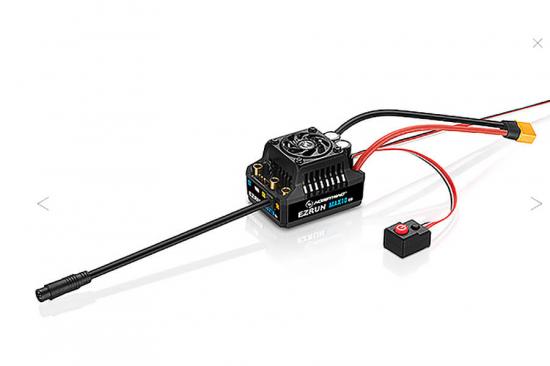

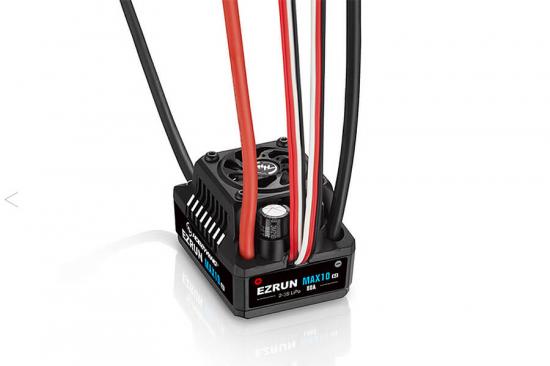

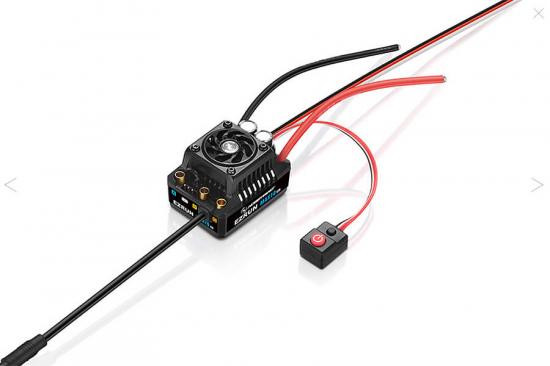

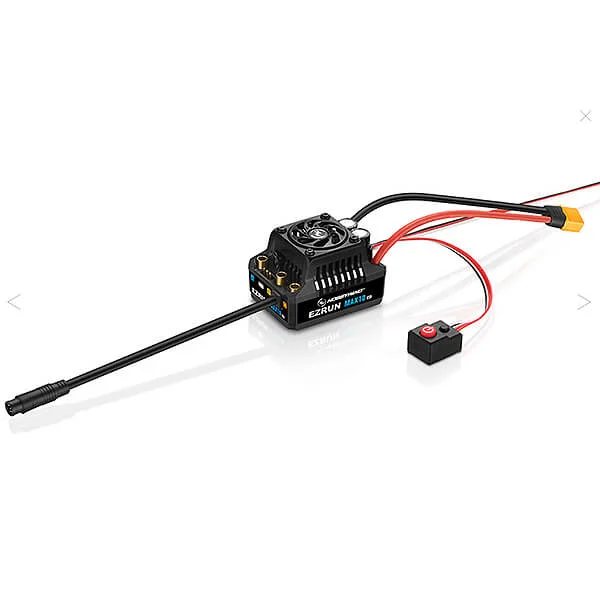

The Hobbywing EZRun MAX10 G2 80A Speed Control (HW30102604) is a waterproof 1/10 scale brushless ESC for 2–3S LiPo setups. It delivers 80A continuous and up to 520A peak current, includes a powerful 5A BEC at 6V or 7.4V, and offers flexible programming via Hobbywing program boxes or OTA. A 25mm cooling fan and robust XT60 battery input round out a compact, versatile package.
Key Specifications
- Continuous/Peak Current: 80A / 520A
- Input Voltage: 2–3S LiPo
- Motor Support: Sensored and sensorless brushless
- Waterproof design
- BEC Output: 6V/7.4V, 5A
- Battery Connector: XT60
- Motor Connectors: 4.0mm gold female

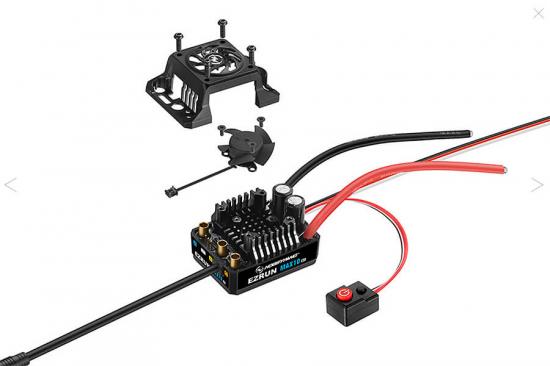

- Cooling Fan: 25×25×10mm, powered by BEC (5–7.4V)
Programming & Firmware
- On‑ESC SET Button: Not supported
- LED Program Box: Supported
- LCD Program Box (G2): Supported
- OTA Programmer: Supported
- Programming Port: Separate
- Firmware Upgrade: Supported
Suggested Compatibility
- Vehicle Types: 1/10 on‑road, off‑road, short course, truck (light‑duty)
- Motors: Sensored (SD) and sensorless (SL) brushless
- Typical Motor Size: 3652
- KV Guidance: Up to 6000KV on 2S; up to 4200KV on 3S
Dimensions & Weight
- Size: 53 × 39.5 × 37.2 mm
- Weight: 120 g (with wires)
Secured by Stripe
Hobbywing EZRun MAX10 G2 80A Speed Control Manuals & Guides
Specifications
Hobbywing EZRun MAX10 G2 80A Speed Control Specifications
Type
Scale: 1/10th
Brushed/Brushless: BL
Sensored/Sensorless: SD
Waterproof: Waterproof
Specifications
Cont./Peak Current: 80A/520A
Input Voltage: 2-3S LiPo
BEC Output: 6/7.4V, 5A
Wires & Connectors
Input Wires: Red-12AWG-159=0mm*1 Black-12AWG-150mm*1
Output Wires:
Input Connectors: XT60
Output Connectors: 4.0mm Gold (Female)
Fan
Size: 25x25x10mm
Output Wires: 5-7.4V
Input Connectors: Powered by BEC
Esc Programming Via
SET Button on ESC: No
LED Program Box: Supported
LCD Program Box: Supported (G2)
OTA Programmer: Supported
Programming Port: Separate
Firmware
Firmware Upgrade: Supported
Size & Weight
Size: 53mm*39.5mm*37.2mm
Weight: 120g(w/Wires)
Applications
Applicaions: SL BL Motors / SD BL Motors Vehicles: 1/10th On-Road / Off-Road Short Course / Truck (Light-Duty)
KV Rating / T Count: With 2S LiPo: KV<6000, With 3S LiPo: KV<4200 3652 Size Motor
Key Info:
- Brand: Hobbywing
- Part No: HW30102604
- Barcode: 6938994405553
- Motor Type: Brushless
- LiPo Compatible: Yes
