Description

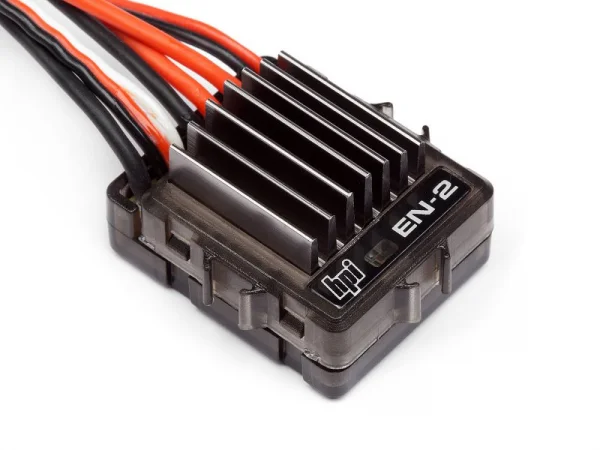

The HPI EN-2 Electronic Speed Control (HPI-349) is a compact brushed ESC with reverse for 21-turn motors, operating on 7.2–8.4V NiMH packs. It offers a lightweight solution where space and weight matter, and is suitable for small RC applications that use 380-size brushed motors.
Key Specifications
- Input voltage: 7.2V–8.4V (NiMH)
- Output rating: 35A, peak 60A
- Max output: 25A @ 7.2V (up to 180W)
- BEC: 5V / 1A
- PWM frequency: 1 kHz
- Motor limit: 21-turn minimum
- Motor type limit: 380 brushed motor (≤7.2V, 6 cells)
- Size: 23 x 29 x 18.8 mm
- Weight: 19.5 g
Important Note
This ESC does not provide LiPo low-voltage cut-off protection and is not suitable for use with LiPo battery packs.
Suggested Compatibility
- HPI Micro RS4 platforms using 380 brushed motors
Secured by Stripe
HPI EN-2 ESC With Reverse (Micro RS4) - 21T Limit Manuals & Guides
How-To Guides & Articles
Specifications
EN-2 Micro ESC with Reverse. As standard in the Micro RS4.
Specification:
- Input Voltage: 7.2V-8.4V(NiMH)
- Output: Rating: 35A, Peak: 60A
- Out max power :25A/7.2V (Max 180W)
- Size: 23x29x18.8mm
- Weight: 19.5g
- BEC: 5V/1A
- P.W.M: 1KHz
- Motor limit :380 brushed motor [≤7.2V (6cells)]
Please note: This ESC does not have LiPo Low Voltage Cut-Off Protection, therefore it is not suitable to be used with LiPo Battery Packs.
Download PDF instructions for #349 (1 MB)
Key Info:
- Brand: HPI
- Part No: HPI-349
- Barcode: 4944258003498
- Fitment: Standard Part
