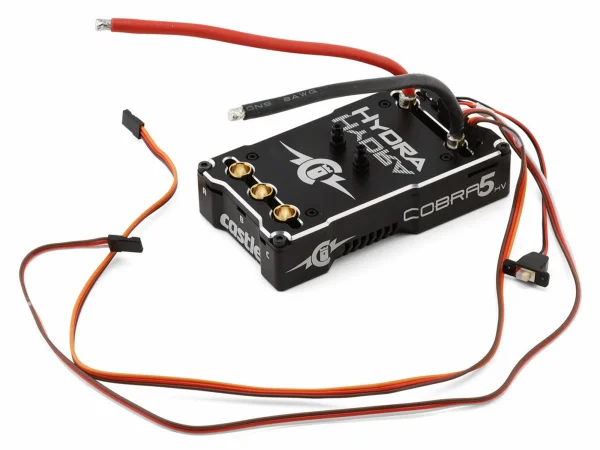

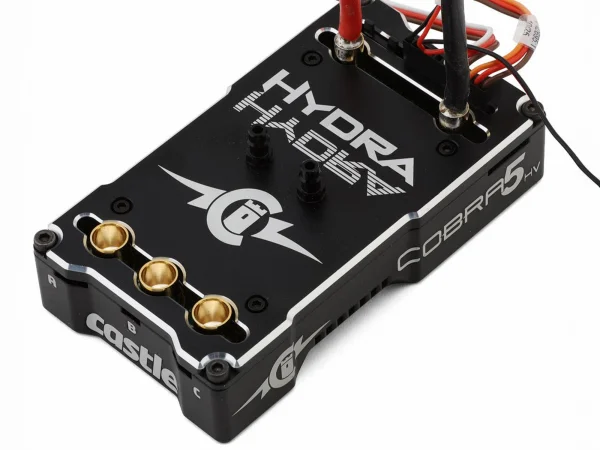

Castle Creations Hydra Cobra 5 HV - 12S - 50.4V ESC - 20A Peak Bec

Built for serious marine performance, the Castle Creations Hydra Cobra 5 HV (P-CC010-0183-00) is a next-generation 12S / 50.4 V brushless ESC re-engineered for water from the proven Cobra 5 HV platform. It delivers smooth 32-bit control, data-rich performance monitoring and robust protection in a rugged, water-ready package. Suggested compatibility: RC hobby boats up to 50 inches. This model is supplied as the Castle Creations Hydra Cobra 5 HV - 12S - 50.4V ESC - 20A Peak BEC.

Thermal management is a standout. CRYO-DRIVE technology reduces the time electrical components spend generating heat to improve efficiency at partial throttle, while a CNC aluminium case and waterproof epoxy potting protect the electronics and aid heat transfer. A machined, water-cooled heatsink with 0.17" fittings further enhances cooling for sustained performance in demanding runs. Upgraded current-sensing and thermal protection actively mitigate risk in aggressive or high-load setups.

For tuning and telemetry, the Hydra Cobra 5 HV offers enhanced data logging with double the maximum sample frequency and up to eight times the logging duration of previous generations. It records ESC electrical motor timing and acceleration data via the onboard accelerometer, and a looping feature helps prevent interruptions so you capture complete sessions. Audible alerts assist with quick diagnosis of common issues such as motor over-temperature and low-voltage cutoff, while a Limp Mode makes returning to shore easier when low voltage cutoff is activated.

Setup is flexible. The internal BEC is highly adjustable from 5.0 V to 8.5 V in 0.1 V increments, and an auxiliary wire enables on-the-fly adjustments using your transmitter. You can program six common settings from the transmitter, including cutoff voltage and drag brake. Connectivity is simple too: the Castle Link V4 USB programmer is included for access to tuning options and free firmware updates, or pair the ESC with a B-Link 2 Bluetooth Interface and the Castle Link 2 app on Android or iOS for wireless optimisation.

Key Features

• 32-bit processing power for smoother motor control and improved response time
• Enhanced data logging with doubled sample frequency and up to 8x longer logging time
• Logs ESC electrical motor timing and acceleration data via onboard accelerometer
• Looping feature to prevent interruptions in data log recording
• Limp Mode to aid return to shore when low voltage cutoff activates
• Highly adjustable internal BEC (5.0–8.5 V in 0.1 V increments)
• Access to tuning options and firmware updates via Castle Link V4 (included) or Castle Link 2 app with B-Link 2 Bluetooth Interface
• Upgraded current-sensing and thermal protection for high-load setups
• CRYO-DRIVE technology for improved thermal performance at partial throttle
• Rugged CNC aluminium case, potted in waterproof epoxy
• Machined water-cooled heatsink with 0.17" water fittings
• Auxiliary wire functionality for on-the-fly transmitter adjustments
• Audible alerts for motor over-temperature and low-voltage cutoff
• Convenient transmitter programming for six common settings including cutoff voltage and drag brake

What’s Included

• Hydra Cobra 5 HV ESC
• Cobra decals
• Castle Link V4 USB Adapter
• Cobra Quick Start Guide
