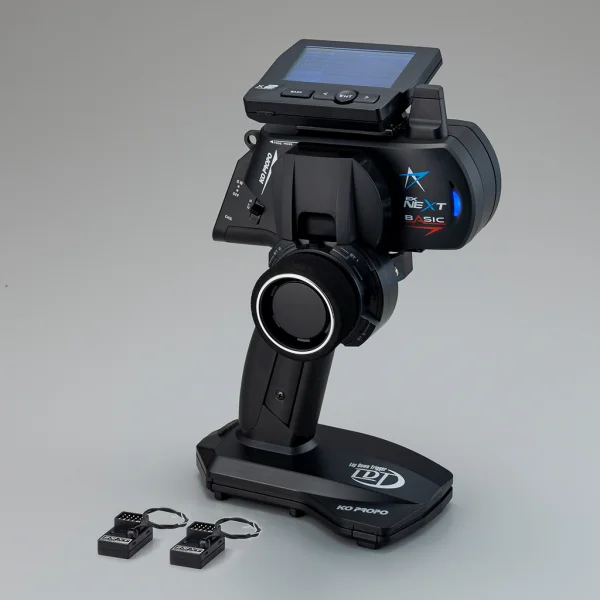

KO EX-NEXT LDT BASIC w/KR-242XT Double Receiver
Brand: KO Propo
Part No: SCH-KO10785
£308.74
RRP £324.99
Out Of Stock
Request Stock NotificationThe KO Propo EX-NEXT LDT Basic with 2 x KR-242XT telemetry receivers delivers the EX-NEXT platform’s ultra-fast XT performance in a streamlined, great-value package. Featuring the Lay Down Trigger (LDT) for a highly linear feel and natural fingertip control, this transmitter brings high-end precision with a simple, practical configuration. Made in Japan.
Key Features
- Lay Down Trigger (LDT) design for smooth, linear throttle and brake control; adjustable to suit smaller hands (limits may apply).
- New-generation XT system with a choice of XT Advanced Mode (ultra-high-speed response) or XT Telemetry Mode (bi-directional communication).
- REAL TIME ICS: connect a serial-compatible 4S servo to the KR-242XT B/S port to adjust servo parameters directly from the transmitter.
- Charge-through convenience using the included balance terminal extension cable (XH 3-pin). Compatible Battery size (Maximum): 88x18x32cm.
- 50-model memory and 4-channel operation (PWM/Serial) with high-resolution control.
Specifications
- Dimensions: 256.0 × 170.0 × 127.5 mm (excluding protrusions)
- Weight: 563 g (battery not included)
- Power supply options (sold separately): AAA dry battery x4, Ni-MH x4, Li-Fe 2S (6.6 V)*, Li-Po 2S (7.4 V)*
- Current: 200 mA or less
- Channels: 4 ch (PWM/Serial)
- Frequency: 2.4 GHz
- Radio Mode: XT
- Model memory: 50
- Default settings: RF Mode – XT Telemetry; Response – NORMAL
What’s Included
- EX-NEXT LDT Basic transmitter
- 2 × KR-242XT telemetry receivers
- Balance terminal extension cable
Required To Complete
- Transmitter battery: 4 × AAA dry cells, 4 × Ni-MH, 2S Li-Fe (6.6 V)*, or 2S Li-Po (7.4 V)*
- Suitable charger for the chosen battery type (do not charge with the power on)
Suggested Compatibility
- Receivers: KR-420XT, MINI-Z EVO 2 receiver unit for KO compatible transmitter, MINI-Z EVO Receiver Unit EX-NEXT MC-8
- For XT Advanced Mode performance, use KR-420XT and serial-compatible 4S or HCS-compliant RSx3/BSx3 servos*
Notes
- The included KR-242XT supports XT Telemetry mode only; XT Advanced Mode requires a KR-420XT (sold separately).
- Cannot use the LCD Xpansion unit EXP-104 series.
- Cannot use FHSS or DSSS receivers (e.g. KR-418FH, KR-415FHD, KR-210S).
- Do not charge the battery with the power on.
Secure Payments
Secured by Stripe
Introducing the KO PROPO EX-NEXT LDT Basic with 2 x KR-242XT Receiver.
<Includes Telemetry-Only Receiver KR-242XT>
[Specifications]
# Dimensions:256.0×170.0×127.5mm（Does not include protrusions）
# Weight: 563g（battery not included ）
# Power supply: AAA size dry battery x4,
Ni-MH battery x4,
Li-Fe battery (2cell 6.6V)*,
Li-Po battery (2cell 7.4V)*,
(Batteries are sold separately.)
# Current: 200mA or less
# Channel: 4ch (PWM/Serial)
*Maximum setting ID number of serial are different by each products.
# Frequency: 2.4GHz
# Radio Mode: XT
# Model memory 50
# Default Settings:
RF Mode (Transmitter–Receiver): XT Telemetry
Response (Receiver–Servo): NORMAL
# Compatible receiver: KR-420XT, MINI-Z EVO 2 receiver unit for KO compatible transmitter, MINI-Z EVO Receiver Unit EX-NEXT MC-8
*Do not charge the battery with the power on.
*Can not use LCD Xpansion unit EXP-104 series.
*Can not use FHSS or DSSS receiver. (KR-418FH KR-415FHD,KR-210S etc)
*The product photos on this site are prototypes, which may be different to production models.
Made in Japan
Basic Model with a Simple Configuration
This is the basic model of the "EX-NEXT" series, which features ultra-high-speed response enabled by XT technology. By minimizing exterior decoration, we have successfully reduced costs, allowing us to offer this renewed version at a more affordable price. The specifications and functions of the unit remain unchanged, so you can enjoy the high-end performance with ease.
Equipped with Lay Down Trigger (LDT)!
A new idea to lay down the operation axis of the trigger by 90 degrees. This sensation that you can squeeze and press naturally with your fingertips. Ergonomic design that does not disturb the movement of the fingers realizes a seamless and highly linear operation feeling over the entire stroke. Makes accelerator work and braking smoother and more enjoyable. "LDT" is born, which seems to improve Dora Tech for both one and two ranks. This appearance, which is also focused on the quality of operation feeling, takes you to a new dimension. Also, this is adjustable for using by children who has small hands * There are limit by Hand size.
Charge battery by connecting to stand
Balance terminal extension cable is included. You can charge the battery without removing the battery from the transmitter.
*This compatible connecttor is XH (3 pins).* Compatible Battery size (Maximum):88x18x32cm
Equipped with a new standard "XT" that achieves the fastest communication speed in the industry.
EX-NEXT features the newly implemented “XT” system, an evolution beyond the conventional “FHSS.” You can choose between “XT Advanced Mode” for ultra-high-speed response and “XT Telemetry Mode” for bi-directional communication (telemetry) support.
XT Advanced Mode
EX-NEXT has been newly developed with a complete redesign of both its control and communication systems from the ground up. It achieves industry-leading communication speed and ultra-high-resolution precision. In its fastest response mode, "XT Advanced Mode," EX-NEXT delivers approximately three times the communication speed compared to the EX-RR. This performance surpasses even the previously fastest HCS mode.
High-speed communication in the XT advanced mode improves the information density that will be sent to the receivers.
You will feel a "Fine and smooth maneuvering feeling" by unprecedented high-definition and high-resolution control when operating.
*When using the ultra-high-speed XT Advanced Mode, please combine it with either serial-compatible servo “4S” or HCS-compliant "RSx3/BSx3" series servos. Due to the extremely fast communication cycle of the XT Advanced Mode, general servos might experience limitations in their operating angles.
*Although the EX-NEXT main unit is equipped with XT Advanced Mode, the included KR-242XT is for XT Telemetry only. To use XT Advanced Mode, please prepare a separate KR-420XT.
XT Telemetry mode
EX-NEXT is equipped with telemetry (bi-directional communication) functionality. By connecting a serial-compatible “4S” servo to the B/S port of the KR-242XT, “REAL TIME ICS” becomes available. This allows you to adjust servo parameters directly from the transmitter without needing to retrieve the machine. Now you can achieve more refined and uncompromising setups with greater freedom than ever before.
Also, even using the XT Telemetry mode that is 2-way communication, the High-speed response is still faster thanthe EX-RR.
<Includes Telemetry-Only Receiver KR-242XT>
[Specifications]
# Dimensions:256.0×170.0×127.5mm（Does not include protrusions）
# Weight: 563g（battery not included ）
# Power supply: AAA size dry battery x4,
Ni-MH battery x4,
Li-Fe battery (2cell 6.6V)*,
Li-Po battery (2cell 7.4V)*,
(Batteries are sold separately.)
# Current: 200mA or less
# Channel: 4ch (PWM/Serial)
*Maximum setting ID number of serial are different by each products.
# Frequency: 2.4GHz
# Radio Mode: XT
# Model memory 50
# Default Settings:
RF Mode (Transmitter–Receiver): XT Telemetry
Response (Receiver–Servo): NORMAL
# Compatible receiver: KR-420XT, MINI-Z EVO 2 receiver unit for KO compatible transmitter, MINI-Z EVO Receiver Unit EX-NEXT MC-8
*Do not charge the battery with the power on.
*Can not use LCD Xpansion unit EXP-104 series.
*Can not use FHSS or DSSS receiver. (KR-418FH KR-415FHD,KR-210S etc)
*The product photos on this site are prototypes, which may be different to production models.
Made in Japan
Basic Model with a Simple Configuration
This is the basic model of the "EX-NEXT" series, which features ultra-high-speed response enabled by XT technology. By minimizing exterior decoration, we have successfully reduced costs, allowing us to offer this renewed version at a more affordable price. The specifications and functions of the unit remain unchanged, so you can enjoy the high-end performance with ease.
Equipped with Lay Down Trigger (LDT)!
A new idea to lay down the operation axis of the trigger by 90 degrees. This sensation that you can squeeze and press naturally with your fingertips. Ergonomic design that does not disturb the movement of the fingers realizes a seamless and highly linear operation feeling over the entire stroke. Makes accelerator work and braking smoother and more enjoyable. "LDT" is born, which seems to improve Dora Tech for both one and two ranks. This appearance, which is also focused on the quality of operation feeling, takes you to a new dimension. Also, this is adjustable for using by children who has small hands * There are limit by Hand size.
Charge battery by connecting to stand
Balance terminal extension cable is included. You can charge the battery without removing the battery from the transmitter.
*This compatible connecttor is XH (3 pins).* Compatible Battery size (Maximum):88x18x32cm
Equipped with a new standard "XT" that achieves the fastest communication speed in the industry.
EX-NEXT features the newly implemented “XT” system, an evolution beyond the conventional “FHSS.” You can choose between “XT Advanced Mode” for ultra-high-speed response and “XT Telemetry Mode” for bi-directional communication (telemetry) support.
XT Advanced Mode
EX-NEXT has been newly developed with a complete redesign of both its control and communication systems from the ground up. It achieves industry-leading communication speed and ultra-high-resolution precision. In its fastest response mode, "XT Advanced Mode," EX-NEXT delivers approximately three times the communication speed compared to the EX-RR. This performance surpasses even the previously fastest HCS mode.
High-speed communication in the XT advanced mode improves the information density that will be sent to the receivers.
You will feel a "Fine and smooth maneuvering feeling" by unprecedented high-definition and high-resolution control when operating.
*When using the ultra-high-speed XT Advanced Mode, please combine it with either serial-compatible servo “4S” or HCS-compliant "RSx3/BSx3" series servos. Due to the extremely fast communication cycle of the XT Advanced Mode, general servos might experience limitations in their operating angles.
*Although the EX-NEXT main unit is equipped with XT Advanced Mode, the included KR-242XT is for XT Telemetry only. To use XT Advanced Mode, please prepare a separate KR-420XT.
XT Telemetry mode
EX-NEXT is equipped with telemetry (bi-directional communication) functionality. By connecting a serial-compatible “4S” servo to the B/S port of the KR-242XT, “REAL TIME ICS” becomes available. This allows you to adjust servo parameters directly from the transmitter without needing to retrieve the machine. Now you can achieve more refined and uncompromising setups with greater freedom than ever before.
Also, even using the XT Telemetry mode that is 2-way communication, the High-speed response is still faster thanthe EX-RR.
