KO EX-NEXT LDT BASIC w/KR-242XT (short) Double Rec
Brand: KO Propo
Part No: SCH-KO10787
£308.74
RRP £324.99
Out Of Stock

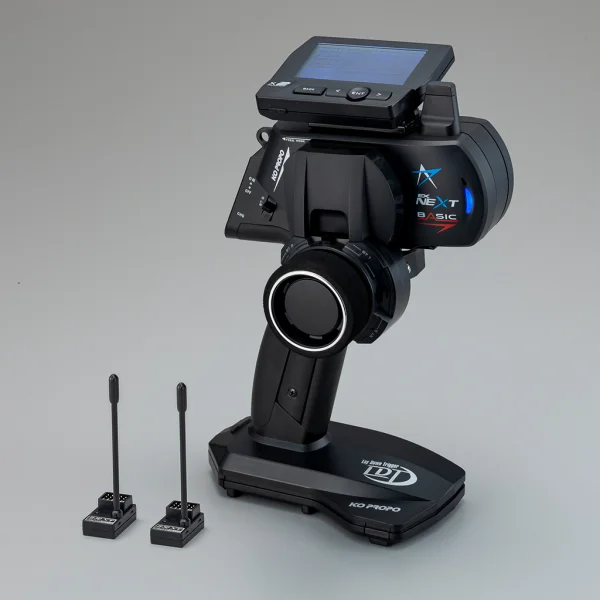

Request Stock NotificationThe KO Propo EX-NEXT LDT Basic (SCH-KO10787) brings the EX-NEXT platform’s high-end performance to a streamlined package and includes two KR-242XT short-antenna telemetry receivers. Featuring the ergonomic Laydown Trigger (LDT) and KO’s ultra-fast XT system, it delivers a fine, smooth and highly linear control feel. Made in Japan.
Key Features
- Laydown Trigger (LDT): 90° rotated trigger axis for a natural squeeze-and-press action, enhancing smooth throttle and braking control; adjustable for smaller hands (within limits).
- XT system with two modes: XT Advanced Mode for ultra-high-speed response, and XT Telemetry Mode for bi-directional communication.
- REAL TIME ICS in XT Telemetry when a serial-compatible “4S” servo is connected to the KR-242XT B/S port, allowing on-transmitter servo parameter adjustment.
- Faster response than the EX-RR even in telemetry mode.
- Charge convenience: balance terminal extension cable included to charge the installed pack without removing it (XH 3-pin).
Specifications
- Dimensions: 256.0 × 170.0 × 127.5 mm (excluding protrusions)
- Weight: 563 g (battery not included)
- Power supply: AAA dry battery ×4; Ni-MH ×4; Li-Fe 2S 6.6 V*; Li-Po 2S 7.4 V* (batteries sold separately)
- Current: 200 mA or less
- Channels: 4ch (PWM/Serial)
- Frequency: 2.4 GHz
- Radio mode: XT
- Model memory: 50
- Default settings: RF Mode – XT Telemetry; Response – NORMAL
What’s Included
- EX-NEXT LDT Basic transmitter
- 2 x KR-242XT telemetry-only receivers (short antenna)
- Balance terminal extension cable
Suggested Compatibility
- KR-420XT
- MINI-Z EVO 2 receiver unit for KO compatible transmitter
- MINI-Z EVO Receiver Unit EX-NEXT MC-8
Notes and Limitations
- The included KR-242XT supports XT Telemetry only; XT Advanced Mode requires a separate KR-420XT.
- For XT Advanced Mode, use serial-compatible “4S” or HCS-compliant RSx3/BSx3 servos; general servos may have limited operating angles due to the fast cycle.
- Do not charge the battery with the transmitter powered on.
- Not compatible with LCD Xpansion Unit EXP-104 series.
- Not compatible with FHSS or DSSS receivers (e.g., KR-418FH, KR-415FHD, KR-210S).
- Product photos may differ from production models.
Secure Payments
Secured by Stripe
Introducing the KO PROPO EX-NEXT LDT Basic with 2 x KR-242XT (Short Antenna) Receiver.
<Includes Telemetry-Only Receiver KR-242XT>
[Specifications]
# Dimensions:256.0×170.0×127.5mm（Does not include protrusions）
# Weight: 563g（battery not included ）
# Power supply: AAA size dry battery x4,
Ni-MH battery x4,
Li-Fe battery (2cell 6.6V)*,
Li-Po battery (2cell 7.4V)*,
(Batteries are sold separately.)
# Current: 200mA or less
# Channel: 4ch (PWM/Serial)
*Maximum setting ID number of serial are different by each products.
# Frequency: 2.4GHz
# Radio Mode: XT
# Model memory 50
# Default Settings:
RF Mode (Transmitter–Receiver): XT Telemetry
Response (Receiver–Servo): NORMAL
# Compatible receiver: KR-420XT, MINI-Z EVO 2 receiver unit for KO compatible transmitter, MINI-Z EVO Receiver Unit EX-NEXT MC-8
*Do not charge the battery with the power on.
*Can not use LCD Xpansion unit EXP-104 series.
*Can not use FHSS or DSSS receiver. (KR-418FH KR-415FHD,KR-210S etc)
*The product photos on this site are prototypes, which may be different to production models.
Made in Japan
Basic Model with a Simple Configuration
This is the basic model of the "EX-NEXT" series, which features ultra-high-speed response enabled by XT technology. By minimizing exterior decoration, we have successfully reduced costs, allowing us to offer this renewed version at a more affordable price. The specifications and functions of the unit remain unchanged, so you can enjoy the high-end performance with ease.
Equipped with Lay Down Trigger (LDT)!
A new idea to lay down the operation axis of the trigger by 90 degrees. This sensation that you can squeeze and press naturally with your fingertips. Ergonomic design that does not disturb the movement of the fingers realizes a seamless and highly linear operation feeling over the entire stroke. Makes accelerator work and braking smoother and more enjoyable. "LDT" is born, which seems to improve Dora Tech for both one and two ranks. This appearance, which is also focused on the quality of operation feeling, takes you to a new dimension. Also, this is adjustable for using by children who has small hands * There are limit by Hand size.
Charge battery by connecting to stand
Balance terminal extension cable is included. You can charge the battery without removing the battery from the transmitter.
*This compatible connecttor is XH (3 pins).* Compatible Battery size (Maximum):88x18x32cm
Equipped with a new standard "XT" that achieves the fastest communication speed in the industry.
EX-NEXT features the newly implemented “XT” system, an evolution beyond the conventional “FHSS.” You can choose between “XT Advanced Mode” for ultra-high-speed response and “XT Telemetry Mode” for bi-directional communication (telemetry) support.
XT Advanced Mode
EX-NEXT has been newly developed with a complete redesign of both its control and communication systems from the ground up. It achieves industry-leading communication speed and ultra-high-resolution precision. In its fastest response mode, "XT Advanced Mode," EX-NEXT delivers approximately three times the communication speed compared to the EX-RR. This performance surpasses even the previously fastest HCS mode.
High-speed communication in the XT advanced mode improves the information density that will be sent to the receivers.
You will feel a "Fine and smooth maneuvering feeling" by unprecedented high-definition and high-resolution control when operating.
*When using the ultra-high-speed XT Advanced Mode, please combine it with either serial-compatible servo “4S” or HCS-compliant "RSx3/BSx3" series servos. Due to the extremely fast communication cycle of the XT Advanced Mode, general servos might experience limitations in their operating angles.
*Although the EX-NEXT main unit is equipped with XT Advanced Mode, the included KR-242XT is for XT Telemetry only. To use XT Advanced Mode, please prepare a separate KR-420XT.
XT Telemetry mode
EX-NEXT is equipped with telemetry (bi-directional communication) functionality. By connecting a serial-compatible “4S” servo to the B/S port of the KR-242XT, “REAL TIME ICS” becomes available. This allows you to adjust servo parameters directly from the transmitter without needing to retrieve the machine. Now you can achieve more refined and uncompromising setups with greater freedom than ever before.
Also, even using the XT Telemetry mode that is 2-way communication, the High-speed response is still faster thanthe EX-RR.
<Includes Telemetry-Only Receiver KR-242XT>
[Specifications]
# Dimensions:256.0×170.0×127.5mm（Does not include protrusions）
# Weight: 563g（battery not included ）
# Power supply: AAA size dry battery x4,
Ni-MH battery x4,
Li-Fe battery (2cell 6.6V)*,
Li-Po battery (2cell 7.4V)*,
(Batteries are sold separately.)
# Current: 200mA or less
# Channel: 4ch (PWM/Serial)
*Maximum setting ID number of serial are different by each products.
# Frequency: 2.4GHz
# Radio Mode: XT
# Model memory 50
# Default Settings:
RF Mode (Transmitter–Receiver): XT Telemetry
Response (Receiver–Servo): NORMAL
# Compatible receiver: KR-420XT, MINI-Z EVO 2 receiver unit for KO compatible transmitter, MINI-Z EVO Receiver Unit EX-NEXT MC-8
*Do not charge the battery with the power on.
*Can not use LCD Xpansion unit EXP-104 series.
*Can not use FHSS or DSSS receiver. (KR-418FH KR-415FHD,KR-210S etc)
*The product photos on this site are prototypes, which may be different to production models.
Made in Japan
Basic Model with a Simple Configuration
This is the basic model of the "EX-NEXT" series, which features ultra-high-speed response enabled by XT technology. By minimizing exterior decoration, we have successfully reduced costs, allowing us to offer this renewed version at a more affordable price. The specifications and functions of the unit remain unchanged, so you can enjoy the high-end performance with ease.
Equipped with Lay Down Trigger (LDT)!
A new idea to lay down the operation axis of the trigger by 90 degrees. This sensation that you can squeeze and press naturally with your fingertips. Ergonomic design that does not disturb the movement of the fingers realizes a seamless and highly linear operation feeling over the entire stroke. Makes accelerator work and braking smoother and more enjoyable. "LDT" is born, which seems to improve Dora Tech for both one and two ranks. This appearance, which is also focused on the quality of operation feeling, takes you to a new dimension. Also, this is adjustable for using by children who has small hands * There are limit by Hand size.
Charge battery by connecting to stand
Balance terminal extension cable is included. You can charge the battery without removing the battery from the transmitter.
*This compatible connecttor is XH (3 pins).* Compatible Battery size (Maximum):88x18x32cm
Equipped with a new standard "XT" that achieves the fastest communication speed in the industry.
EX-NEXT features the newly implemented “XT” system, an evolution beyond the conventional “FHSS.” You can choose between “XT Advanced Mode” for ultra-high-speed response and “XT Telemetry Mode” for bi-directional communication (telemetry) support.
XT Advanced Mode
EX-NEXT has been newly developed with a complete redesign of both its control and communication systems from the ground up. It achieves industry-leading communication speed and ultra-high-resolution precision. In its fastest response mode, "XT Advanced Mode," EX-NEXT delivers approximately three times the communication speed compared to the EX-RR. This performance surpasses even the previously fastest HCS mode.
High-speed communication in the XT advanced mode improves the information density that will be sent to the receivers.
You will feel a "Fine and smooth maneuvering feeling" by unprecedented high-definition and high-resolution control when operating.
*When using the ultra-high-speed XT Advanced Mode, please combine it with either serial-compatible servo “4S” or HCS-compliant "RSx3/BSx3" series servos. Due to the extremely fast communication cycle of the XT Advanced Mode, general servos might experience limitations in their operating angles.
*Although the EX-NEXT main unit is equipped with XT Advanced Mode, the included KR-242XT is for XT Telemetry only. To use XT Advanced Mode, please prepare a separate KR-420XT.
XT Telemetry mode
EX-NEXT is equipped with telemetry (bi-directional communication) functionality. By connecting a serial-compatible “4S” servo to the B/S port of the KR-242XT, “REAL TIME ICS” becomes available. This allows you to adjust servo parameters directly from the transmitter without needing to retrieve the machine. Now you can achieve more refined and uncompromising setups with greater freedom than ever before.
Also, even using the XT Telemetry mode that is 2-way communication, the High-speed response is still faster thanthe EX-RR.
