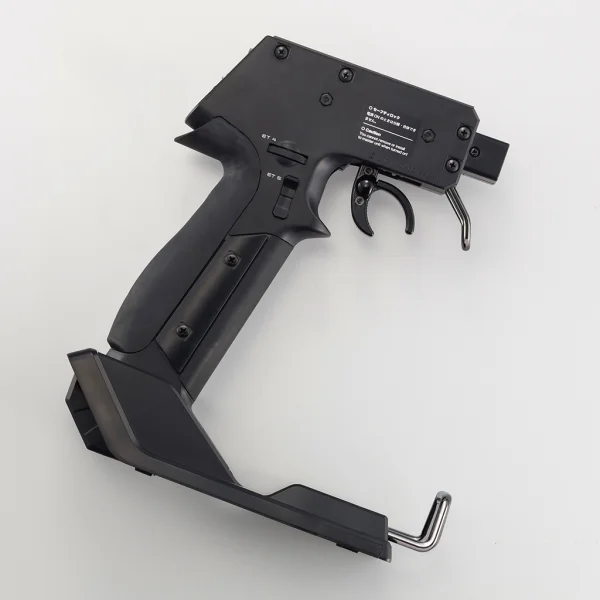

KO Expert Grip Unit2 (Right hand) BASIC

[Compatible models]
Matser Unit EX-NEXT / RR / EX-1 / EX-2 / EX-6 / EX-LDT
*When using the Expert grip unit 2 for the EX-1, EX-2 and EX-6, only the ReturnSpeed
function may not operate correctly. All other functions will operate correctly.

*There is no difference in performance compared to the conventional Expert Grip Unit 2 (Right Hand).

This is a basic model with minimal decorative elements.

Throttle mechanism with more direct feel.
Renovating the form by lengthening the throttle trigger and operational angle. In order to not influence the operational angle, the distance to the finger from the angular sensor has created a more direct feeling while maintaining a compact and comfortable size. With the direct feeling of the throttle/brake reaction when moved, the increase of this linear feeling allows for a smoother and quicker reaction with input on the throttle and brake.

Spring Tension Adjustment.
Trigger spring tension = personal preference. The new trigger unit provides a spring tension adjustment with a screw. This allows for a stronger or softer spring tension according to personal preference.

The long life period of the angle sensor’s smoothness does not change.
The new angle sensor used has proven to give a precise signal and shown durability. Because the signal is very precise, delicate movements are very fluid.
The durability of the new sensor has shown approximately an improvement of 100 times over the past sensor used. Small operation feeling of the fingertip translates into a smooth and linear output to an ESC and servo.

[K.I.Y Compatible]
You can change each unit easily.

Notice
When using the Expert grip unit 2 for the EX-1, EX-2 and EX-6, only the ReturnSpeed function may not operate correctly. All other functions will operate correctly.

Using EX-2,EX-6

Only the ReturnSpeed function may not operate correctly. All other functions will operate correctly.
It can be used by updating to the latest Ver. 2.15. Please update from the following page.
URL:https://www.kopropo.co.jp/en/supports/view/303

Using EX-1

Only the function of Throttle>Return Speed may not operate properly.

Contents
Expert Grip Unit2(Right hand) BASIC x1

Key Info:

• Brand: KO Propo
• Part No: SCH-KO10793
• Barcode: 5051294201937
