Kyosho LED Light Control System for 97054 Series K.97054

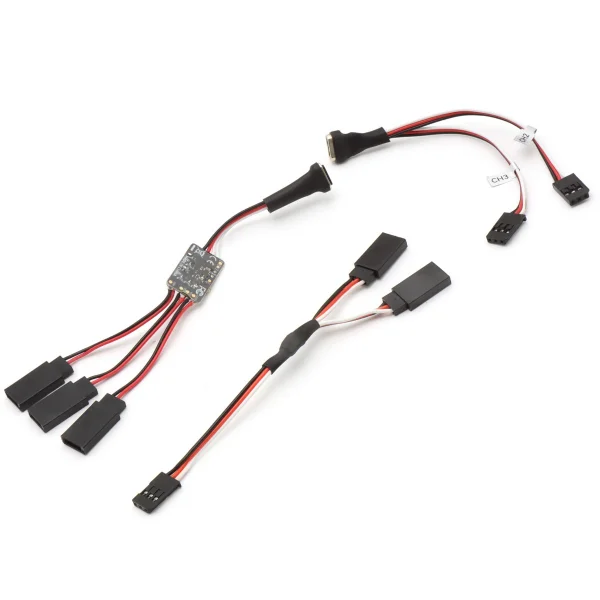

Kyosho LED Light Control System for 97054-xx Series (K.97054) is a controller for the separately sold 97054 LED Light Unit series. When used with compatible lighting units, it varies the brightness of the brake and reverse lights in response to the transmitter throttle trigger.

With a 3-channel transmitter, the system also allows the connected lights to be switched on and off. Suggested compatibility includes the Ultra Scale Body and Ultra Scale Body Plus used with FAZER Mk2 and FAZER D2 series models, helping to create a more detailed scale lighting setup.

Connection Information

The headlight connector supports one lighting system, and the brake light connector also supports one system only. Select the LED unit configuration that matches the required number and type of lights.

Suggested LED Light Units

• Headlights with two LEDs: 97054-2C/2H
• Headlights with four LEDs: 97054-4C/4H
• Brake lights with two LEDs: 97054-2R-B
• Brake lights with four LEDs: 97054-4R-C

When this controller is used with retractable linkage on an AE86, a separate RX Y-connector, Kyosho No. R246-8562, is required.
