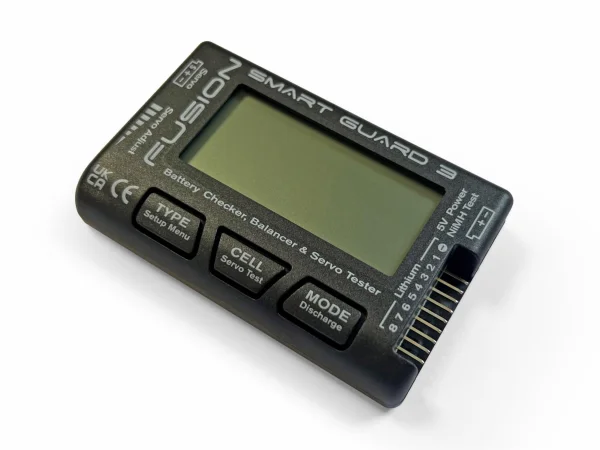

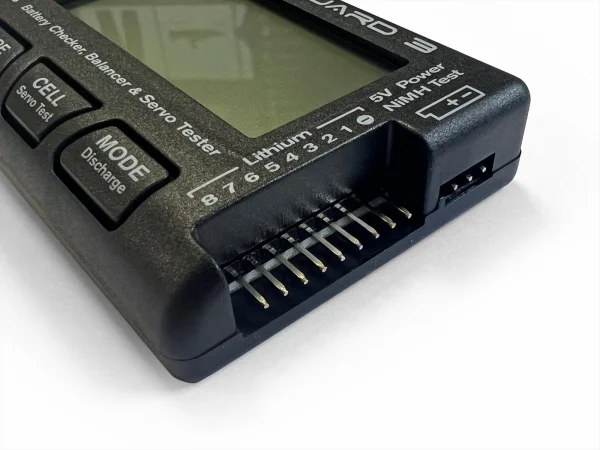

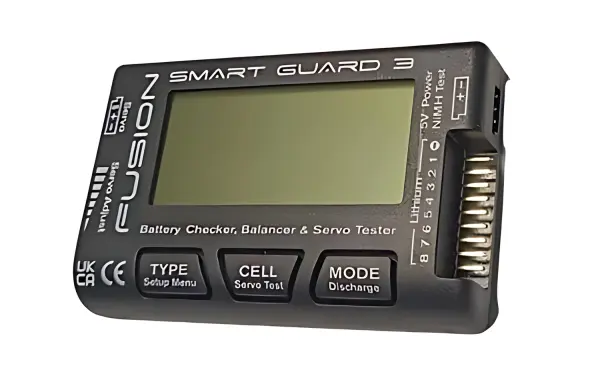

Logic Smart Guard 3 Lithium Battery Checker And Balancer

The Fusion Logic Smart Guard 3 (P-FS-BC07) is a multi-chemistry battery checker and balancer for RC use. It supports LiPo, LiIon, LiFe, NiCd and NiMH packs, providing quick insight into pack condition. View total pack voltage, highest and lowest cell values, the difference between cells, and remaining capacity as a percentage. A lithium balance discharge function helps maintain cell harmony, while built-in servo and ESC test modes aid setup and diagnostics.

Key Features

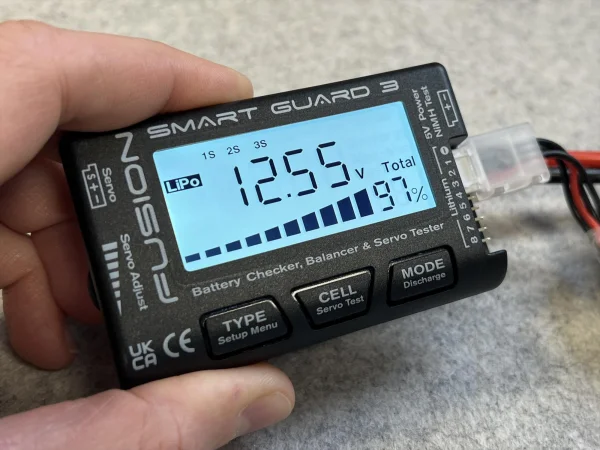

• Displays battery pack information such as total battery voltage, highest cell voltage, lowest cell voltage, voltage difference between highest and lowest cell voltages, and remaining battery capacity as a percentage.
• Lithium Battery Balance Discharge

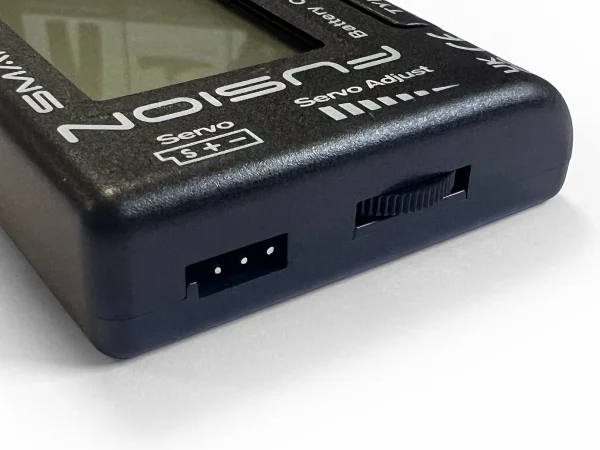

• Servo Test Mode
• ESC Test Mode

Power Requirements

• 2S–8S Lithium or 4–8 cell Nickel batteries: no external power required.
• 1S Lithium battery: requires a 5V external power supply.
• For less than 4-cell Nickel packs: connect power from a 2–8S Lithium battery to operate the device.
