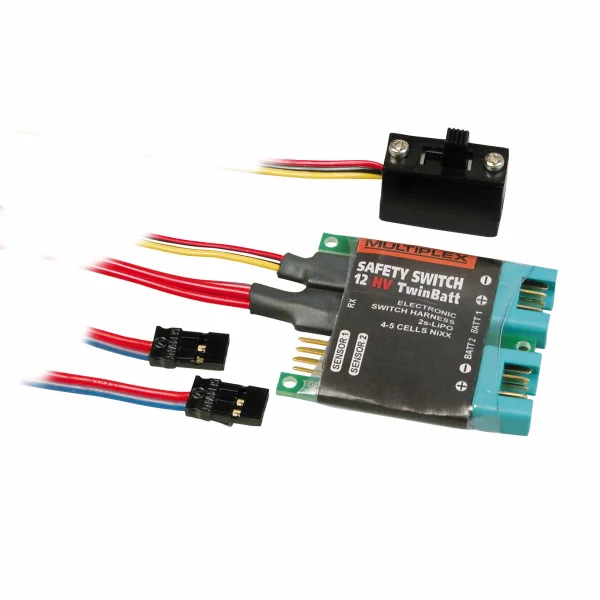

Multiplex Safety-Switch 12HV TwinBatt (MPX85009)

The Multiplex MPX85009 Safety-Switch 12HV TwinBatt is a compact, high-voltage FET switch harness designed for reliable receiver power in demanding RC models. Using vibration-proof SMD technology and low-resistance FETs, it provides fail-safe switching and efficient dual-battery management. Suitable for 4–6 NiXX or 2S LiXX receiver packs, it delivers up to 12 A continuous current with gold-plated connectors and robust cabling for maximum reliability.

Key Features

• High-voltage SAFETY-SWITCH using high-performance, low-resistance FETs
• Small and lightweight; vibration-proof through modern SMD technology

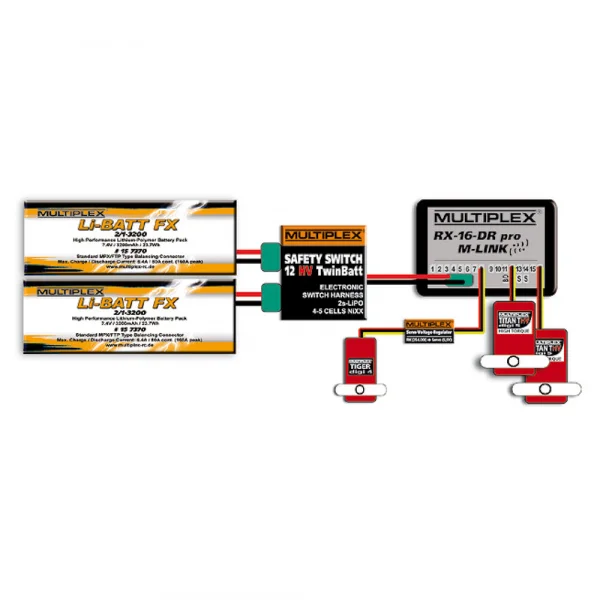

• TwinBatt battery backer: dual power supply with automatic takeover if one battery fails
• 12 A continuous current capability
• Gold-plated, high-quality M6 connectors and large-diameter cables
• Two sensor ports for monitoring both receiver battery voltages (with voltage sensor #8 5400 and second sensor cable #8 5056)
• Includes 2 x UNI receiver leads for connection to the Batt socket and a free power socket (only #8 5009)

Specifications

• Number of cells: 4–6 NiXX / 2S LiXX
• Maximum continuous current: 12 A
• Quiescent current (OFF): 250? A
• Receiver connection: 2 x UNI
• Cable cross-section: 0.33 mm2
• Lead length: 200 mm
• Battery connection: MPX 2 x M6
• Dimensions (L x W x H): 50 x 40 x 10 mm
• Weight (with cable): approx. 35 g
• Extras: 2 sensor connections / integrated battery switch

Suggested Compatibility & Telemetry

• Suggested compatibility includes Multiplex M-LINK RX-9/12/16-DR and M-DS/M-PCM RX-9/12-SYNTH PCM receivers via the M6 connector system.
• Supports separate voltage readout of two receiver batteries when used with the Multiplex voltage sensor (#8 5400) and an additional sensor cable (#8 5056).
