Multiplex SMART SX 9 FLEXX M-LINK Set with RX-5 (MPX15303)

• SMART SX 9 FLEXX M-LINK Set


• 9-ch (in conjunction with a receiver RX-4/9 FLEXX & FFLEXX Multiswitch


• 50 model memory ID (ID set at receiver RX-4/9 FLEXX)


• Compatible with all M-LINK receivers


• ID = Automatic model recognitio


• IOAT: new, patented antenna technology (with a range of about 3 miles)


• Long operating time up to 25 hours


• update bar via integrated interface (USB cable 85149 and MPX Launcher

SMART SX 9 FLEXX M-LINK Set

Take control with M-LINK !
If a traditional German company that stands for quality, system solutions, service and sustainability, developing a new remote control for the function modeler, then the result is something special. A whole system. Multi-functions for full control in the world of RC boats, trucks, crawlers and tracked vehicles, to name just a few applications here.

The SMART SX 9 FLEXX M-LINK 2.4 GHz is the intelligent 9-channel remote control function for the modeling! Immerse yourself in the world of M-LINK , the ultra-modern and highly secure 2.4 GHz transmission system. M-LINK products is compatible with one another. A system from one source! From the super small 3g receiver to professional 16 channel receiver, telemetry data in real time ( MSB ), speech system and programmable multi-function modules coupled in a bus system, to quote just a few of the possibilities.

The SMART SX 9 FLEXX M-LINK Set (# 1 5303) includes a 5-channel receiver RX-5 M-LINK ID 1, and thus has an optimized and comfortable use of models with common multi-function units (eg MFC-01). In addition, you can use a completely flexible allocation concept that will inspire the function modeler to completely new solutions in the model.

With the SMART SX 9 FLEXX M-LINK can be very comfortable RC Truck and RC tank models with multi-function units (eg MFC-01) control. No more adjusting the trim more to control certain functions.

In the SMART SX 9 FLEXX M-LINK everything works very simple and direct. Light on-off per stick pressure and you can switch his truck transmission via a rocker switch as in a sequential 3-speed gearbox. Everything goes with ease. Optional are available for users of Tamiya truck or tank models attractive station sticker with printed assignments.

The SMART SX 9 FLEXX M-LINK has the patented automatic model identification ID.
50 ID model memory available. The remote controller detects the different MULTIPLEX ID_addressee and managed automatically. That is, simply turn on the transmitter, switch model and the SMART SX 9 FLEXX M-LINK know which model is to be controlled. Any modification or trimming is automatically saved.
To save the channel SMART SX 9 FLEXX M-LINK To use as a 9-channel transmitter for functional models, you need a 9-channel M-LINK receiver.
We recommend the optional 9-Channel Receiver RX-4/9 FLEXX M-LINK ID (# 5 5837).
The special features of the RX-4/9 FLEXX are Adjustable ID, max. 4 proportional channels, max. 9 Switching channels in conjunction with the switching modules Multiswitch FLEXX #7 5888
These switching modules can be connected in any quantity in a bus system to the 9-Channel Receiver RX-4/9 FLEXX.

Features

• 9-channel (in conjunction with a receiver RX-4/9 FLEXX and FLEXX Multiswitch)
• 50 model memory ID (ID set at receiver RX-4/9 FLEXX)
• Compatible with all M-LINK receivers
• ID = Automatic model recognition
• IOAT: new, patented antenna technology (with a range of about 3 miles)
• Implementation of almost all RC models on the market possible (trucks, tanks, cars, ships)
• 2.4 GHz M-LINK : Lots of models can be operated simultaneously without interference
• Servo reverse easily adjustable
• Digital steering trim
• buzzer for audible feedback: trimming, transmitter battery, function keys
• update bar via integrated interface (USB cable # 85149 and MPX Launcher )
• Long operating time up to 25 h

Set Includes

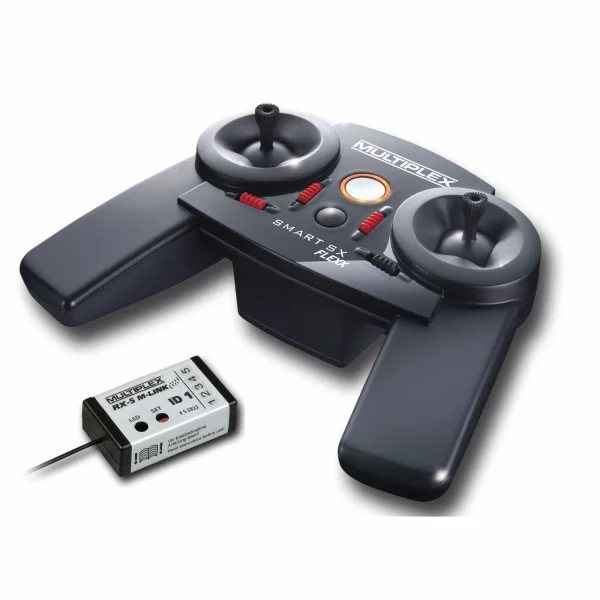

SMART transmitter SX 9 FLEXX M-LINK , RX-5 ID1 M-LINK , 3 AA batteries for the transmitter, detailed instruction manual

Key Info:

• Brand: Multiplex
• Part No: MPX15303
• Barcode: 4041033063033
