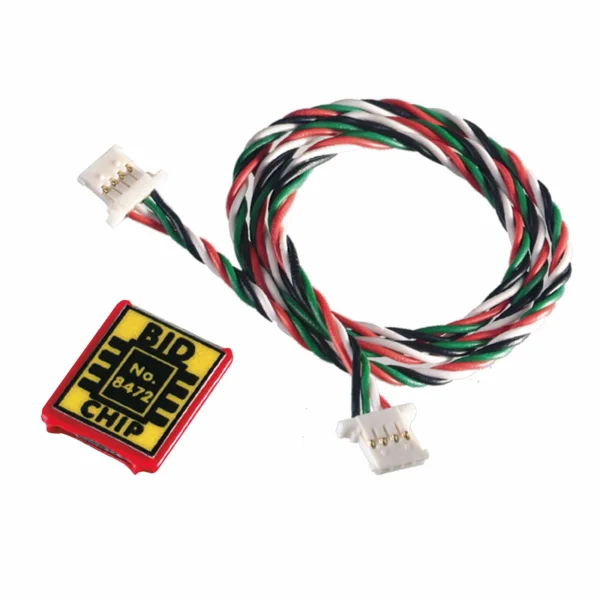

Multiplex POWER PEAK BID Chip 300mm Cable
Brand: Multiplex
Part No: MPX308473
Out of stock
Request Stock NotificationFinance options available at checkout.
Fits These Models (1)
Show all 1 models
Customers Also Buy
Popular with customers who buy products like the Multiplex POWER PEAK BID Chip with cable 300mm
Description
The Multiplex POWER PEAK BID Chip with cable 300mm (MPX308473) is a lightweight identification key for the ROXXY BID system. Paired with a battery and connected to a BID-enabled charger, it supplies the correct parameters and records usage data for optimal and safe charging and discharging.
How It Works
Assign the small BID chip to a battery, then link the chip and battery to a POWER PEAK BID charger. The charger reads the stored data to set charging/discharging automatically.
Stored Charge/Discharge Settings
- Battery type (NC, NiMH, Lilo, LiPo, LiFe, Lead)
- Cell count
- Battery capacity
- Charge capacity
- Discharge current
- Date (e.g. first use)
- Delta peak cut-off voltage
- Shutdown temperature
Data Logged Per Cycle
- Current charged capacity
- Current discharged capacity
- Maximum charged capacity
- Maximum discharged capacity
- Number of charge cycles
Tech Specs
- Cable length: 300 mm
- Age recommendation: 14+
- Colour: Assorted
Suggested Compatibility
Suggested compatibility: Multiplex POWER PEAK BID chargers and ROXXY EVO batteries using the ROXXY BID system.
Secured by Stripe
Specifications

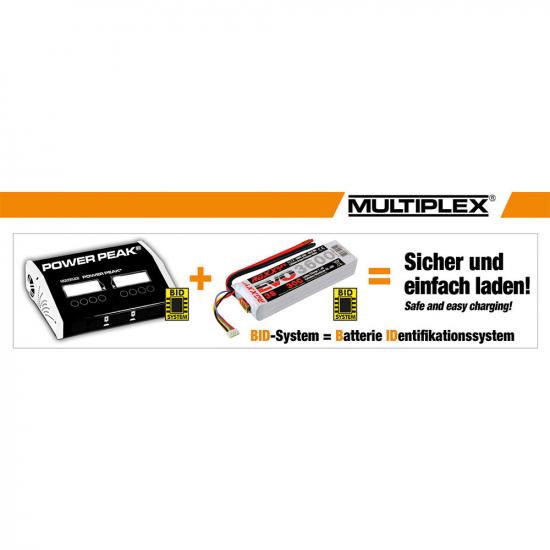

BID system = battery identification system.
The unique ROXXY® BID chip technology for easy handling on POWER PEAK® chargers isintegrated as standard in almost all ROXXY® EVO batteries.
Function:
Each battery is assigned a small, light BID chip that stores all relevant data foroptimal and safe charging/discharging of the battery. For charging and discharging, theBID chip and the battery are connected to a BID charger. The BID system now gives thePOWER PEAK® BID loader the correct parameters.
The following load settings are stored in the BID chip/key:
- Battery type (NC, NiMH, Lilo, LiPo, LiFe, Lead)
- Cell Count
- Battery capacity
- Charge capacity
- Discharge current
- Date (e.g. first use)
- Delta peak cut-off voltage
- Shutdown temperature
The following data is stored in the BID chip/key with each loading process:
- Currently invited capacity
- Current discharged capacity
- Maximum charged capacity
- Maximum discharged capacity
- Number of charged cycles
Multiplex POWER PEAK BID Chip with cable 300mm Tech Specs:
- Age Recommendation: 14+
- Colour: Assorted
Key Info:
- Brand: Multiplex
- Part No: MPX308473
- Barcode: 4041033044735
