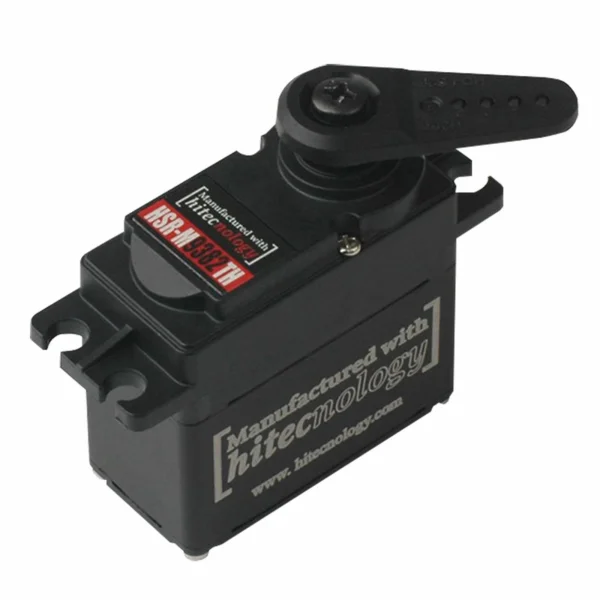

Multiplex Servo HSR-M9382TH 360deg Proportional control

360° brushless servo with magnetic encoder

Based on our unique brushless servos with extremely low power consumption andnoiseless control, we have developed this 360° rotating servo. Instead of thewell-known servo standard travel of 120° (±60°), or even the extension of our digitalservos to 180°, this servo can do a real 360°, ± 180 ex works!

And thanks to the 32-bit microcontroller, very precise positioning is possible, asif the servo were only doing the normal servo travel.

The drive shaft with double ball bearings, the titanium gear, the brushless motorand the magnetic encoder are a clear indication of the longevity of this special servodesign.

This makes the servo HSR-9382TH ideal for applications in the field of robotics,industry and model making.

Over the wide working range of 4.8 - 8.4 volts, the servo delivers a constant torqueof 34 kgcm

• Programmable 12-bit digital PWM microcontroller
• Magnetic encoder
• High performance brushless motor
• Noiseless, no whistling when controlling the motor as is usual with digital servos
• Low power consumption, very high energy efficiency
• Constant torque over the entire voltage range
• Protection class IP65
• 25 splines on the output
• 360° proportional rotation possible

Multiplex Servo HSR-M9382TH 360deg Proportional control Key Features:

• Setting the direction of rotation (clockwise/counterclockwise)
• Setting the backlash
• Set the speed (slower)
• Set Soft Start
• Setting the fail-safe function
• Setting the overload protection
• Save or load data
• Factory reset

Multiplex Servo HSR-M9382TH 360deg Proportional control Tech Specs:

• Age Recommendation: 14+
• Colour: Black
• Material: Plastic

• Brand: Multiplex
• Part No: MPX1-01251
• Barcode: 4059818012510
