Description

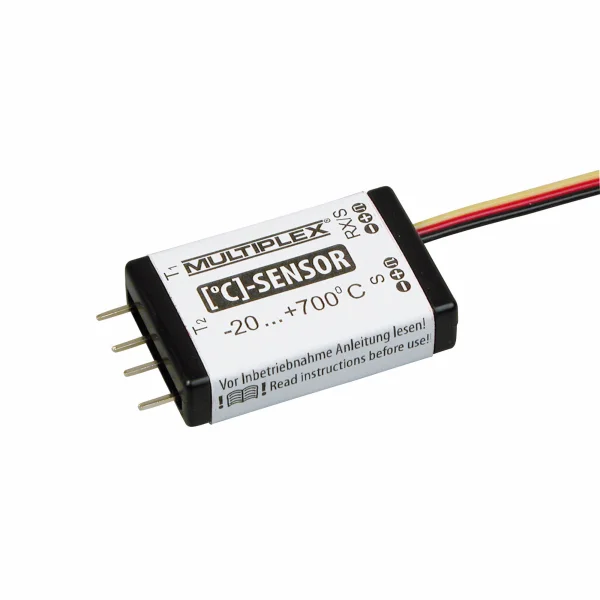

The Multiplex MPX85402 Temperature Sensor is an MSB telemetry sensor for receivers, designed to monitor temperatures up to 700°C (depending on the temperature probe used). Configure via MULTImate (# 8 2094) or the Sensor DataManager PC program. A second measuring channel can be activated by configuration and by connecting an additional temperature sensor. Developed and built in Germany.
Key Features
- Measures temperatures up to 700°C (probe dependent)
- MSB intelligent sensor bus; up to 16 sensors can be connected in series
- No additional sensor box required
- Second temperature channel available after activation and with an extra sensor
- Suggested compatibility with Multiplex MSB telemetry receivers and systems
Configuration Options
- Address: select the display line on the transmitter
- Alarm high: upper temperature threshold for transmitter alarm
- Alarm low: lower temperature threshold for transmitter alarm
- Option: output minimum, average or maximum temperature
- Equivalent options available for the second measuring channel
Tech Specs
- Shipping Weight: 0.04 kg (0.09 lb)
- Age Recommendation: 14+
- Colour: Black
Secured by Stripe
Multiplex Temperature Sensor For Receivers Ml 85402 Manuals & Guides
Manuals & Guides
Specifications
Measures temperatures up to 700°C, depending on the temperature probe used. After activating the second measuring channel with the MULTImate (# 8 2094) or using the "Sensor DataManager"** PC program and connecting an additional temperature sensor (optional), a second temperature can be recorded. The MULTIPLEX MSB sensor was developed and built in Germany.
Can be activated or set using MULTImate or "Sensor DataManager"**:ul>
MSB = MULTIPLEX sensor bus
- Intelligent sensors with sensor bus system (MSB)
- Up to 16 sensors can be connecting in series
- No additional sensor box required
Multiplex Temperature Sensor For Receivers Ml 85402 Tech Specs:
- Shipping Weight: 0.04kg / 0.09lbs
- Age Recommendation: 14+
- Colour: Black
Key Info:
- Brand: Multiplex
- Part No: MPX85402
- Barcode: 4041033084021
