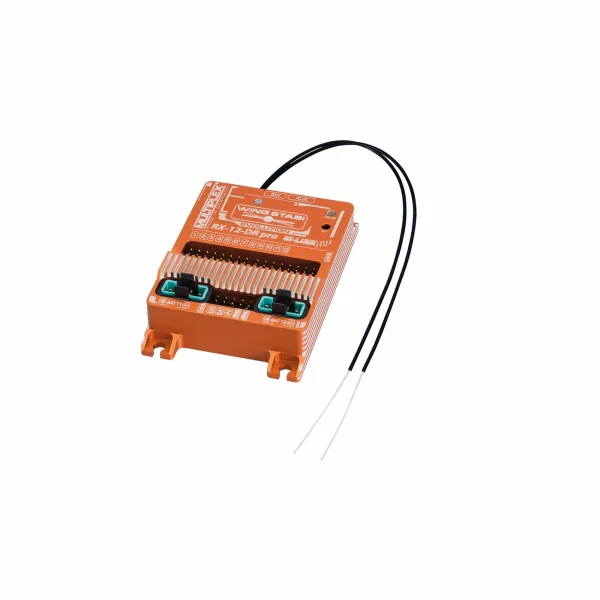

Multiplex Wingstabi Evolution 12ch M-LINK

The next evolution in flight stabilization from Surface models from Multiplex - Made in Germany For the development of the WINGSTABI Evolution, we have been able to create an enormous database of a wide variety of flight models over the years. The WINGSTABI Evolution is the logical consequence of this and raises the product to a new level. The control has been fundamentally optimized in terms of performance, latency and the basic settings. All previous WINGSTABI systems can be updated to the Evolution software free of charge and without restrictions. The WINGSTABI Evolution can now be used directly from the pack with high performance and without any problems on almost all flight models. A large number of new innovations and functions are also included in the WINGSTABI Evolution software that now leaves nothing to be desired.

Multiplex Wingstabi EVOLUTION 12ch M-LINK Key Features:

• A greatly improved basic setup to fly straight away
• Introduction of the optional speed-dependent control for optimal performance in every flight condition
• Introduction of a stop function for a natural and smooth action of the flight stabilization
• Possibility of two-receiver operation via SRXL for total safety on every flight
• Support for 8-flap wings, canards, optimized FAIL-Safe and much more. Compatible with all popular RC systems | Compatible with all common RC systems Jeti (EX-Bus, UDI) Graupner (SUMD) Futaba (S.BUS) FrSky (S.BUS) Spectrum (SRXL) HiTEC (MAXIMA SL, OPTIMA SL) Weatronic (PPM) MULTIPLEX (SRXL) CORE (S.BUS, SRXL) Differentiation WINGSTABI Evolution EasyControl and WINGSTABI Evolution Classic EasyControl
• As before, the model is completely programmed on the transmitter (deflections, flaps, expo, flight phases...)
• We need a free channel to which we assign a free proportional control
• Very easy setup even without a PC Classic
• The model is almost completely programmed in WINGSTABI (deflections, mixers, flaps)
• We need a free 3-step switch and at least one free proportional control
• Extensive setup on the PC or via APP Each new Wingstabi Evolution is always delivered as "Evolution EasyControl" as standard and can be used free of charge via the MPX Launcher if required be reconfigured to become an "Evolution classic". The WINGSTABI Evolution has an unbeatable price-performance ratio. Try it out and join us in the 21st century of model flying! (Speed compensation via Pitot tube or GPS Patent: DE 10 2013 201 554 B3 PowerboxSystems) WINGSTABI EVOLUTION -12/16-DR M-LINK Freely programmable 3-axis gyro system with integrated MULTIPLEX receiver RX-7/9 DR per M-LINK for all RC fixed-wing models.
• Integrated M-LINK receiver including telemetry
• Optimized high-end control behaviour
• Optional speed-dependent control
• Receiver diversity support
• Plug & Play setup possible without a PC
• Programming also possible via PC or Android app
• Up to 4 freely configurable flight/control phases
• 7/9 servo outputs
• Free channel assignment
• Individual setting for each servo (5-point curve, frequency, expo, fail-safe)
• Diversity possible For our MULTIPLEX users we offer a solution with an integrated M-LINK receiver. Packed in a design housing made of anodized aircraft aluminium, it features the latest RX-DR pro receiver technology

Multiplex Wingstabi EVOLUTION 12ch M-LINK Tech Specs:

• Age Recommendation: 14+
• Colour: Orange

• Brand: Multiplex
• Part No: MPX550161
• Barcode: 4041033131619
