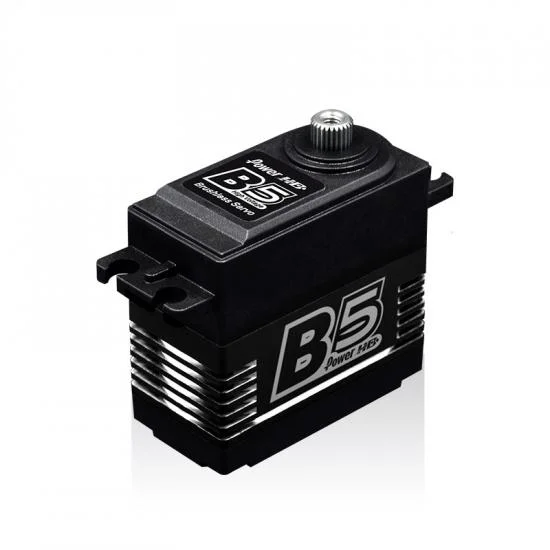

Power HD B5 Brushless HV Servo 20kg 0.066s (HD-B5)

The Power HD B5 Brushless HV Servo (HD-B5) pairs high torque with rapid transit speed in a standard-size case. Delivering up to 20.0 kg-cm and 0.066 sec at 7.4V, it features a brushless motor, titanium/aluminium gear train and dual ball bearings for precise, durable control. Operating from 6.0–8.4V, it is LiPo compatible and well suited to demanding steering duties.

Technical Specifications

• Torque: 16.0 kg-cm (236.0 oz-in) @ 6.0V; 20.0 kg-cm (277.7 oz-in) @ 7.4V
• Speed: 0.085 sec @ 6.0V; 0.066 sec @ 7.4V
• Operating voltage: 6.0–8.4V DC (HV / LiPo compatible)
• Motor type: Brushless
• Gear type: Titanium & aluminium
• Bearings: Dual ball bearings
• Working frequency: 1520 μs / 333 Hz
• Operating temperature: -20°C to 60°C
• Size: 40.7 x 20.5 x 38.5 mm (1.6 x 0.80 x 1.51 in)
• Weight: 60.0 g (2.12 oz)

Suggested Compatibility

• Steering duties on 1/10 buggies
