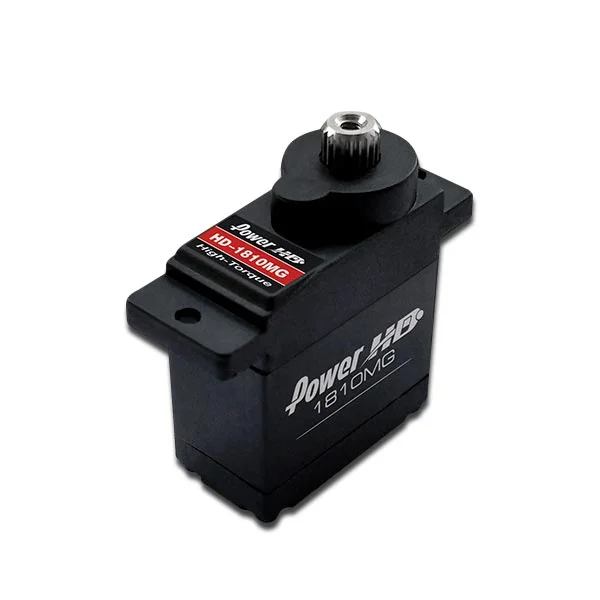

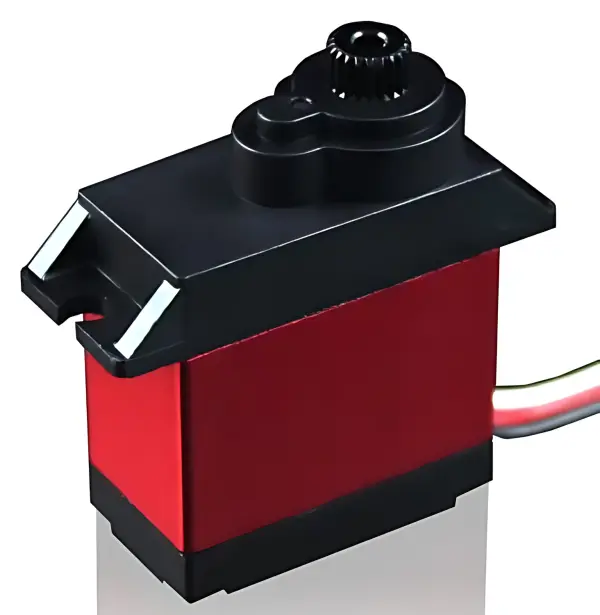

Power HD HD1810MG Digital Mini Servo - 3.9Kg 0.13s

The Power HD HD1810MG (part HD-1810MG) is a compact digital mini servo offering quick transit and consistent torque in a small footprint. Delivering up to 3.90 kg-cm at 6.0V with a 0.13 s speed (0.16 s at 4.8V), it combines a copper gear train with a single ball bearing for smooth output. Weighing just 15.8 g and measuring 22.8 x 12.0 x 29.4 mm, it suits installations where space and weight are at a premium.

Key Specifications

• Torque (4.8V): 3.10 kg-cm (43.05 oz/in)
• Torque (6.0V): 3.90 kg-cm (54.16 oz/in)
• Speed: 0.16 sec (4.8V) | 0.13 sec (6.0V)
• Operating voltage: 4.8–6.0 V DC
• Weight: 15.8 g (0.56 oz)
• Bearing type: Ball bearing x 1
• Motor type: DC Motor
• Gear type: Copper
• Connector wire length: JR 250 mm
• Operating temperature: -10°C to 50°C
• Working frequency: 1520 μs / 250 Hz
• Size: 22.8 x 12.0 x 29.4 mm (0.90 x 0.47 x 1.16 in)
