RadioLink Mini Pixhawk Flight Controller RLKA001004
Brand: RadioLink
Part No: RLKA001004
£113.99
RRP £119.99
Shadow Stock: Usually ships next day
Finance options available at checkout.
Frequently Bought With
Other items customers often buy with the RadioLink Mini Pixhawk Flight Controller
Description

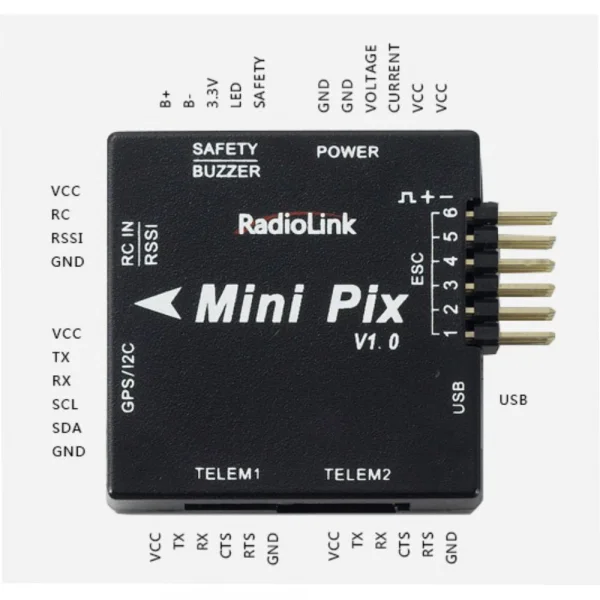

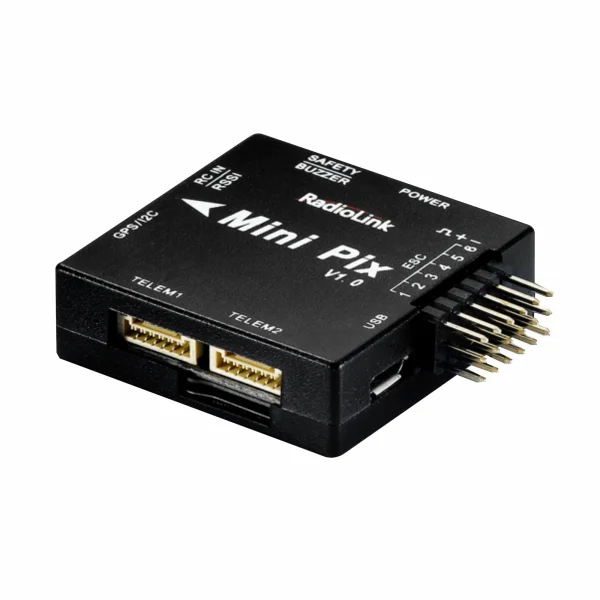

The RadioLink Mini Pixhawk Flight Controller (RLKA001004) delivers Pixhawk-class functionality in a compact 39 x 39 mm form factor weighing just 14 g. Built around the STM32F405VGT6 processor with MPU6500 gyro, QMC5883L compass and LPS22HB barometer, it offers reliable sensing and JST-GH connectivity for neat, lightweight builds.
Key Features
- Same function as Pixhawk in a mini footprint
- Same size as an F4 board (approx. 39 x 39 mm)
- Vibration dampening by software
- Processor: STM32F405VGT6
- Gyro: MPU6500
- Compass: QMC5883L
- Barometer: LPS22HB
- Connector: JST GH
- Mavlink UART: 2 with CTSRTS
- GPS UART: 1
- RC In signal input: PPM / SBUS
- RSSI signal strength input: PWM / 3.3 V
- I2C: 1
- PWM: 6 one shot / PWM output
- Buzzer: 1
- Switch: 1
- Power: 1
- PM operating voltage: 5.1 V
- USB voltage: 5 V ±0.3 V
- Servo voltage: does not support input
- Operating temperature: −40 to 80 °C
Suggested Compatibility
- Fixed wing
- 3–6 multicopter
- Helicopter
- Cars
- Boats
Weights & Dimensions
- Weight: 14 g (0.49 oz)
- Shipping weight: 0.08 kg (0.17 lb)
- Width: 39 mm (1.54 in)
- Length: 39 mm (1.54 in)
Secure Payments
Secured by Stripe
RadioLink Mini Pixhawk Flight Controller Manuals & Guides
How-To Guides & Articles
Specifications
Key Features
- Same function as Pixhawk
- Same size as F4 board
- Vibration dampening by software
- Processor: STM32F405VGT6
- Gyro: MPU6500
- Compass: QMC5883L
- Barometer: LPS22HB
- Connector: JST GH
- Mavlink UART: 2 with CTSRTS
- GPS UART: 1
- RC In signal input: PPM / SBUS
- RSSI signal strength input: PWM / 3.3v
- 12C :1
- PWM input: 6 one shot / PWM output
- Buzzer: 1
- Switch: 1
- Power: 1
- Compatible models: fixed wing / 3-6 multicopter / helicopter / cars / boats
- PM operating voltage: 5.1v
- USB voltage: 5v +- 0.3v
- Servo voltage: does not support input
- Temperature: -40 / 80c
Weights & Dimensions
| Weight | 14g | 0.49oz |
| Shipping Weight | 0.08kg | 0.17lbs |
| Product Width | 39mm | 1.54in |
| Product Length | 39mm | 1.54in |
Key Info:
- Brand: RadioLink
- Part No: RLKA001004
- Barcode: 5051121229486
