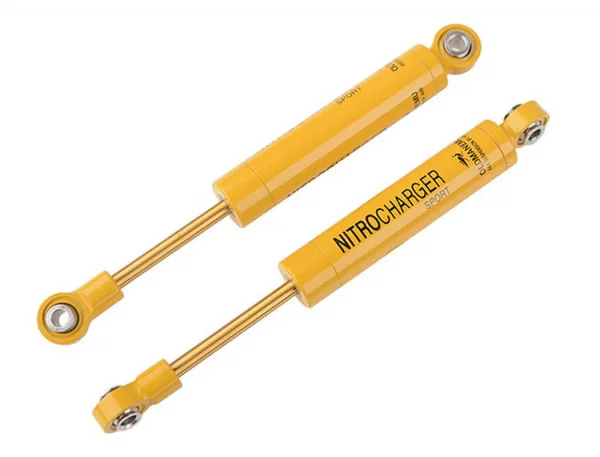

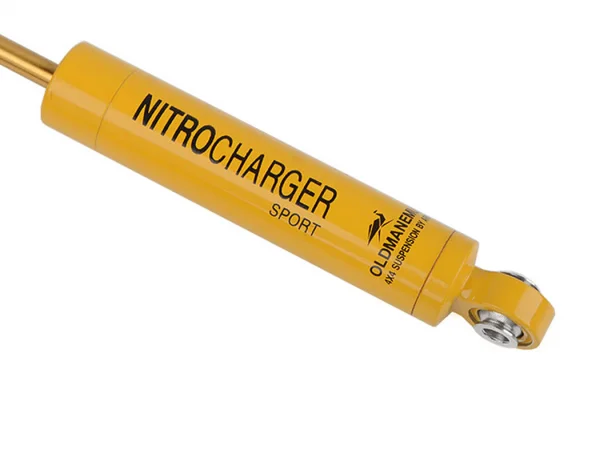

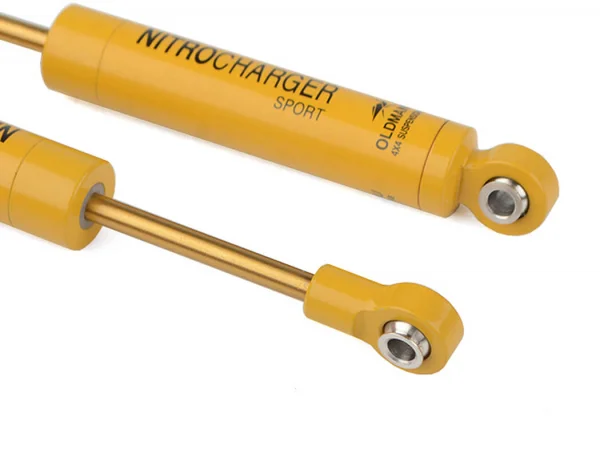

RC4WD Old Man Emu Nitrocharger Sport Shocks 90mm (Z-D0007)

RC4WD’s licensed Old Man Emu Nitrocharger Sport Shocks by ARB 4x4 Accessories deliver smooth, consistent damping thanks to new X-ring technology that reduces friction and improves oil retention. Precision-machined from billet aluminium with a yellow powder-coated finish, these 90mm internal-spring shocks feature titanium nitride coated shafts and come ready to handle the trails. Part number Z-D0007.

Features

• Machined billet aluminium
• Yellow powder coated finish
• Internal spring design
• X-ring gaskets
• Titanium nitride coated shock shafts

Specifications

• Hole to hole (compressed): 2.63in / 67mm
• Hole to hole (uncompressed): 3.54in / 90mm
• Overall length: 3.91in / 99.4mm
• Travel length: 0.90in / 23mm
• Shock body OD: 0.39in / 10mm
• Shaft OD: 0.11in / 3.0mm
• Weight (each): 0.40oz / 11.4g

What’s Included

• 2 x RC4WD Old Man Emu Nitrocharger Sport Shocks by ARB (90mm)

Suggested Compatibility

• RC4WD Trail Finder 2 "LWB" 1/10 Scale Builders Kit (Z-K0065)
• RC4WD Trail Finder 2 Truck 1/10 Scale Builders Kit (Z-K0069)
• RC4WD Trail Finder 2 Truck Kit w/1982 Toyota Pickup Hard Body Complete Set (Z-K0070)
• RC4WD Marlin Crawler Trail Finder 2 RTR w/Mojave II Crawler Body Set (Z-RTR0034)
• RC4WD Trail Finder 2 RTR w/1985 Toyota 4Runner Hard Body Set (Red) (Z-RTR0063)
• RC4WD Trail Finder 2 "LWB" RTR w/ 1987 Toyota XtraCab Hard Body Set (White) (Z-RTR0064)
• RC4WD Trail Finder 2 "LWB" RTR w/ Chevrolet K10 Scottsdale Hard Body Set (Black) (Z-RTR0067)
• RC4WD Trail Finder 2 RTR w/Chevrolet Blazer Body Set (Midnight Edition) (Z-RTR0068)
• RC4WD Trail Finder 2 RTR w/1982 Toyota Pickup Hard Body Set (Blue) (Z-RTR0069)
• RC4WD Trail Finder 2 RTR w/1982 Toyota Pickup Hard Body Set (Red) (Z-RTR0070)

Notes

• Use blue (medium) thread lock on the bottom shock shaft rod end before installing to help keep it in place.
• The new X-ring shocks are designed to be oil filled for smooth damping.
