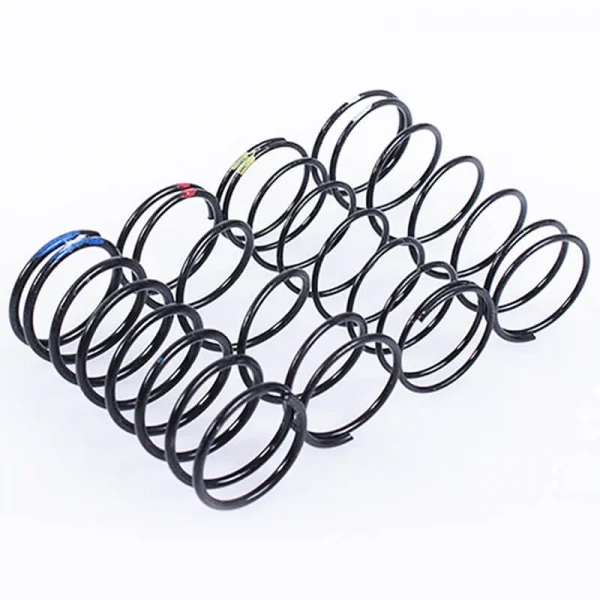

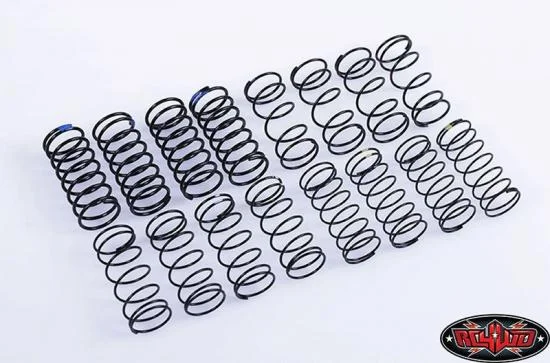

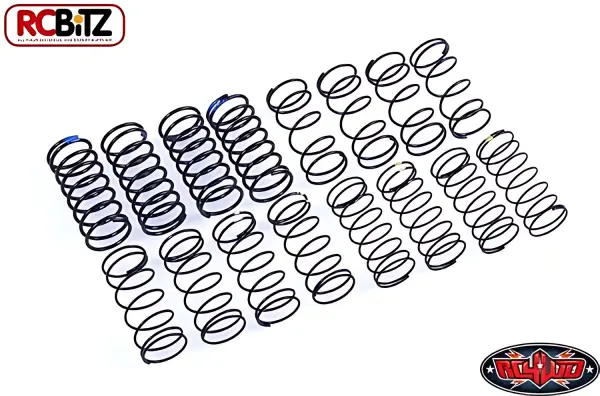

RC4WD 90mm Rock Krawler RRD Shock Spring Assortment

The RC4WD 90mm Rock Krawler RRD Shock Spring Assortment (Z-S1189) provides four spring rates for tuning Rock Krawler 90mm shocks. Each black spring features a small colour mark at the base to identify its rate quickly.

Key Specifications

• Length: 1.29in / 34mm
• Inside diameter (ID): 0.49in / 12.6mm
• Outside diameter (OD) by rate: Blue 0.59in / 15.2mm; Red 0.57in / 14.6mm; White 0.56in / 14.3mm; Yellow 0.55in / 14.1mm
• Weight: 1.05oz / 30g
• Quantity: enough for one pair

What’s Included

• 4x Black 90mm Shock Spring (2.0 spring rate “Blue”)
• 4x Black 90mm Shock Spring (1.6 spring rate “Red”)
• 4x Black 90mm Shock Spring (0.8 spring rate “White”)
• 4x Black 90mm Shock Spring (0.4 spring rate “Yellow”)

Suggested Compatibility

• RC4WD Rock Krawler 90mm shocks
• RC4WD Rock Krawler RRD Emulsion Scale Dual Spring Shocks (90mm) (Z-D0052)

Notes

• Each spring has a small colour marking on the bottom to determine the spring rate.
