RC4WD Aluminium Mini M3 Rod End with Steel Ball (10)
RC4WD Aluminium Mini M3 Rod End with Steel Ball (10)
RC4WD Aluminium Mini M3 Rod End with Steel Ball (10)
RC4WD Aluminium Mini M3 Rod End with Steel Ball (10)
Clearance

RC4WD Z-S1555 Aluminium Mini M3 Rod Ends (10)

Brand: RC4WD

Part No: Z-S1555

£18.19 RRP £25.99

Usually ships same day

UK Delivery
Get it by Monday 16th Nov (Order within 17h 3m)
Store Collection (Cannock)
Tomorrow

Finance options available at checkout.

Request Price Match Ask a Question Write a Review

Customers Also Buy

Popular with customers who buy products like the RC4WD Aluminium Mini M3 Rod End with Steel Ball (10)

RC4WD Synthetic Winch Rope RC4WD Synthetic Winch Rope
£5.93
RC4WD 4pc Precision Metric Hex/Nut Driver Set RC4WD 4pc Precision Metric Hex/Nut Driver Set
£23.75
RC4WD Driver Figure Moulded Parts Tree RC4WD Driver Figure Moulded Parts Tree
£22.76
RC4WD Bully 2 Gear Set RC4WD Bully 2 Gear Set
£54.44
RC4WD M3 x 5mm Set Screw 10 Grub Screws for pinion gears TF2 G2 RC RC4WD M3 x 5mm Set Screw 10 Grub Screws for pinion gears TF2 G2 RC
£3.46
RC4WD ARB Winch Strap Set RC4WD ARB Winch Strap Set
£15.83
RC4WD Rock Crusher M/T Brick Edition 1.2 Scale Tires RC4WD RC4WD Rock Crusher M/T Brick Edition 1.2 Scale Tires RC4WD
£18.80
RC4WD 1:10 Traffic Cones RC4WD 1:10 Traffic Cones
£16.82

Description

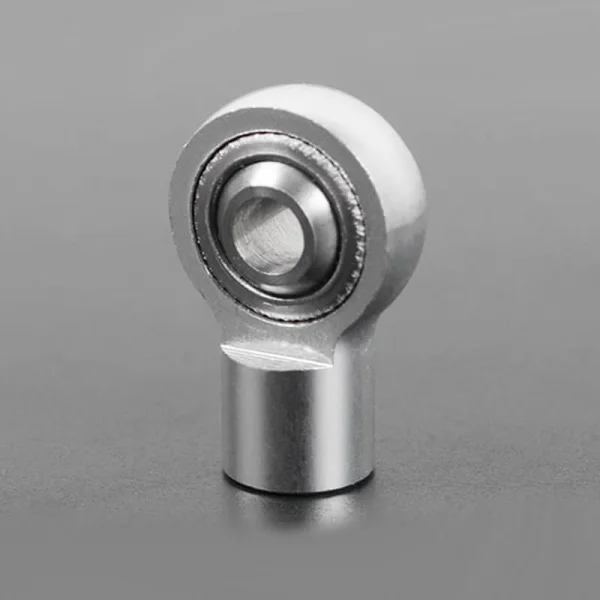

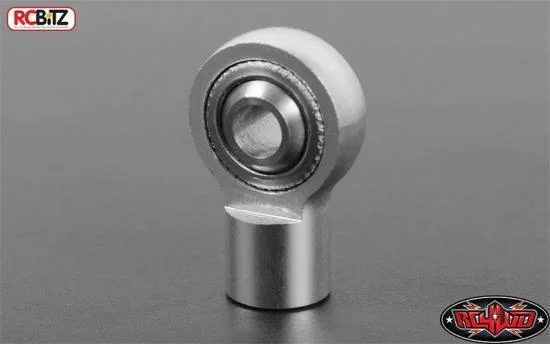

The RC4WD Aluminum Mini M3 Rod End with Steel Ball (10), part Z-S1555, provides compact, durable linkage hardware. Each rod end is CNC-machined from aluminium and comes preinstalled with a stainless steel ball. Designed to work with 3mm shafts and 3mm threaded shafts, they offer a tidy solution for precise connections in small-scale applications.

Specifications

  • Manufactured and engineered by RC4WD USA

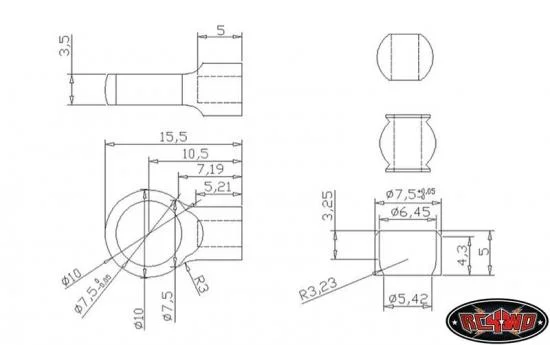

  • Approx. 14mm length; 5.6mm diameter (shaft area); 9mm diameter (ball area)
  • Centre hole to end of the ball end: 4mm and 10mm
  • Ball hole: 3.1mm
  • CNC-machined aluminium construction
  • Preinstalled with a stainless steel ball
  • Fits 3mm threaded shaft

Suggested Compatibility

  • Shocks that have a 3mm shaft

What’s Included

  • 10x Aluminum Mini M3 Rod End with Steel Ball
Free Shipping

On UK Orders over £100
Happy to Help

Helpful, friendly advice
28 Day Returns

Easy returns process
Secure Payments

Secured by Stripe

Specifications

Aluminum Mini M3 Rod End with Steel Ball (10)

Works for with any Shocks that has a 3mm Shaft!


Specifications:
  • Manufactured & Engineered by RC4WD USA
  • 14Lmm ong & 5.6mm Diameter (Shaft Area) & 9mm Diameter (Ball Area)
  • Center Hole to End of the Ball End is 4mm and 10mm
  • Ball Hole is 3.1mm
  • CNC Machined Rugged Aluminum Construction
  • Preinstalled with a Stainless Steel Ball
  • Fit 3mm Threaded Shaft

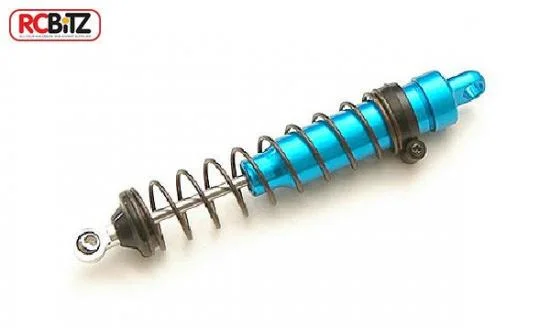

Shown installed on a Hot Bodies Shocks (Not Included):

What's Included:

  • 10x Aluminum Mini M3 Rod End with Steel Ball
Click here to see our full line of rod end specification comparison list.


Key Info:
  • Brand: RC4WD
  • Part No: Z-S1555
  • Barcode: 639302608777
