RC4WD Baer Brake System Rotor Set 2.2/1.9 (Z-S1963)

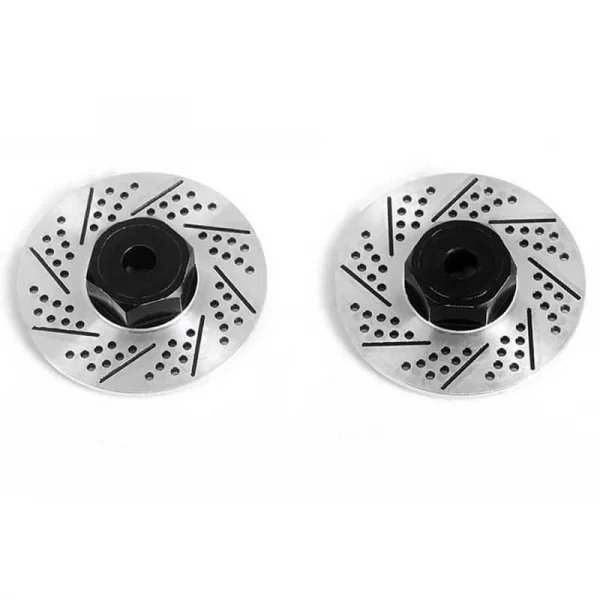

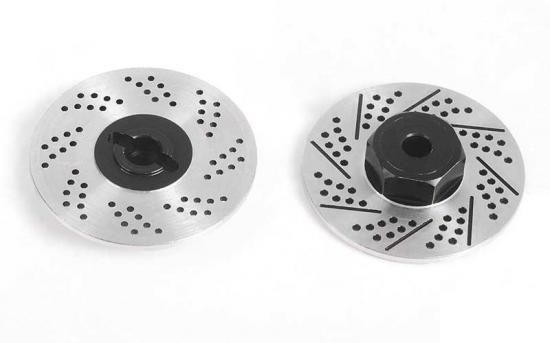

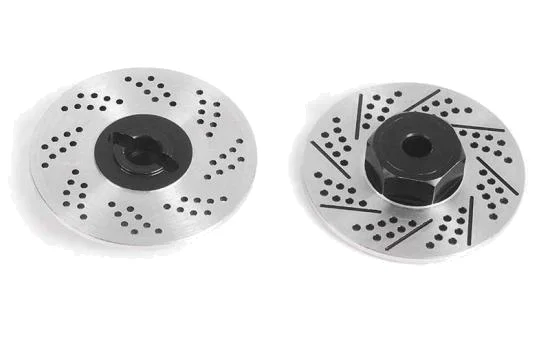

The RC4WD Baer Brake System Rotor Set (Z-S1963) brings licensed scale detail to 1.9 and 2.2 builds. Precision CNC machined from billet aluminium with a black/silver anodised finish, these rotors add realistic brake styling with quality materials and clean machining.

Key Specifications

• Material: Billet aluminium
• Manufacture: CNC machined
• Finish: Black/Silver anodised

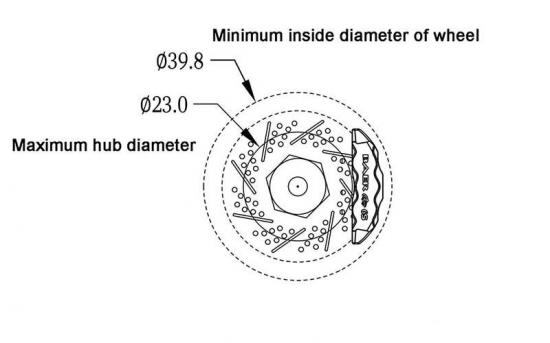

• Brake disc diameter: 1.22in / 31.0mm
• Hex: 0.47in / 12.0mm
• Total weight (pair): 0.25oz / 7.2g

What’s Included

• 2x Brake discs
• 1x Baer decal sheet

Optional Parts

• RC4WD Baer Brake System Caliper Set (2.2"/1.9") (Z-S2057)

Required Parts

• Yota II Axle Mounts for Baer Brake Systems Rotors and Calipers – Front (Z-S1968)
• Yota II Axle Mounts for Baer Brake Systems Rotors and Calipers – Rear (Z-S1969)
• RC4WD Yota Axle Mounts for Baer Brake Systems Rotors and Calipers – Front (Z-S1970)
• Yota Axle Mounts for Baer Brake Systems Rotors and Calipers – Rear (Z-S1971)

Notes & Suggested Compatibility

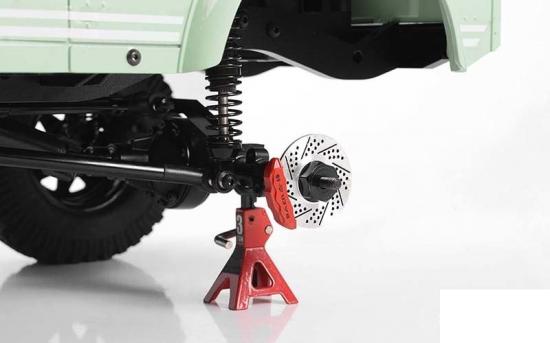

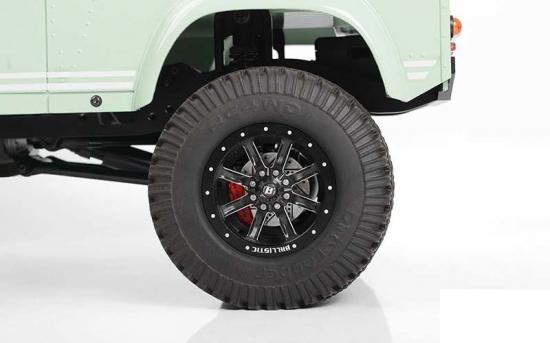

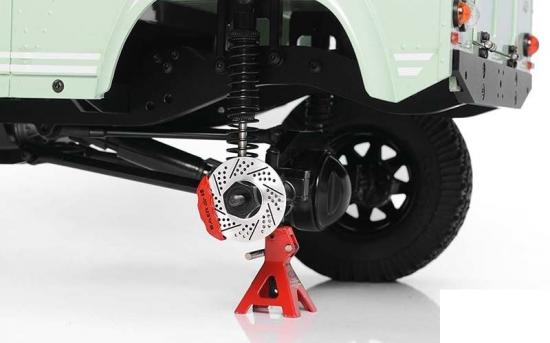

• Example shown installed on RC4WD Gelande II RTR w/ 2015 Land Rover Defender D90 Body (Heritage Edition) (Z-RTR0044) with Yota II mounts (Z-S1969), Baer Caliper Set (Z-S2057), Ballistic Off Road Rage 1.9" Beadlock Wheels (Z-W0261) and Chubby Mini 3 TON Scale Jack Stands (Z-S0731) – items not included.
• Suggested compatibility: Yota II Ultimate Scale Cast Axle (Front) (Z-A0080) with Yota II Axle Mounts – Front (Z-S1968).
• Suggested compatibility: Yota II Ultimate Scale Cast Axle (Rear) (Z-A0081) with Yota II Axle Mounts – Rear (Z-S1969).
• Suggested compatibility: Yota Ultimate Scale Cast Axle (Front) (Z-A0058) with Yota Axle Mounts – Front (Z-S1970).
• Suggested compatibility: Yota Ultimate Scale Cast Straight Axle (Rear) (Z-A0061) with Yota Axle Mounts – Rear (Z-S1971).

Instruction Manuals

• Manuals available for: Z-S1968, Z-S1969, Z-S1970, Z-S1971.
