RC4WD Baja Designs Arc Series Light Bar (124mm) RC4WD

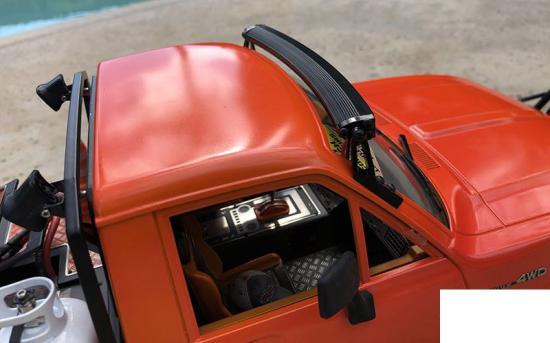

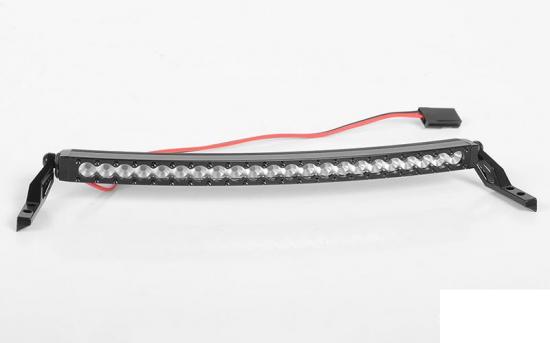

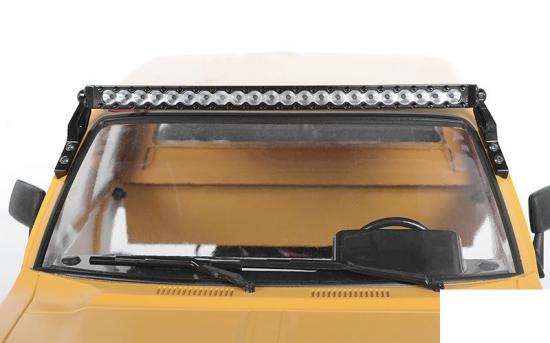

The RC4WD Baja Designs Arc Series Light Bar (124mm), part Z-E0105, brings authentic scale lighting to your RC builds. Developed with Baja Designs, it features 22 powerful LEDs in a cast moulded housing with adjustable, reversible "L" brackets to suit a wide range of mounting positions.

With a standard receiver plug and support for 7.4V and 11.1V input, this light bar is built for reliable, super-bright performance on scale crawlers and trail trucks.

Specifications

• Cast Molded Housing

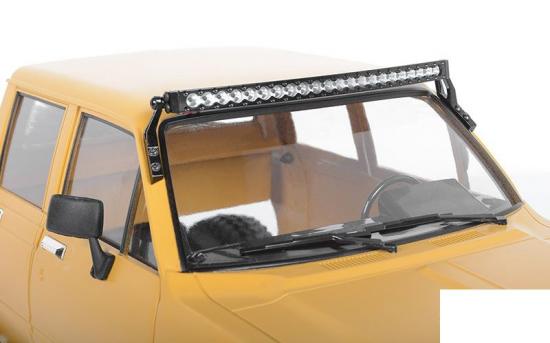

• Reversible "L" Brackets to Fit Many Applications
• Adjustable "L" Brackets for Rotating Light
• 22 Individual LED Bulbs

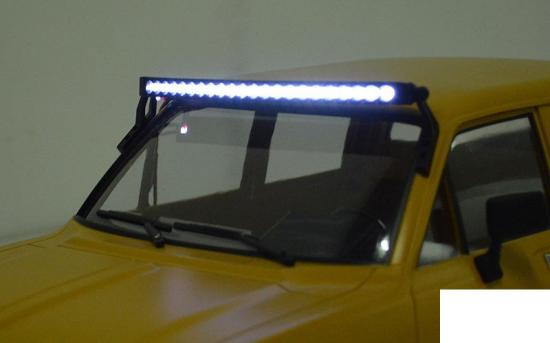

• Super Bright Lighting
• Vented on Side to Dissipate Heat
• Capable of 11.1 Volts and 7.4 Volts
• Standard Receiver Plug
• Connects to Extra Channel on Receiver
• 2mm Mounting Holes
• Overall Length: 5.38in / 136.7mm
• Light Bar Width: 5.10in / 129.5mm
• Overall Height: 0.62in / 15.6mm
• Light Bar Height: 0.31in / 8.0mm
• Weight: 1.13oz / 32.1g

What’s Included

• 1x RC4WD Baja Designs Arc Series Light Bar (124mm)
• 4x M2 x 8mm Steel Button Head Cap Screws (Black)
• 4x Nylock Nuts M2 (Black)
• 1x Baja Designs Decal Sheet

Optional Parts

• RC4WD Strobe Lighting Unit (Z-S1573)
• Y Harness with Tamiya Connectors for Light Bars (Z-S1601)
• RC4WD Mini ON/OFF Switch for Lighting Unit (Z-E0081)

Replacement Hardware

• Nylock Nuts M2 (Black) (Z-S0906)
• Steel Button Head Cap Screws M2 x 8mm (Z-S1810)
• Steel Button Head Cap Screws M2 x 6mm (Z-S0933)
• Steel Button Head Cap Screws M2.5 x 6mm (Z-S0764)

Notes

• Use medium grade thread lock on the "L" bracket nut to maintain position.
• Mounting hardware reference: M2 SHCS / M2 BHCS.
• While the light bar includes a standard receiver plug, most receivers will not supply enough power for full brightness. For best results, power directly from the battery or use a BEC to increase receiver power.
• Suggested compatibility includes:

• RC4WD Trail Finder 2 "LWB" RTR w/Mojave II Four Door Body Set (Z-RTR0030)
• RC4WD Trail Finder 2 RTR w/Mojave II Body Set (Z-RTR0024)
• RC4WD Trail Finder 2 Truck Kit "LWB" w/Mojave II Four Door Body Set (Z-K0058)
• RC4WD Trail Finder 2 Truck Kit w/Mojave II Body Set (Z-K0049)
