RC4WD Bilstein SZ Series 90mm Shock Absorbers

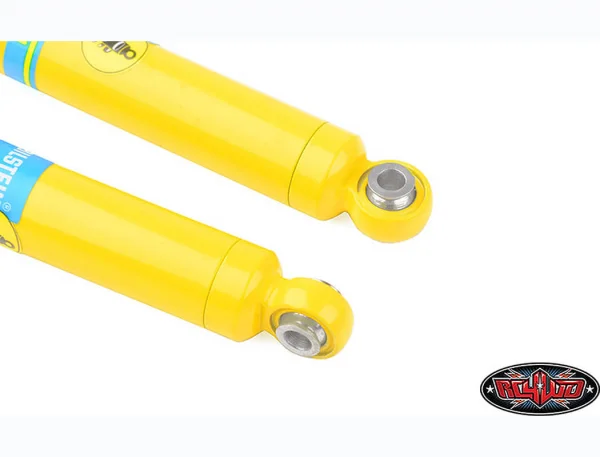

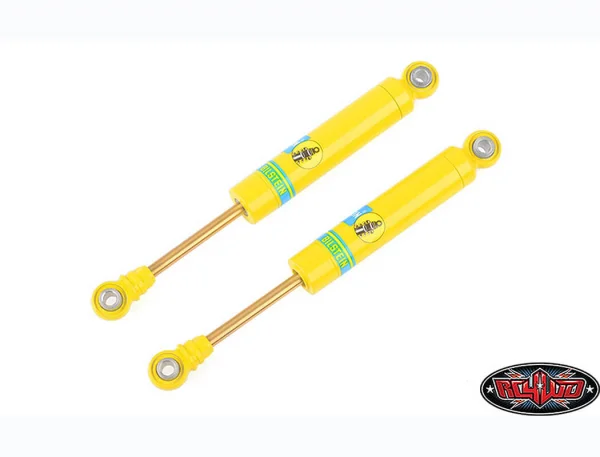

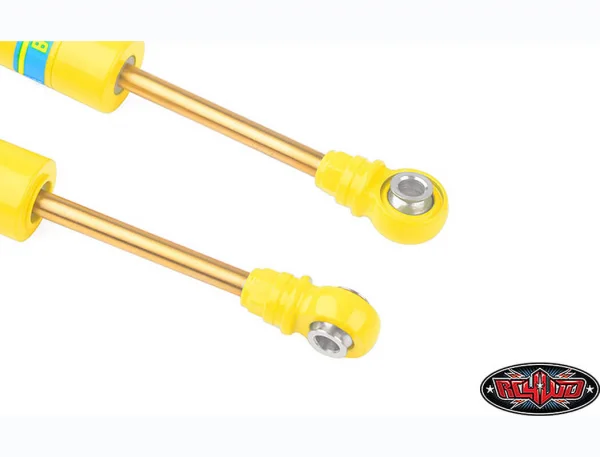

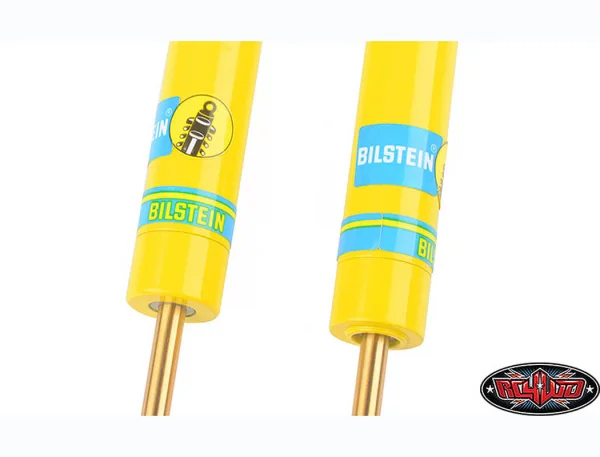

The RC4WD Bilstein SZ Series Shock Absorbers (90mm), part number Z-D0046, are officially licensed by Bilstein and feature RC4WD’s new X-Ring technology to reduce contact friction while improving oil flow and retention around the shock shaft. Precision-machined from billet aluminium with a distinctive yellow powder-coated finish, they use an internal spring design for a clean, scale look. This SZ Series set reflects the Bilstein B6 4600 Series design and branding.

With a 90mm eye-to-eye length when uncompressed and 67mm when compressed, plus 23mm of travel, these shocks provide smooth, consistent damping in a compact package.

Features

• Machined Billet Aluminium
• Yellow Powder Coated Finish
• Internal Spring Design

Specifications

• Hole to Hole (Compressed): 2.63in / 67mm
• Hole to Hole (Uncompressed): 3.54in / 90mm
• Overall Length: 3.91in / 99.4mm
• Travel Length: 0.90in / 23mm
• Shock Body OD: 0.39in / 10mm
• Shaft OD: 0.11in / 3.0mm
• Each Weighs: 0.40oz / 11.4g

What’s Included

• 2 x RC4WD Bilstein B6 4600 Series Shock Absorbers (90mm)
• 1 x Bilstein Decal Sheet
