RC4WD Blackwell Scale Machined Front Axle V2 Z-A0032

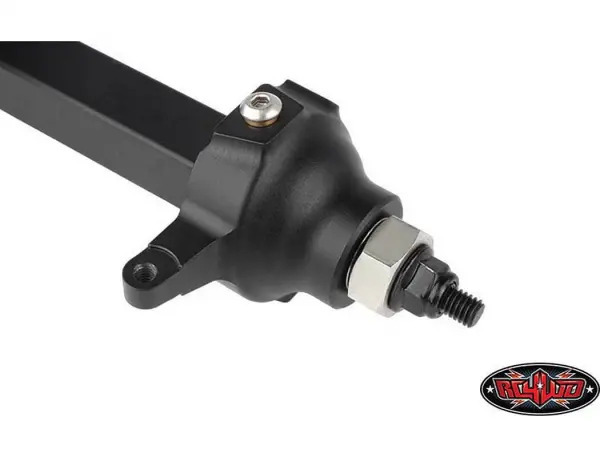

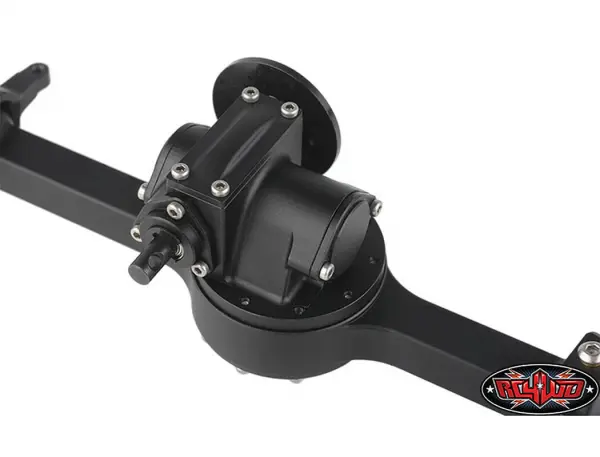

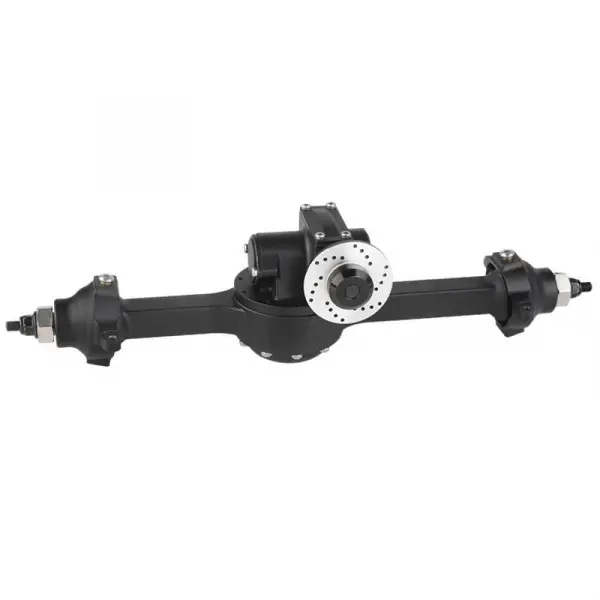

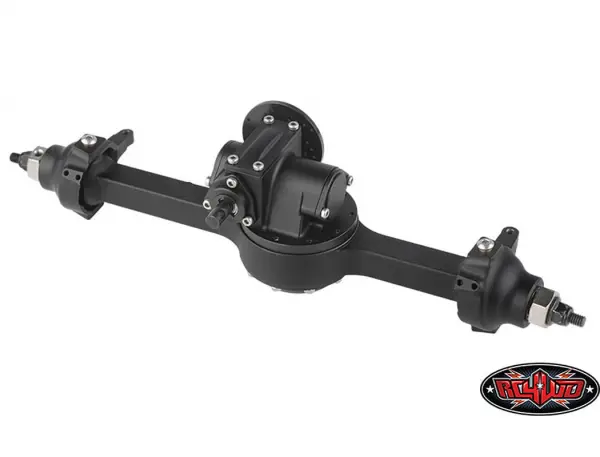

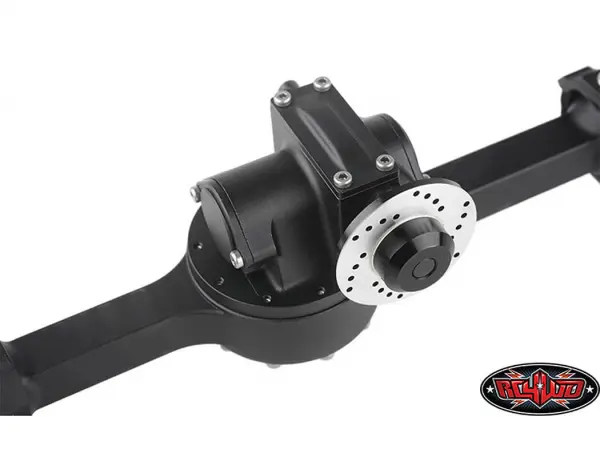

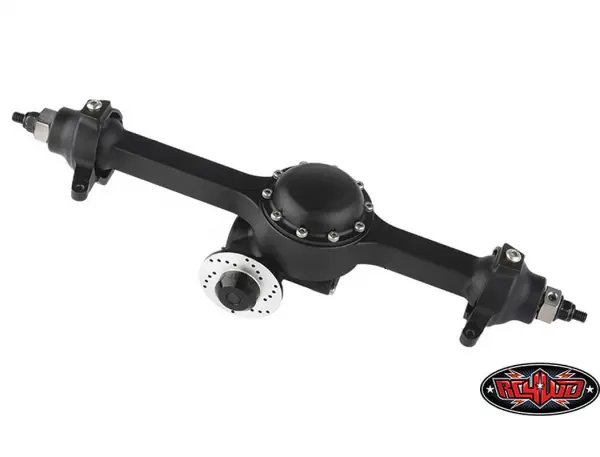

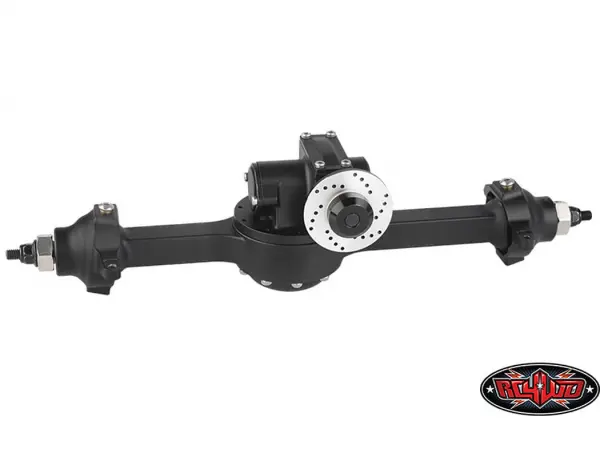

The RC4WD Blackwell Scale Machined Axle V2 (Front), part number Z-A0032, is a front axle component for scale radio-controlled models. It is CNC machined from billet aluminium and finished in smooth black anodising. The axle features a 5mm output shaft, full ball bearings, hardened steel gears and a 12mm steel wheel hex.

This front axle is supplied as one complete RC4WD Blackwell Scale Machined Axle V2 assembly. Its internal gearing provides a 3.76:1 ratio, while the ball bearings support the axle's moving components. The hardened steel gears and steel wheel hex are specified as part of the assembly, alongside the aluminium construction and black finish.

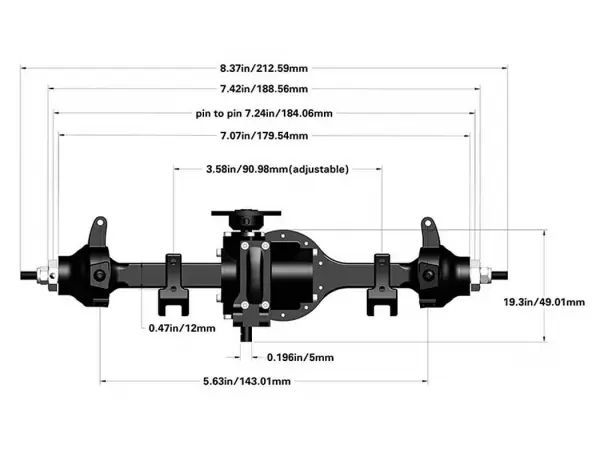

Specifications

• Hex-to-hex width: 188.5mm
• Gear ratio: 3.76:1
• Weight: 268g

Routine maintenance is recommended. Check the grease around the gears and apply oil to the bearings as required. Avoid overtightening the screws, as this can strip the holes. Thread-locking compound can be used sparingly, but too much may damage the casing.
