RC4WD Blackwell Scale Machined Rear Axle V2 Z-A0033

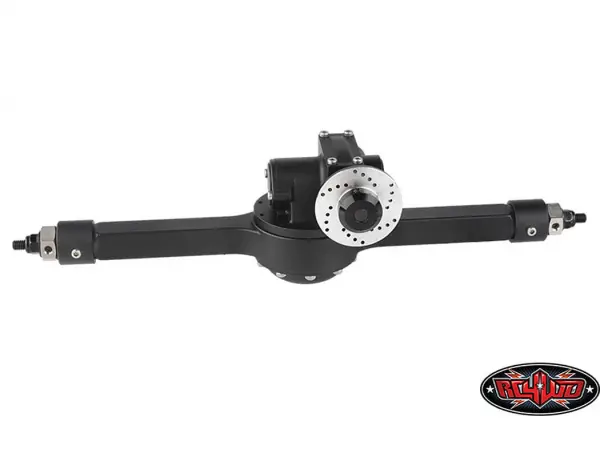

The RC4WD Blackwell Scale Machined Axle V2 (Rear), part number Z-A0033, is a CNC-machined rear axle for scale radio-controlled models. It uses billet aluminium construction with a smooth black anodised finish, giving the axle its stated scale appearance. This V2 rear axle features a 5mm axle output shaft, full ball bearings and hardened steel gears within the axle assembly.

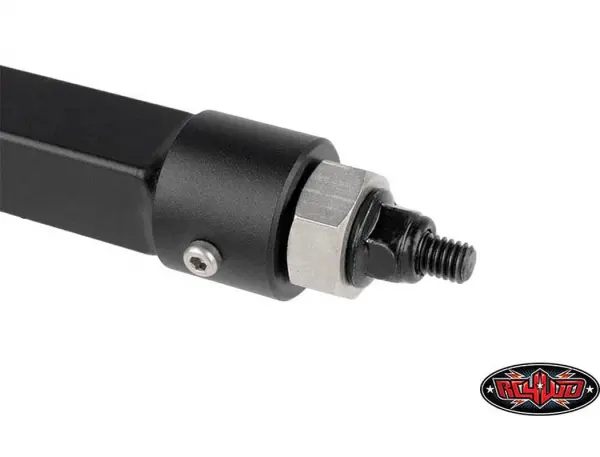

A 12mm steel wheel hex provides the wheel mounting interface, while the 3.76:1 gear ratio is suited to applications where the axle's gearing needs to be considered alongside the rest of the drivetrain. The rear-specific configuration makes this component distinct from a front axle, so check the intended chassis arrangement before selecting it.

Specifications

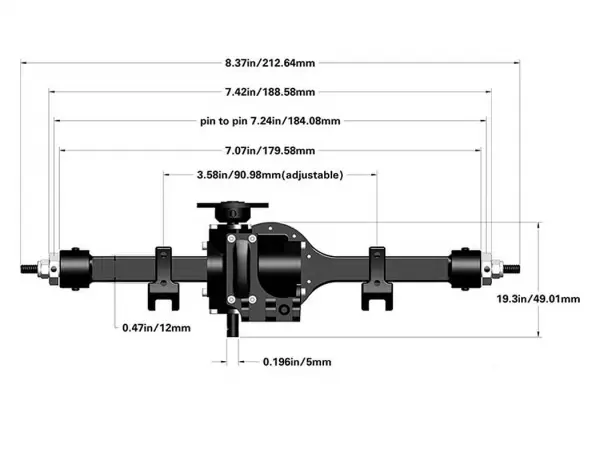

• Hex-to-hex width: 188.5mm (7.42in)
• Gear ratio: 3.76:1
• Weight: 268g (9.45oz)

Maintenance Notes

Routine maintenance is recommended. Check the grease around the gears and apply oil to the bearings as required. When servicing or assembling the axle, avoid overtightening the screws, as this can strip the holes. Thread-locking compound may be used sparingly; too much can damage the casing.

The axle is supplied as one RC4WD Blackwell Scale Machined Axle V2 (Rear) assembly. Its machined aluminium housing, steel gearing, bearing support and steel wheel hex provide the key details to check when comparing it with the requirements of a scale RC drivetrain.
