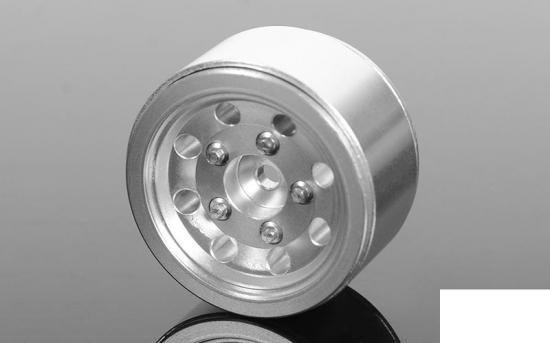

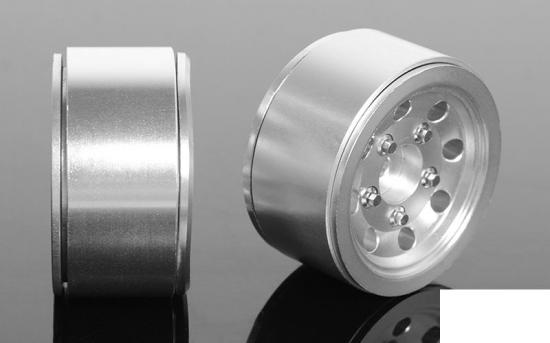

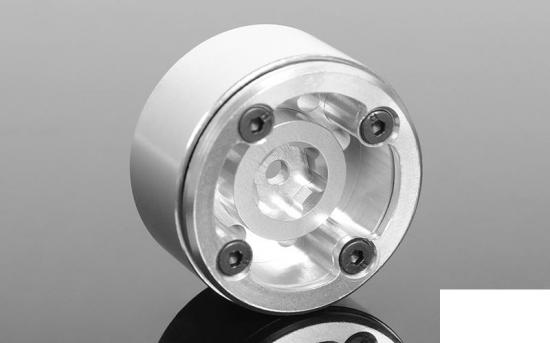

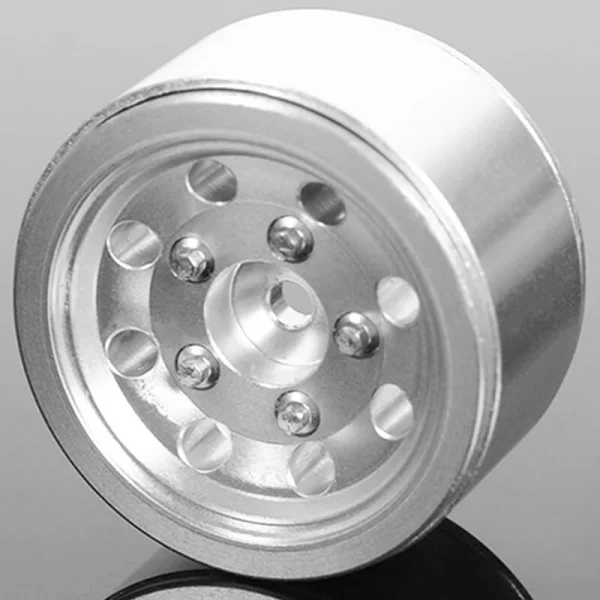

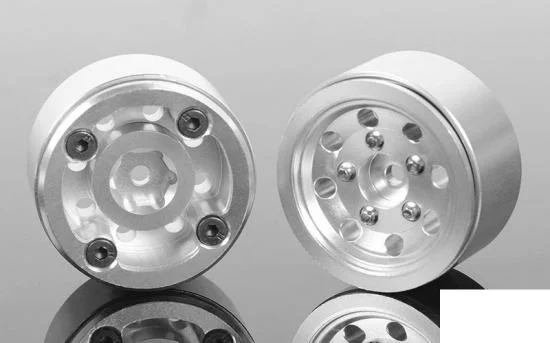

RC4WD Classic 8-Hole 1.0 Beadlock Wheels (4)

The RC4WD Classic 8-Hole 1.0" Beadlock Wheels (Z-W0280) are precision CNC‑machined from billet aluminium with a durable silver anodised finish. Designed for micro‑scale crawlers running 1.0" tyres, these wheels use a standard 7mm hex and deliver dependable beadlock performance in a compact, scale‑accurate package. Supplied as a set of four with a miniature hex bolt tool for easy assembly.

Key Specifications

• CNC machined billet aluminium
• Silver anodised finish
• Fits standard 7mm hex
• Wheel size: 1.0"; fits 1.0" tyres
• Outside diameter: 1.09in / 27.5mm
• Width: 0.60in / 15.4mm
• Centre hole OD: 0.1in / 2.5mm
• Positive offset: 0.27in / 7.0mm
• Weight (each): 0.51oz / 14.4g

What’s Included

• 4x RC4WD Classic 8-Hole 1.0" Beadlock Wheels
• 1x Miniature Scale Hex Bolt Tool for M1.6 scale bolts (1.5mm hex)

Replacement Hardware

• Steel Flat Head Socket Cap Screw M2 x 6mm (Black) (Z-S1518)
• RC4WD Miniature Scale Hex Bolts (M1.6 x 2mm) (Silver) (Z-S1809)
• Miniature Scale Hex Bolt Tool for M1.6 Scale Bolts (1.5 mm Hex) (Z-S1328)

Suggested Compatibility

• RC4WD 1/18 Gelande II RTR w/D90 Body Set (Blue) (Z-RTR0039)
• RC4WD 1/18 Gelande II RTR w/BlackJack Body Set (Z-RTR0036)
• RC4WD 1/18 Gelande II RTR w/Black Rock Body Set (Z-RTR0037)
• RC4WD 1/18 Gelande II RTR w/D90 Body Set (Black) (Z-RTR0038)

Notes

• RC4WD tyres and wheels are designed to work together. Due to variations in design across brands, cross‑brand fitment cannot be guaranteed.

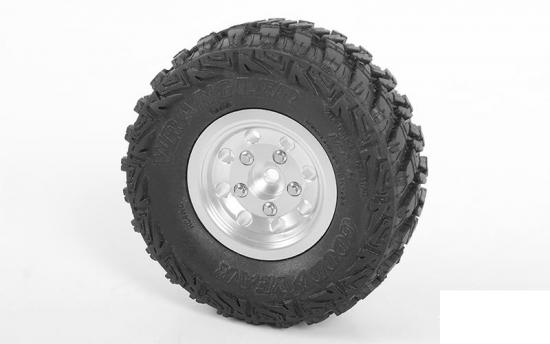

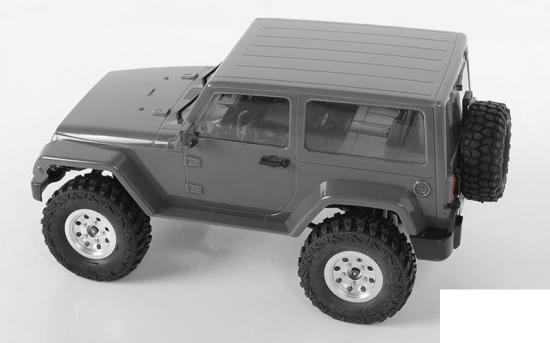

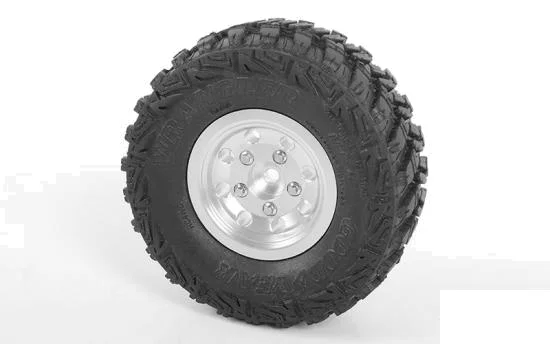

• Example images show installation with RC4WD Goodyear Wrangler MT/R 1.0" Micro Scale Tyres (Z-T0161) and 1/18 Gelande II models; items not included.
