RC4WD Extreme Duty XVD for Clodbuster Axle
Brand: RC4WD
Part No: Z-S1299
Out Of Stock
Request Stock NotificationFinance options available at checkout.
Description
The RC4WD Extreme Duty XVD for Clodbuster Axle (Z-S1299) is a heavy-duty upgrade engineered to improve steering performance and durability. CNC machined from super hardened, heat-treated steel, this XVD set delivers a tighter turning radius with up to a 45° steering angle and is suitable for use on both front and rear axles. Shown installed with a Clod Buster front axle for illustration; axle not included.
Key Features
- CNC machined super hardened steel
- Heat treated
- Easy installation
- Up to 45° steering angle
- Useable on front and rear
- Extremely durable
- Approx. weight: 4.16oz / 118g

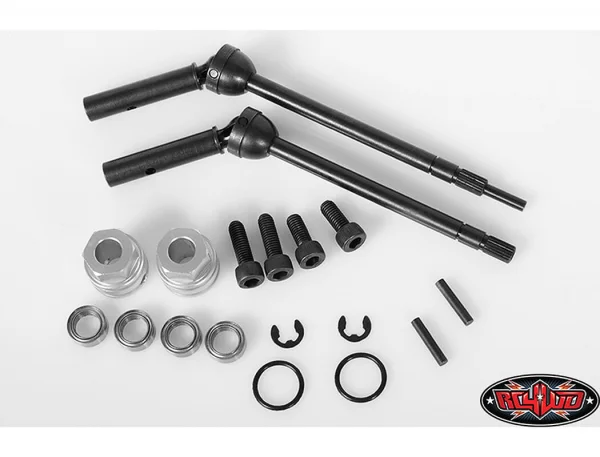

What’s Included

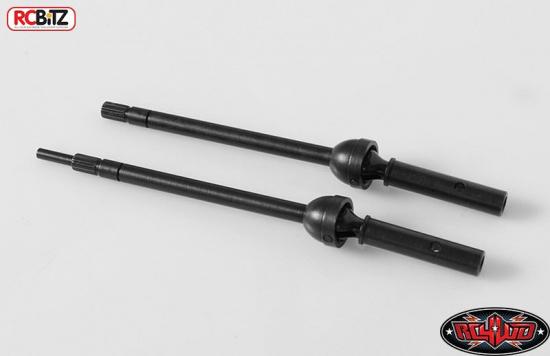

- 1x 147mm RC4WD Extreme Duty XVD for Clodbuster Axle
- 1x 134mm RC4WD Extreme Duty XVD for Clodbuster Axle

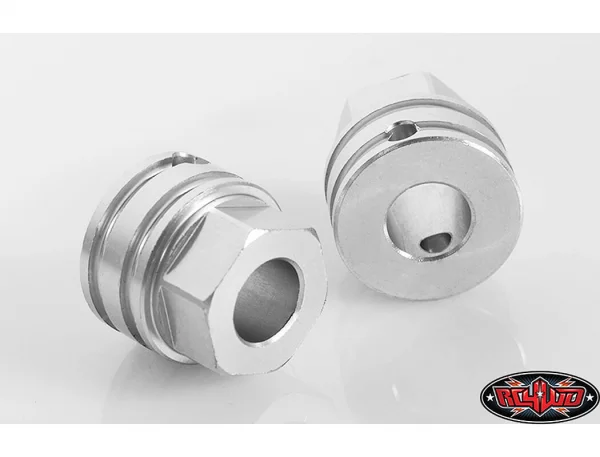

- 2x 12mm Hex Hub
- 2x M5x16mm SHCS (Black)
- 2x M5x12mm SHCS (Black)
- 2x M5 E-Clips
- 2x 16mm Hex Pin
- 2x 12x1.5mm Sealing Ring
- 4x Metal Shield Bearing 12x8x4mm (Z-S1305)
Optional Parts
- 17mm Hex for RC4WD Extreme Duty XVD for Clodbuster Axle (Z-S1303)
- 12mm Hex for RC4WD Extreme Duty XVD for Clodbuster Axle (Z-S1301)
- 14mm Hex for RC4WD Extreme Duty XVD for Clodbuster Axle (Z-S1353)
Replacement Parts
- Metal Shield Bearing 12x8x4mm (Z-S1305)
Suggested Compatibility
- Tamiya Clod Buster
Secured by Stripe
RC4WD Extreme Duty XVD for Clodbuster Axle Manuals & Guides
Specifications
RC4WD Extreme Duty XVD for Clodbuster Axle
Upgrade your Clodbuster to XVD units for better steering.
Specifications:
- CNC Machined Super Hardened Steel
- Heat Treated
- Easy Installation
- 45° Steering Angle
- Designed to fit Tamiya Clod Buster
- Useable on Front and Rear
- Extremely Durable
- Weight: 4.16oz / 118g

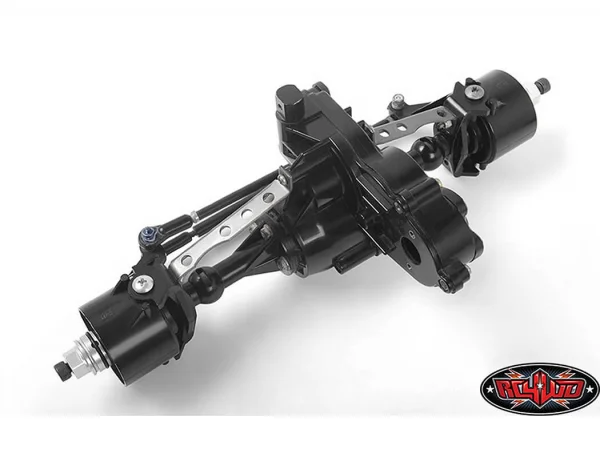

Shown installed with Clod Buster Front Axle for example (Not Included)
What Included:
- 1x 147mm RC4WD Extreme Duty XVD for Clodbuster Axle
- 1x 134mm RC4WD Extreme Duty XVD for Clodbuster Axle
- 2x 12mm Hex Hub
- 2x M5x 16mm SHCS (Black)
- 2x M5x 12mm SHCS (Black)
- 2x M5 E-Clips
- 2x 16mm Hex Pin
- 2x 12x1.5mm Sealing Ring
- 4x Metal Shield Bearing 12 x 8 x 4mm (Z-S1305)
Optional Parts:
- 17mm Hex for RC4WD Extreme Duty XVD for Clodbuster Axle (Z-S1303)
- 12mm Hex for RC4WD Extreme Duty XVD for Clodbuster Axle (Z-S1301)
- 14mm Hex for RC4WD Extreme Duty XVD for Clodbuster Axle (Z-S1353)
Replacement Parts:
- Metal Shield Bearing 12 x 8 x 4mm (Z-S1305)
Key Info:
- Brand: RC4WD
- Part No: Z-S1299
- Barcode: 639302604410
