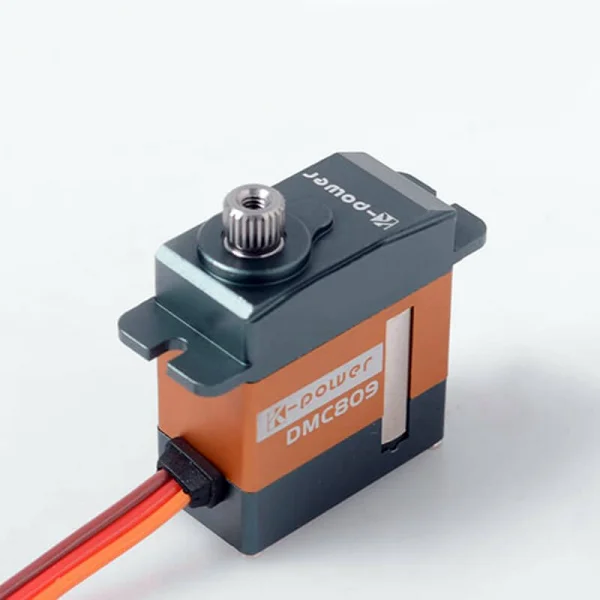

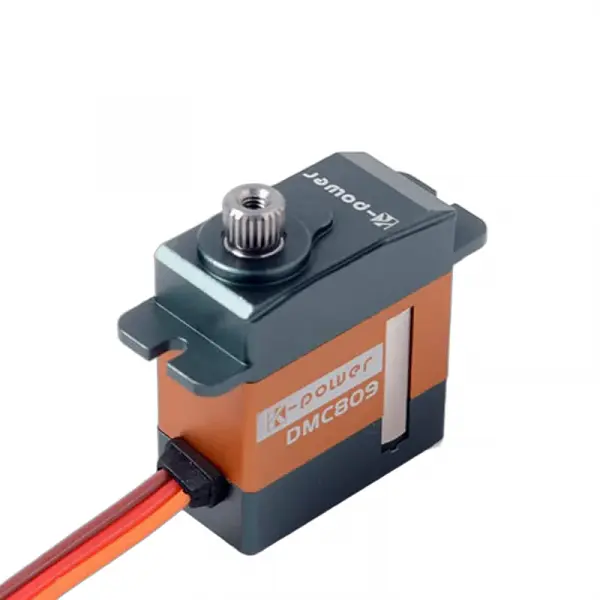

RC4WD Heavy Equipment Mini Valve Servos

The RC4WD Heavy Equipment Mini Valve Servos (VVV-S0162) are compact, metal‑gear servos designed for precise valve control on RC construction and scale machinery. Operating on 4.8–6.0V with swift response and durable gears, they offer reliable performance in tight installations where size and endurance matter.

Key Specifications

• Gear type: Metal gears
• Operating voltage: 4.8–6.0V
• Torque: 3.0 kg.cm @ 4.8V; 3.8 kg.cm @ 6.0V
• Operating speed (4.8V): 0.08 sec/60° (no load)
• Operating speed (6.0V): 0.07 sec/60° (no load)
• High efficiency, low power consumption
• Metal gears ensure long life and durability
• Dimensions (W x H x L): 12 x 31.5 x 23.3 mm
• Weight: 21.4 g

What’s Included

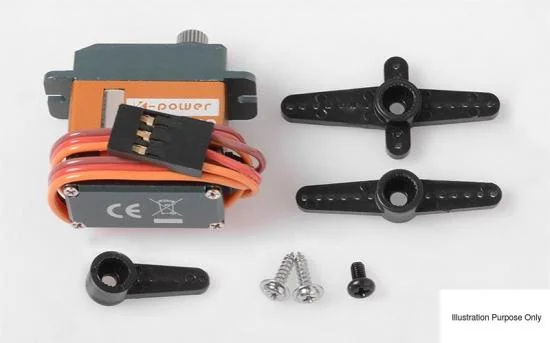

• 1x Heavy Equipment Mini Valve Servo
• 1x Set of servo arms and hardware

Suggested Compatibility

• RC4WD 1/14 Scale Earth Mover 870K Hydraulic Wheel Loader (VV-JD00013)

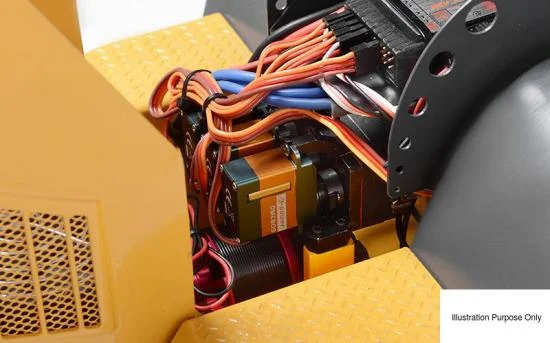

Shown installed with the 1/14 Scale Earth Mover 870K Hydraulic Wheel Loader for example (model not included).
