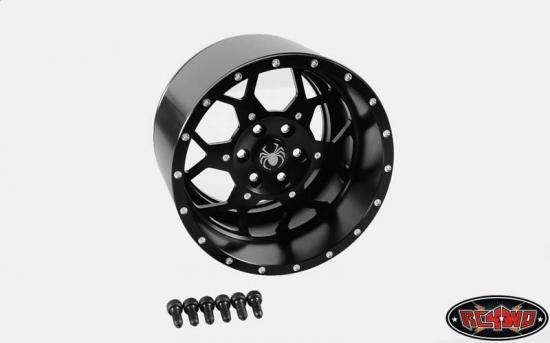

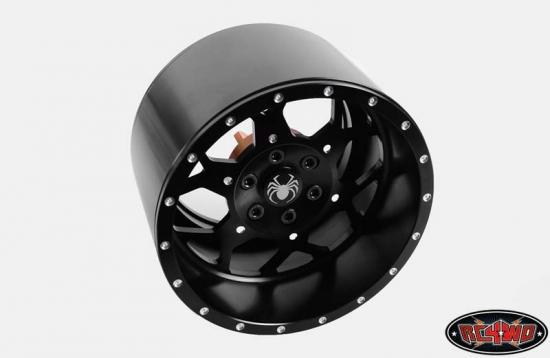

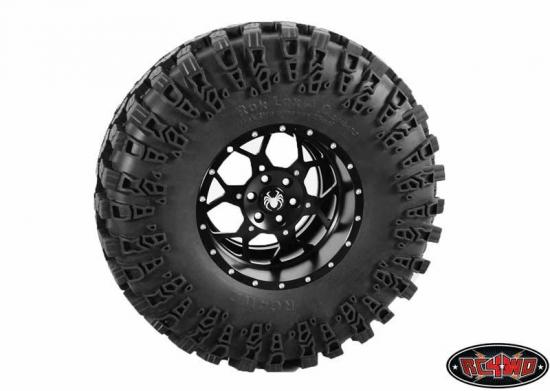

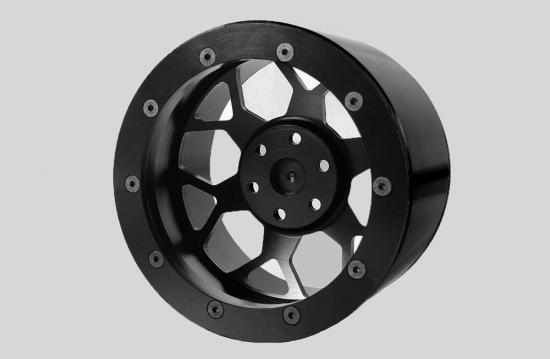

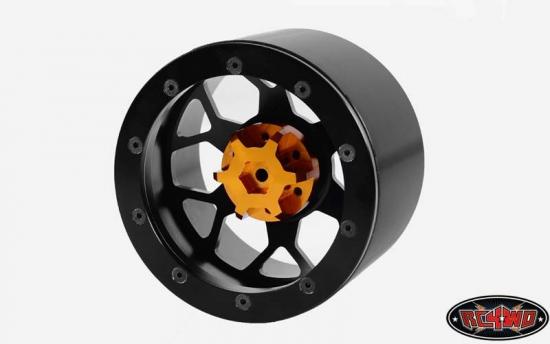

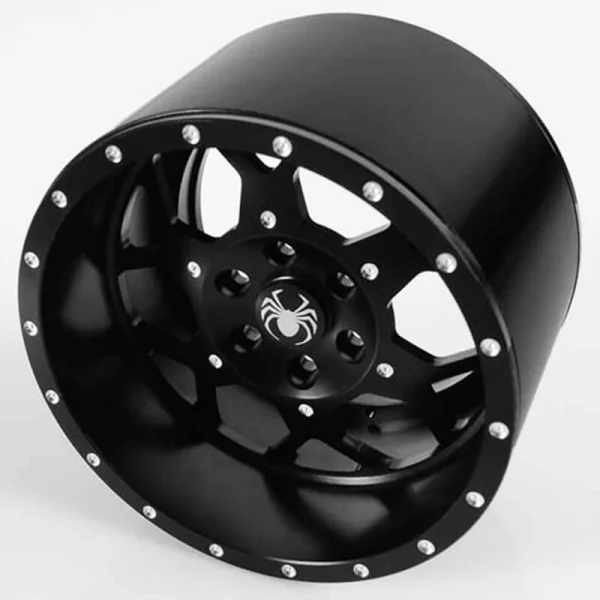

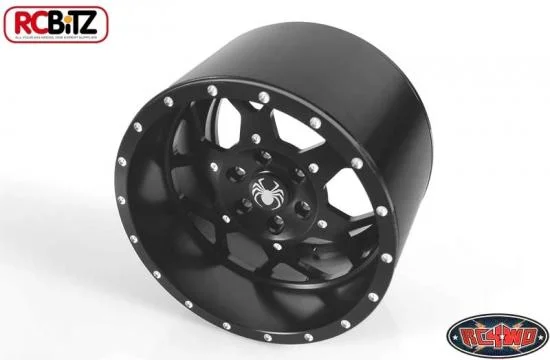

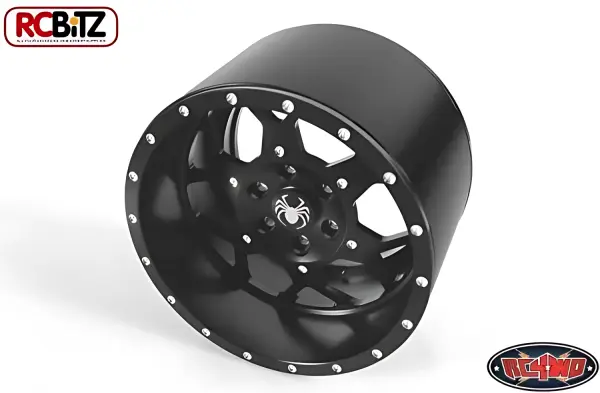

RC4WD Huntsman Spider 40 Series 3.8 Universal Beadlock Wheel

The RC4WD Huntsman Spider 40 Series 3.8" Universal Beadlock Wheel (Z-W0143) delivers robust performance and scale looks. Precision CNC machined from aluminium and designed around a multiple hub/hex system, this pair of beadlock wheels offers strong clamping and a detailed finish for large-scale crawlers and monster builds.

Key Specifications

• CNC machined aluminium
• Amazing detail
• Uses multiple hub/hex system
• Size: 4.0"
• OD: 4.0in / 101.6mm
• Width: 2.54in / 64.5mm
• Negative offset: 0.86in / 21.9mm
• Weight (each wheel): 12.62oz / 358g

What’s Included

• 2x Huntsman Spider 40 Series 3.8" Universal Beadlock Wheel
• 12x M4 x 10mm SHCS (Black)

Replacement Hardware

• 12x M4 x 10mm SHCS (Black) (Z-S0941)
• M3 x 8mm FHCS (Black) (Z-S0649)

Optional Parts

• 17mm Mad Force / 1/8 Buggy Universal Hex for 40 Series and Clod Wheels (Z-S1866)

Notes and Suggested Compatibility

• Hex hub not included.
• Suggested hex options: 12mm (Z-S0914), 14mm (Z-S0889), 17mm (Z-S0847), and 17mm Revo/Summit hex (Z-S0432). Tool: Z-S0964.
• RC4WD Mickey Thompson Baja Claw Z-T0081 will not fit this wheel.
• Suggested compatibility includes Burnout 1/4 Scale Axle (Z-A0088).
• Suggested compatibility includes Killer Krawler 2 (Z-K0055)/(Z-K0057) when used with 14mm Universal Hexes for Killer Krawler 2 (Z-S1713).
• Due to varying tyre and wheel designs across brands, RC4WD tyres and wheels are designed to work together; results with other brands may vary.
• Images in manufacturer materials show wheels mounted on various vehicles/tyres for reference; those items are not included.
