RC4WD LED Basic Lighting System for 1/24 Mojave Body Set RC4WD

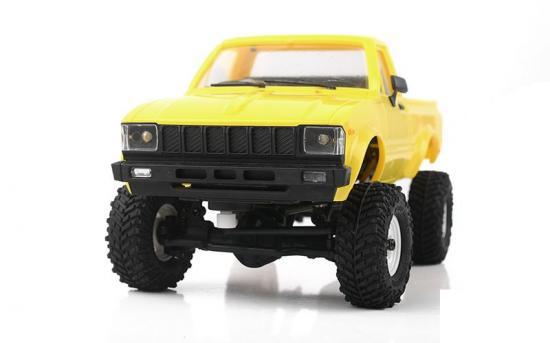

The RC4WD LED Basic Lighting System (Z-E0131) is designed for the 1/24 Mojave body set, providing white front and red rear illumination in a compact, lightweight package. It operates at 7.4V with a DC input range of 4.5–9V, and includes 270mm leads to help with tidy cable routing. Example images show it installed on the RC4WD 1/24 Trail Finder 2 with Mojave II Hard Body Set; vehicle not included.

Key Specifications

• 2x 3mm White LEDs
• 2x 2mm Red LEDs
• DC Voltage: 4.5 V ~ 9 V
• Control Voltage: 7.4 V
• Operating Voltage: 7.4 V
• Wire Length: 10.6in / 270mm
• Total Weight: 0.20oz / 5.8g

What’s Included

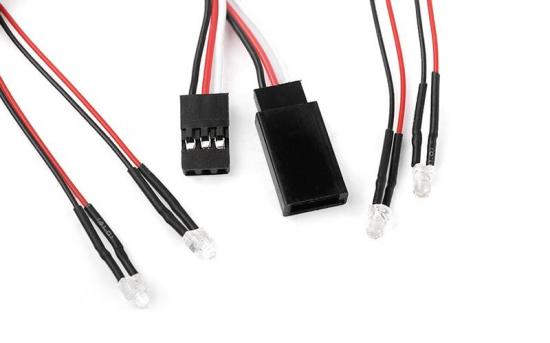

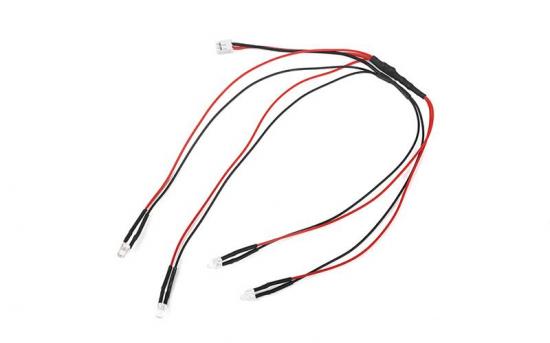

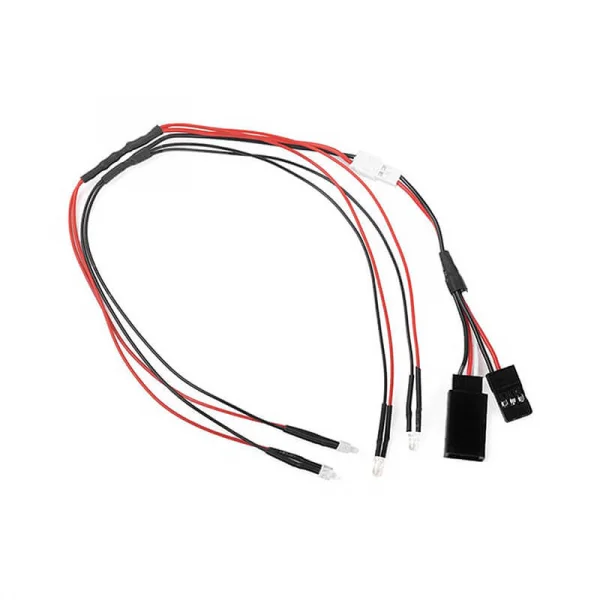

• 1x LED Basic Lighting System for 1/24 Mojave Body Set
• 1x 97mm Y Branch Connector

Optional Accessories

• RC4WD Mini ON/OFF Switch for Lighting Unit (Z-E0081)
• RC4WD Strobe Lighting Unit (Z-S1573)

Suggested Compatibility

• RC4WD 1/24 Trail Finder 2 RTR with Mojave II Hard Body Set (Yellow) (Z-RTR0051)
• RC4WD 1/24 Trail Finder 2 RTR with Mojave II Hard Body Set (Blue) (Z-RTR0052)
• RC4WD 1/24 Trail Finder 2 RTR with Mojave II Hard Body Set (Red) (Z-RTR0053)
