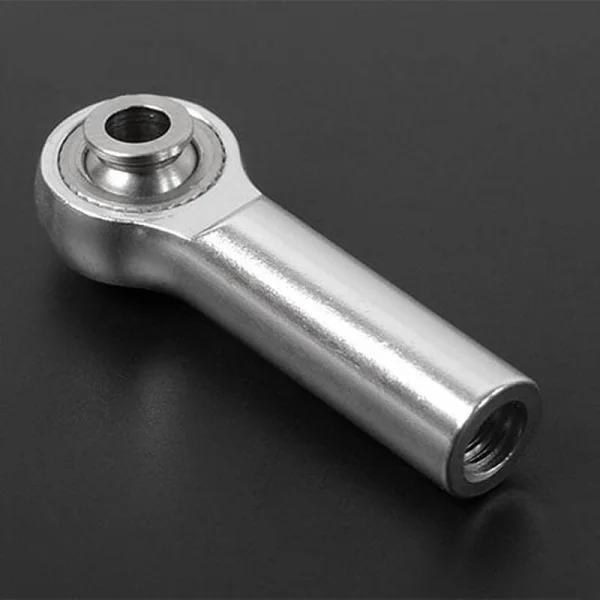

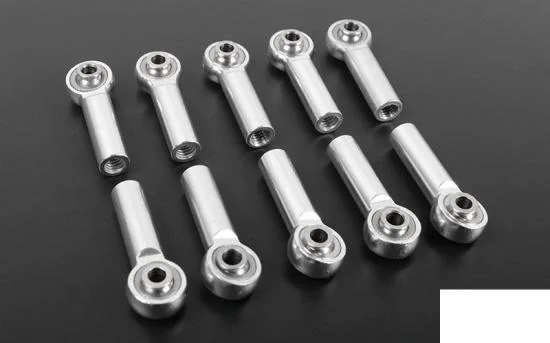

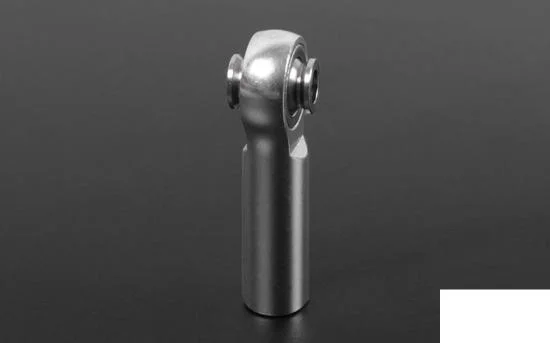

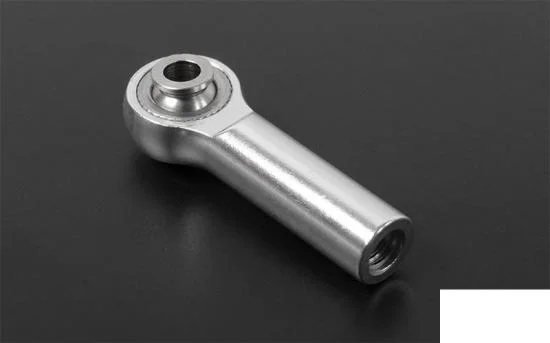

RC4WD M4 High Precision Billet Tie Rod End (Silver) (10) RC4WD

The RC4WD M4 High Precision Billet Tie Rod Ends (Silver) are CNC‑machined from billet aluminium and finished with a protective silver coating. Each rod end includes a preinstalled stainless‑steel ball for smooth, durable articulation. Supplied as a pack of ten under part number Z‑S1348, they are suitable for linkages that use M4 (4mm) threaded shafts.

Key Features

• CNC machined billet aluminium construction
• Fits 4mm threaded shaft (M4)
• Protective silver coating
• Preinstalled stainless‑steel ball

Specifications

• Total length: 1.09in (27.6mm)
• Ball hole to rod end length: 0.87in (22mm)
• Rod OD: 0.28in (7mm)
• Head OD: 0.39in (10mm)
• Ball width: 0.3in (7.5mm)
• Ball lip OD: 0.2in (5mm)
• Ball hole ID: 0.12in (3.1mm)
• Each weight: 0.1oz (3g)

What’s Included

• 10x M4 High Precision Billet Tie Rod End (Silver)
