RC4WD Mini Hydraulic Oil Pump with Brushless 40A ESC

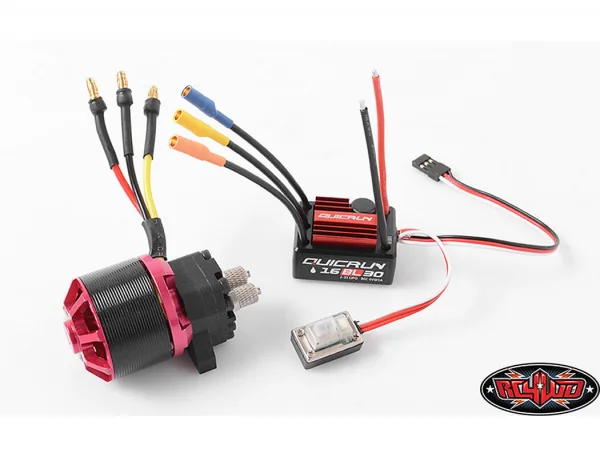

The RC4WD Mini Hydraulic Oil Pump with Brushless Motor/ESC (part VVV-S0090) is a compact, high-efficiency solution for RC hydraulic systems. Supplied as a motor/ESC combo with the hydraulic pump pre-installed, it delivers strong oil pressure in a small footprint, ideal for scale applications where space and performance matter.

Features

• Brushless motor and ESC combo
• Hydraulic pump pre-installed

Specifications

• Weight: 8.74 oz / 248 g

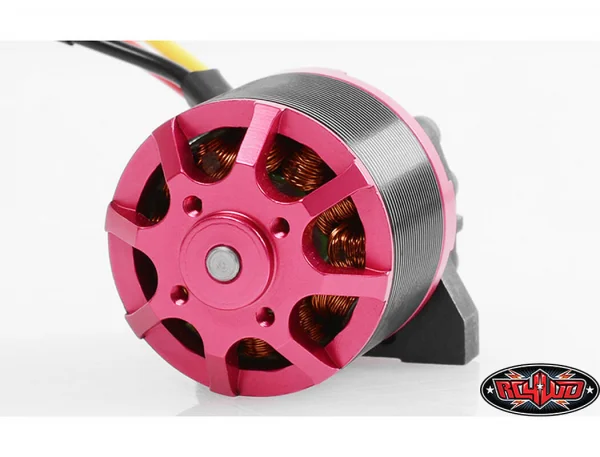

• Motor
  • Rotational speed: 280 kv (RPM/volt)
  • Input voltage: 7.4–12.6 V
  • Max efficiency: >85%
  • Continuous current: 10–12 A
  • Motor OD: 35 mm
  • Total length: 43 mm

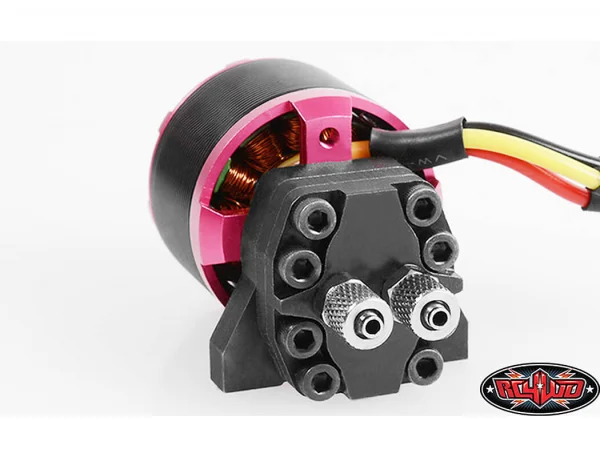

• Oil Pump
  • Length: 35 mm
  • Width: 29 mm
  • Height: 16 mm
  • Material: SKD11 Japanese steel, 50 HRC heat treated
  • Booster tank
  • Hydraulic M5 to M4 straight nozzle
  • Rated pressure: 3.5–4.5 MPa
  • Maximum oil pressure: 8 MPa

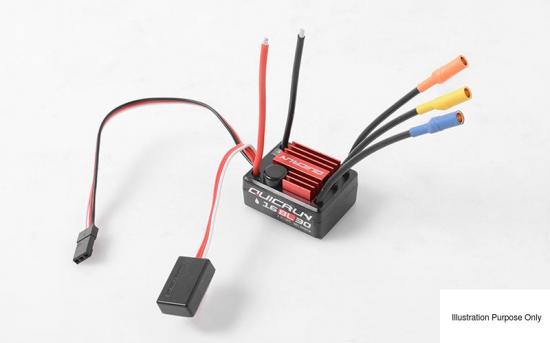

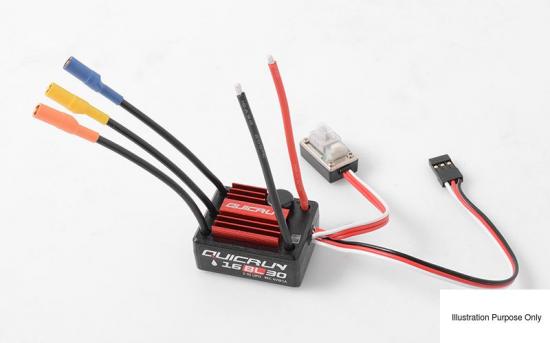

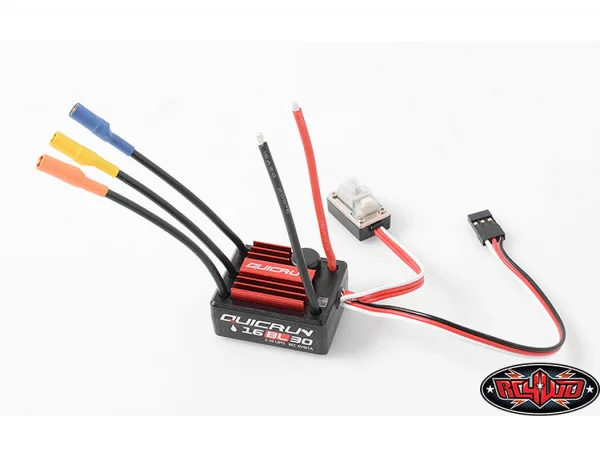

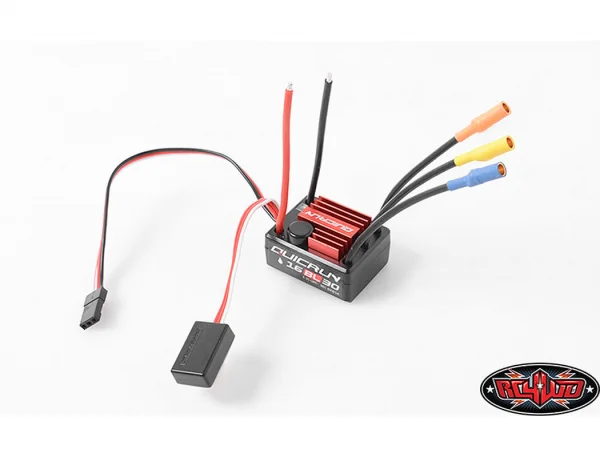

• ESC
  • Length: 34.5 mm
  • Height: 28.6 mm
  • Width: 34 mm

What’s Included

• 1 x Brushless motor
• 1 x Oil pump (pre-installed)
• 2 x Hydraulic M5 to M4 straight nozzle

Suggested Compatibility

• 1/14 Scale Earth Mover 870K Hydraulic Wheel Loader (Yellow and White) (VV-JD00031, discontinued)
