RC4WD Ignitor 2.6 Monster Truck Beadlock Wheels
Brand: RC4WD
Part No: Z-W0282
Backorder: Expected 26th August 2026
Request Stock NotificationFinance options available at checkout.
Fits These Models (1)
Show all 1 models
Description

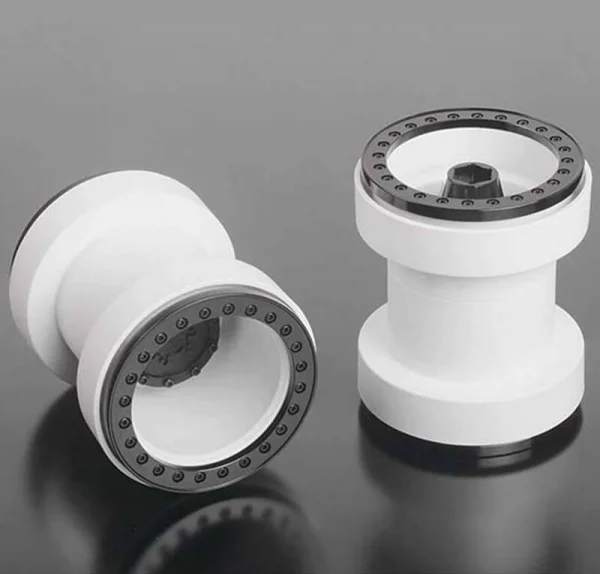

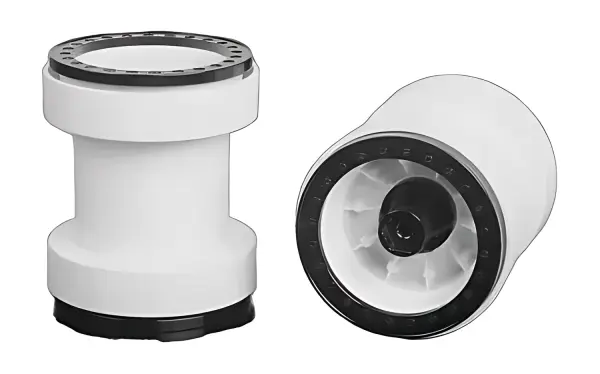

The RC4WD Ignitor 2.6" Monster Truck Racing Beadlock Wheels (Z-W0282) bring a competition-focused design to classic monster truck builds. Featuring CNC-machined aluminium beadlock rings and a robust 12mm hex secured by six 3mm bolts, these wheels deliver dependable clamping and strength. Indexed wheel halves help align fasteners, while the innovative alternating threaded hole design makes mounting tyres quicker and easier.
Key Features & Specifications
- CNC machined billet aluminium beadlock rings and 12mm hex
- Black anodised finish
- ABS plastic injection-moulded wheels and centre cap
- Designed for beadlock assembly; no glue required
- Outer diameter: 78.3 mm (3.08”)
- Width: 94.8 mm (3.73”)
- Negative offset: 35.4 mm (1.39”)
- Weight (each): 203 g (7.16 oz)
- Alternating threaded hole layout for easier ring mounting
- Indexed halves for straightforward screw alignment
What’s Included
- 2x Ignitor 2.6" Monster Truck Racing Beadlock Wheels
- 2x Wide Offset Hub for Racing Monster Truck Beadlock Wheels (Flat Hex) – for flat-style 12mm hexes
- 2x Wide Offset Hub for Racing Monster Truck Beadlock Wheels (Stepped Hex) – for Tamiya Clod Buster & Axial AR60 12mm hexes
- 2x Socket Head Cap Screws M2 x 16 mm (Black)
Replacement Hardware
- Steel Socket Head Cap Screws M3 x 8 mm (10) (Z-S1231)
- Socket Head Cap Screws M2 x 5 mm (Black)
- Steel Socket Head Cap Screw M2 x 4 mm (10) (Z-S0922)
- Socket Head Cap Screws M2 x 16 mm (Black)
- Steel Socket Head Cap Screws M2 x 10 mm (10) (Z-S0849)
- Steel Socket Head Cap Screws M3 x 12 mm (10) (Z-S0743)
Optional Parts
- Medium Offset Hub for Racing Monster Truck Beadlock Wheels (Flat Hex) (Z-S1937)
- Narrow Offset Hub for Racing Monster Truck Beadlock Wheels (Flat Hex) (Z-S1936)
- Narrow Offset Hub for Racing Monster Truck Beadlock Wheels (Stepped Hex) (Z-S2004)
- Medium Offset Hub for Racing Monster Truck Beadlock Wheels (Stepped Hex) (Z-S2005)
Suggested Compatibility & Notes
- Suggested compatibility: RC4WD 12mm Axle Wheel Hexes (Z-S0239)
- Suggested compatibility: Axial SMT10 Grave Digger
- Suggested compatibility: 2.8” Clod tyres
- Suggested compatibility: Pro-Line 2.6” tyres; JConcepts 2.6” tyres
- For a complete truck, two sets are required (order 2x of this item).
- Tyre and wheel designs vary; outcomes with non-RC4WD products may differ.
Secured by Stripe
RC4WD Monster Truck Wheels for 2.8 Tires w/ Beadlock Rings RC4WD Manuals & Guides
Specifications
Ignitor 2.6" Monster Truck Racing Beadlock Wheels
The Ignitor 2.6" Monster Truck Racing Beadlock Wheels for Tamiya Clod Buster were designed from concept with rigorous details and as many features as are usually found in our CNC scale crawler RC wheels. Our innovative alternating threaded hole design makes it even easier to mount the beadlock rings to the tires. The 12mm hex is CNC machined from billet aluminum and is attached using six 3mm bolts for extreme durability. Both halves of the wheels are indexed for simple alignment of the screws. These will mount to any Ignitor 2.6" Monster Truck and will be a huge improvement over glue on wheels. This heavy-duty performance wheel will complete your RC monster truck and take you straight to the podium.
Specifications:
- CNC Machined Billet Aluminum Beadlock Rings and 12mm Hex
- Black Anodized FinishÂ
- ABS Plastic Injection Molded Wheels and Center Cap
- Fits 2.8 Clod Tires
- OD: 3.08in / 78.3mm
- Width: 3.73in / 94.8mm
- Negative Offset: 1.39in / 35.4mm
- Each Weight: 7.16oz / 203.0g

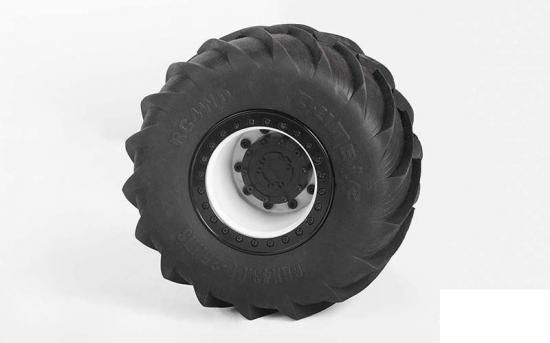

Show installed on the Rumble Monster Truck Racing Tires X2S³ (Z-T0174) for example (Not Included)

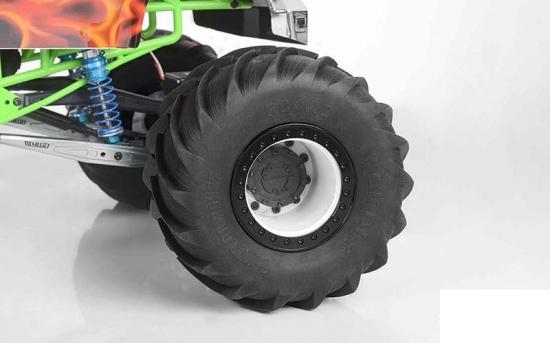

Shown installed on Axial SMT10 Grave Digger, 1/10 Crusher 4 Door Heavy Duty Truck Body (Painted) with Rumble Monster Truck Racing Tires X2S³ (Z-T0174) for example (Not Included)
Click image below to enlarge photo.

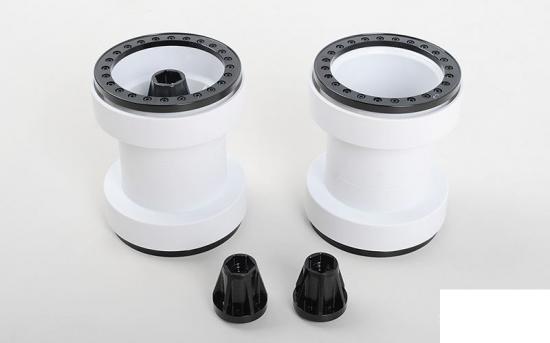

What's Included:
- 2x Ignitor 2.6" Monster Truck Racing Beadlock Wheels
- 2x Wide Offset Hub for Racing Monster Truck Beadlock Wheels (Flat Hex) - For use with flat-style 12mm hexes
- 2x Wide Offset Hub for Racing Monster Truck Beadlock Wheels (Stepped Hex) - For use with Tamiya Clod Buster & Axial AR60 12mm hexes
- 2x Socket Head Cap Screws M2 x 16mm (Black)
Replacement Hardware:
- Steel Socket Head Cap Screws M3 x 8mm (10) (Z-S1231)
- Socket Head Cap Screws M2 x 5mm (Black)
- Steel Socket Head Cap Screw M2 X 4mm (10) (Z-S0922)
- Socket Head Cap Screws M2 x 16mm (Black)
- Steel Socket Head Cap Screws M2 x 10mm (10) (Z-S0849)
- Steel Socket Head Cap Screws M3 x 12mm (10) (Z-S0743)

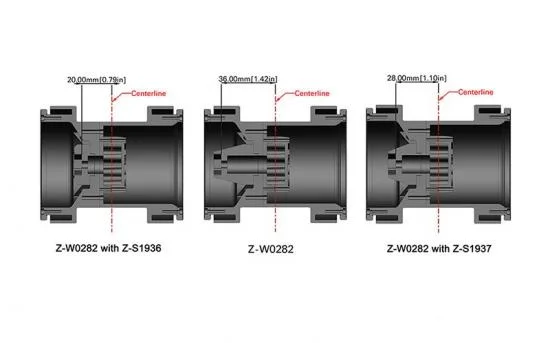

Optional Parts:
- Medium Offset Hub for Racing Monster Truck Beadlock Wheels (Flat Hex) (Z-S1937)
- Narrow Offset Hub for Racing Monster Truck Beadlock Wheels (Flat Hex) (Z-S1936)
- Narrow Offset Hub for Racing Monster Truck Beadlock Wheels (Stepped Hex) (Z-S2004)
- Medium Offset Hub for Racing Monster Truck Beadlock Wheels (Stepped Hex) (Z-S2005)
Notes:
- Fits RC4WD 12mm Axle Wheel Hexes (Z-S0239)
- Fits Axial SMT10 Grave Digger
- Fits Proline 2.6 Tires
- Fits JConcepts 2.6 Tires
- For complete truck you will need to order 2 of this item.
- Due to many different methods to design Tires and Wheels, we have no control over other manufacturers products. So we can only tell you that RC4WD Tires and Wheels work together. In some cases our Wheels and Tires will work with other brand Wheels and Tires, but we can not guarantee the outcome.
Key Info:
- Brand: RC4WD
- Part No: Z-W0282
- Barcode: 639302596005
- Fitment: Option Part
