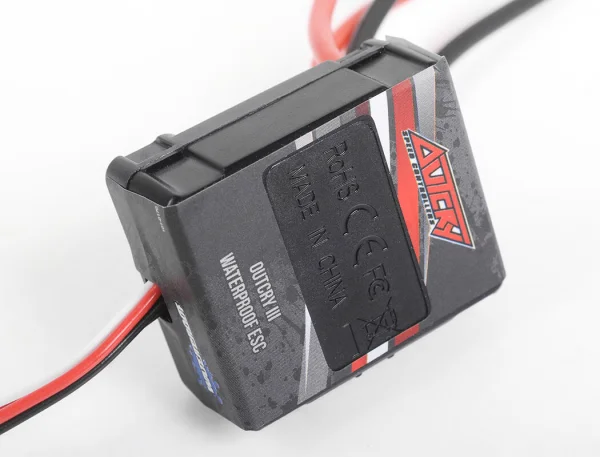

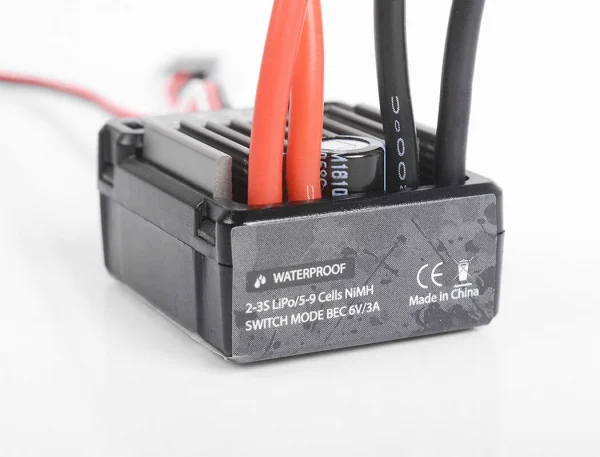

RC4WD Outcry III Dual Motor Waterproof ESC

The RC4WD Outcry III Dual Motor Waterproof ESC (Z-E0114) delivers smooth, dependable control for scale trail rigs and crawlers. Designed for dual-motor setups and all-weather running, it offers robust current handling and a compact footprint for easy installation. Suggested compatibility includes 540 brushed crawler motors.

With a 6V/3A Advanced Turbo BEC to support high-torque servos and built-in LiPo protection for 2S packs, this speed controller is engineered for confident performance on technical terrain. Its waterproof design is functional in up to 10cm of water for up to 2 hours, making it ready for real-world conditions.

Features & Specifications

• Input Voltage: 2–3S LiPo / 5–9 cells NiMH
• Advanced Turbo BEC
• BEC Output Voltage–Current: 6V–3A
• Output Current: 320A forward, 180A reverse
• Applicable to all weather conditions
• LiPo cutoff (using 2S: half speed at 6.5V, shut off at 6V)
• Proper Motors: 540 brushed motors
• Size: 1.43 x 1.26 x 0.70 in (36.5 x 32 x 18 mm)
• Weight: 1.37 oz (39 g)

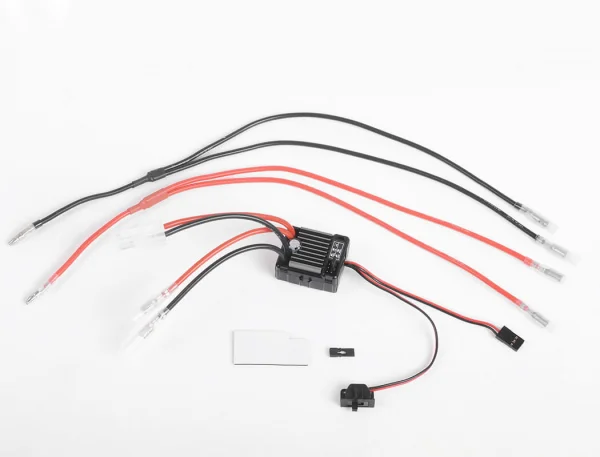

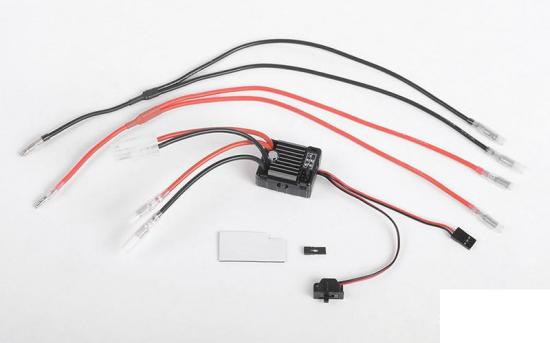

What’s Included

• 1x Outcry III Dual Motor Waterproof ESC
• 1x Running Mode Regulator

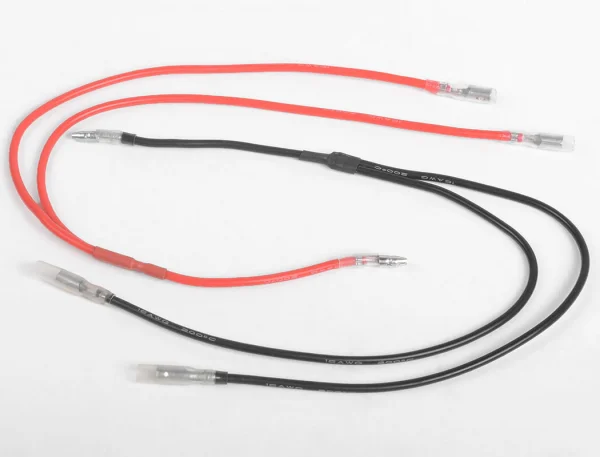

• 2x Extend Wires
• 1x 3M Double Faced Adhesive Tape
• 1x Appearance Sticker

Optional Parts

• 540 Crawler Brushed Motor 80T (Z-E0001)
• 540 Crawler Brushed Motor 65T (Z-E0002)
• 540 Crawler Brushed Motor 55T (Z-E0003)
• 540 Crawler Brushed Motor 45T (Z-E0004)
• 540 Crawler Brushed Motor 35T (Z-E0005)
• RC4WD Brushed 45T Boost Rebuildable Crawler 540 Motor (Z-E0041)
• Brushed 35T Boost Rebuildable Crawler 540 Motor (Z-E0045)
• 540 Crawler Brushed Motor 20T (Z-E0065)
• 540 Crawler Brushed Motor 27T (Z-E0067)
• "T" Style Male to Tamiya Female Connector Adapter (Z-E0087)

Instruction Manual

• Click here to download

Notes

• Prior to proceeding, remove the pinion from the motor or elevate the truck so the wheels cannot touch the ground.
• Do not touch the product while in use. The heatsink can become extremely hot.
• This product is waterproof and functional in up to 10cm of water for 2 hours.
