RC4WD R4 Ultimate Scale Single Speed Transmission
Brand: RC4WD
Part No: Z-U0031
Shadow Stock: Usually ships next day
Finance options available at checkout.
Description

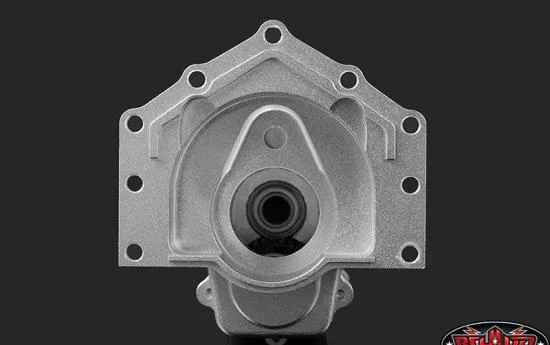

The RC4WD R4 Ultimate Scale Single Speed Transmission (Z-U0031) brings authentic scale detail and dependable performance to 1/10 crawler builds. CNC machined from billet aluminium and officially licensed by TCI Automotive, it delivers a realistic layout and robust driveline with a 10.1:1 internal ratio and 5mm output shaft.
Designed to complement the RC4WD 1/10 V8 Engine (Z-S1043) using the appropriate mounts, this R4 unit provides smooth power delivery in a compact footprint and includes key 48P gears and hardware to help integrate it into your project.
Key Specifications
- CNC machined
- Billet aluminium
- Gear ratio: 10.1:1
- Output shaft OD: 0.19in / 5mm
- Output shaft length: 0.33in / 8.5mm
- Body width: 1.99in / 50.6mm
- Body length: 3.07in / 78mm
- Body height: 2.36in / 60mm
- Weight: 5.86oz / 166g
What’s Included
- 1x RC4WD TCI Heavy Duty R4 Single Speed Scale Transmission
- 1x 14T 48P pinion gear
- 1x 36T / 20T 48P gear
- 10x M2.5 x 5mm SHCS (Silver) (Z-S1207)
- 1x Metal shield bearing 5 x 11 x 4mm (Z-S0683)
- 1x TCI transparent decal sheet
- 1x TCI small decal sheet
Replacement Parts
- Replacement Gears for R4 Transmission (Z-G0067)
Required Parts
- RC4WD 1/10 V8 Engine (Z-S1043)
Optional Parts
- Trail Finder 2 V8 Engine Mounts (Z-S1239)
- Motor Mount for R4 Transmission (Z-S1627)
Replacement Hardware
- 7x Metal shield bearing 5 x 11 x 4mm (Z-S0683)
- 1x Metal shield bearing 5 x 10 x 4mm (Z-S0686)
- 11x M2 x 6mm SHCS (Silver) (Z-S0994)
Suggested Compatibility
- Trail Finder 2 Truck Kit w/Mojave Body Set (Z-K0042 "Disc") with optional engine mounts
- RC4WD Trail Finder 2 Truck Kit w/Mojave II Body Set (Z-K0049) with optional engine mounts
- Trail Finder 2 RTR w/Mojave Body Set (Z-RTR0019 "Disc") with optional engine mounts
- RC4WD Trail Finder 2 RTR w/Mojave II Body Set (Z-RTR0024) with optional engine mounts
- Not suggested for TF2 setups using the 3/4 link (Z-S0603) / (Z-S0565)
Images may show additional components for example purposes that are not included.
Secured by Stripe
RC4WD R4 Ultimate Scale Single Speed Transmission Manuals & Guides
Specifications
RC4WD TCI Heavy Duty R4 Single Speed Scale Transmission
This is the RC4WD TCI Heavy Duty R4 Single Speed Scale Transmission. This transmission will be sure to add a whole new level of realism to your build. Pair it with our RC4WD 1/10 V8 Engine to complete your build. This has been Officially Licensed by TCI Automotive and is only available from RC4WD and our Dealers.
Specifications:
- CNC Machined
- Billet Aluminum
- Body Width: 1.99in / 50.6mm
- Body Length: 3.07in / 78mm
- Body Height: 2.36in / 60mm
- Output Shaft Length: 0.33in / 8.5mm
- Output Shaft OD: 0.19in / 5mm
- Gear Ratio: 10.1:1
- Weight: 5.86oz / 166g

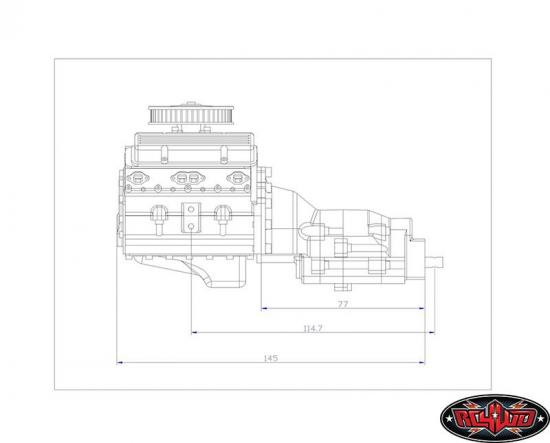

Shown installed with 1/10 V8 Engine (Z-S1043) and 540 Crawler Brushed Motor 35T (Z-E0005) for example (Not Included)
Shown installed on 1/10 V8 Engine (Z-S1043), 540 Crawler Brushed Motor 35T (Z-E0005), TF2 V8 Engine Mounts (Z-S1239) and RC4WD Trail Finder 2 Truck Kit w/Mojave II Body Set (Z-K0049) for example (Not Included)
Shown with RC4WD 1/10 V8 Scale Engine (Z-S1043), RC4WD R4 Ultimate Scale Single Speed Transmission (Z-U0031) and Chubby Mini 3 TON Scale Jack Stands (Z-S0731) for example (Not Included).

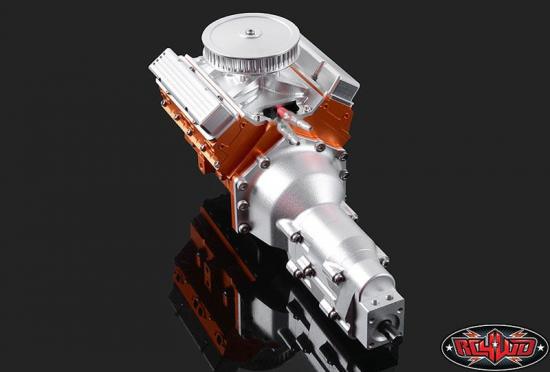

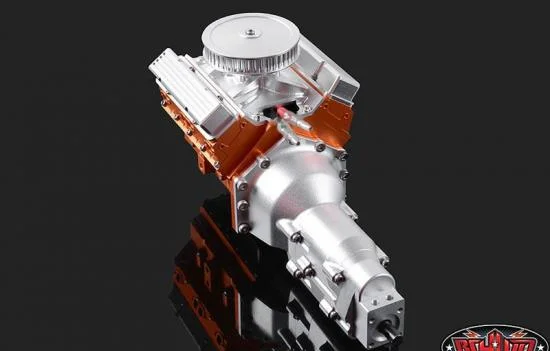

Shown with V8 Motor (Not Included)

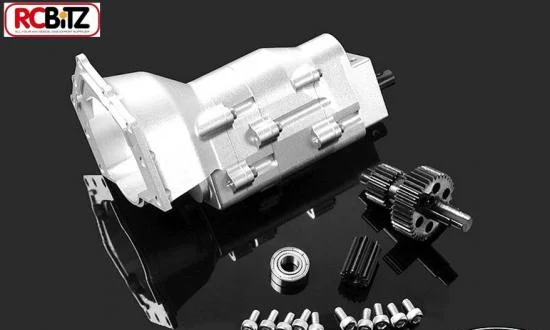

What's Included:
- 1x RC4WD TCI Heavy Duty R4 Single Speed Scale Transmission
- 1x 14T 48P Pinion Gear
- 1x 36T / 20T 48P Gear
- 10x M2.5 x 5mm SHCS (Silver) (Z-S1207)
- 1x Metal Shield Bearing 5 x 11 x 4mm (Z-S0683)
- 1x TCI Transparent Decal Sheet
- 1x TCI Small Decal Sheet
Replacement Parts:
- Replacement Gears for R4 Transmission (Z-G0067)
Required Parts:
- 1/10 V8 Engine (Z-S1043)
Optional Parts:
- Trail Finder 2 V8 Engine Mounts (Z-S1239)
- Motor Mount for R4 Transmission (Z-S1627)
Replacement Hardware:
- 7x Metal Shield Bearing 5 x 11 x 4mm (Z-S0683)
- 1x Metal Shield Bearing 5 x 10 x 4mm (Z-S0686)
- 11x M2 X 6mm SHCS (Silver) (Z-S0994)
Notes:
- Fits Trail Finder 2 Truck Kit w/Mojave Body Set (Z-K0042 "Disc") with Optional Engine Mounts
- Fits RC4WD Trail Finder 2 Truck Kit w/Mojave II Body Set (Z-K0049) with Optional Engine Mounts
- Fits Trail Finder 2 RTR w/Mojave Body Set (Z-RTR0019 "Disc") with Optional Engine Mounts
- Fits RC4WD Trail Finder 2 RTR w/Mojave II Body Set (Z-RTR0024) with Optional Engine Mounts
- This product can't be installed on TF2 with the 3/4 link (Z-S0603) / (Z-S0565)
TCI Automotive is a registered trademark of COMP Performance Group. The TCI Automotive logo is properly of COMP Performance Group and used under license to RC4WD.
Key Info:
- Brand: RC4WD
- Part No: Z-U0031
- Barcode: 639302581445
