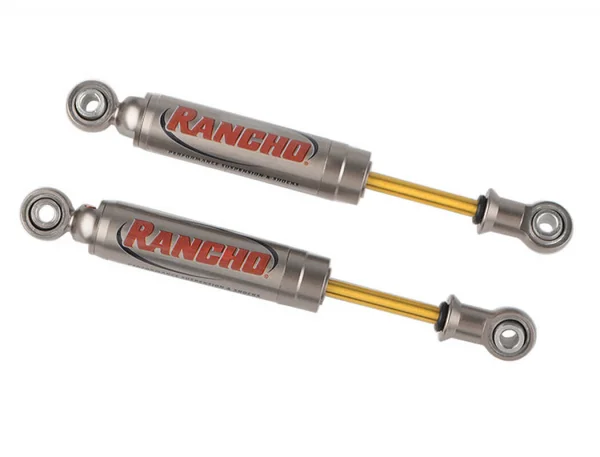

RC4WD Rancho Rs9000 XL Shock Absorbers 80mm V2

Bring proven performance and scale detail to your crawler with the RC4WD Rancho RS9000 XL Shock Absorbers 80mm V2 (Z-D0013). These licensed shocks introduce RC4WD’s latest X-ring technology to reduce friction and improve oil retention around the shaft for smoother, more consistent damping. Machined billet aluminium bodies, an internal spring design and titanium nitride coated shafts complete a durable, rock-ready package.

Designed to be oil filled, this V2 update delivers precise, low-stiction movement that suits technical trail driving and scale builds alike. The 80mm hole-to-hole length makes them a popular option for many 1/10 crawlers seeking reliable suspension performance and an authentic Rancho look.

Features

• Machined billet aluminium construction
• Internal spring design
• X-ring gaskets for reduced friction and better oil retention
• Titanium nitride coated shock shafts

Specifications

• Hole to hole (compressed): 2.45in / 62.2mm
• Hole to hole (uncompressed): 3.15in / 80mm
• Overall length: 3.50in / 88.8mm
• Travel length: 0.70in / 17.8mm
• Shock body OD: 0.39in / 10mm
• Shaft OD: 0.11in / 3.0mm
• Weight (each): 0.35oz / 10.0g

What’s Included

• 2 x RC4WD Rancho RS9000 XL Shock Absorbers (80mm) (V2)

Suggested Compatibility

• RC4WD Trail Finder 2 Truck Kit "SWB" (Z-K0045)
• RC4WD Trail Finder 2 "LWB" 1/10 Scale Builders Kit (Z-K0065)
• RC4WD Trail Finder 2 Truck 1/10 Scale Builders Kit (Z-K0069)
• RC4WD Trail Finder 2 Truck Kit w/1982 Toyota Pickup Hard Body Complete Set (Z-K0070)
• RC4WD Trail Finder 2 RTR w/1985 Toyota 4Runner Hard Body Set (Red) (Z-RTR0063)
• RC4WD Trail Finder 2 "LWB" RTR w/ 1987 Toyota XtraCab Hard Body Set (White) (Z-RTR0064)
• RC4WD Trail Finder 2 "LWB" RTR w/ Chevrolet K10 Scottsdale Hard Body Set (Black) (Z-RTR0067)
• RC4WD Trail Finder 2 RTR w/Chevrolet Blazer Body Set (Midnight Edition) (Z-RTR0068)
• RC4WD Trail Finder 2 RTR w/1982 Toyota Pickup Hard Body Set (Blue) (Z-RTR0069)
• RC4WD Trail Finder 2 RTR w/1982 Toyota Pickup Hard Body Set (Red) (Z-RTR0070)
• RC4WD Trail Finder 2 "LWB" RTR w/ Chevrolet K10 Scottsdale Hard Body Set (Scale Dept. Edition) (Z-RTR0071)

Notes & Tips

• Apply blue (medium) thread lock to the bottom shock shaft rod end before installation.
• These X-ring shocks are designed to be oil filled for smooth damping.
