RC4WD Reaper Tube Back for RC4WD TF2 and Axial SCX10 II RC4WD

The RC4WD Reaper Tube Back (VVV-C0625) delivers a scale tube-bed look and added rear protection for trail rigs. Crafted from billet aluminium, hand welded and finished in a durable black powder coat, it offers a tidy, robust solution for scale crawlers.

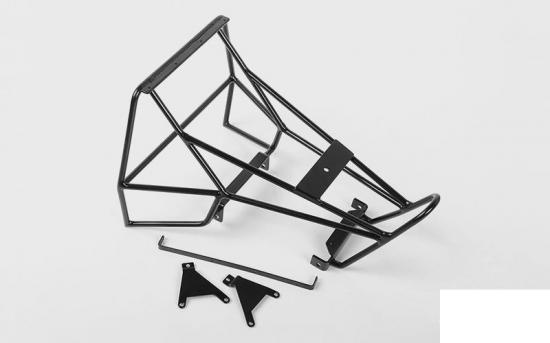

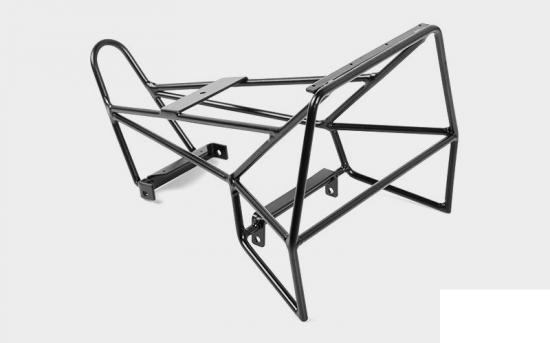

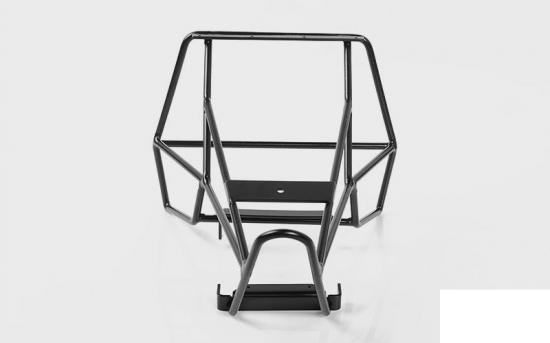

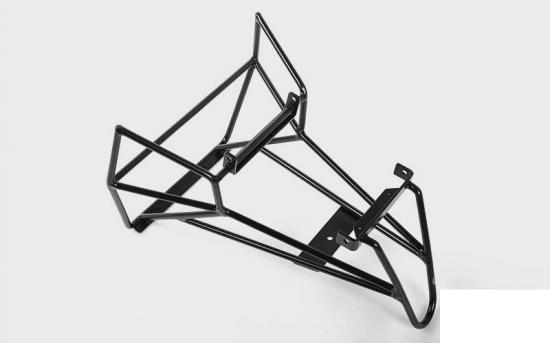

Images show the Reaper Tube Back installed on an Axial SCX10 II with RC4WD Fuel Mud Gripper M/T 1.7" Scale Tyres (Z-T0133) and RC4WD Raceline Monster 1.7" Beadlock Wheels (Z-W0201) for example use; these items are not included.

Specifications

• Billet Aluminum
• Hand Welded
• Black Powder-coated Finish
• Width: 7.02in / 178.2mm
• Length: 9.05in / 230.2mm
• Height: 5.45in / 138.4mm
• Total Weight: 6.27oz / 177.7g

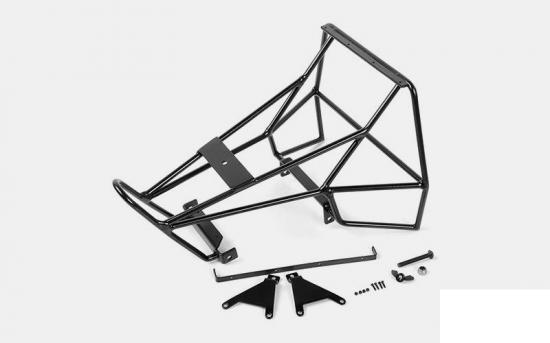

What’s Included

• 1x Reaper Tube Back for RC4WD TF2 and Axial SCX10 II
• 1x Long U-shaped Mounting Bracket
• 2x Shock Mounting Brackets
• 4x M1.4 x 6mm Cross Head Cap Screws (Black)
• 4x Regular M1.4 Black Nuts
• 1x M4 x 30mm Steel Button Head Cap Screws (Black)
• 1x Nylock Nut M4 (Silver)
• 1x M4 Plastic Lock Nut

Replacement Hardware

• M1.4 x 6mm Cross Head Cap Screws
• Regular M1.4 Black Nuts
• Steel Button Head Cap Screws M4 x 30mm (Z-S1392)
• Nylock Nuts M4 (Silver) (Z-S1265)
• M4 Plastic Lock Nut

Notes

• Suggested compatibility: TF2 chassis
• Suggested compatibility: SCX10 II chassis
