RC4WD Rogue 1.7 Beadlock Wheels (Z-W0315)

Brand: RC4WD

Part No: Z-W0315

£118.79 RRP £119.99
Pre-Order

Finance options available at checkout.

Request Price Match Ask a Question Write a Review

Description

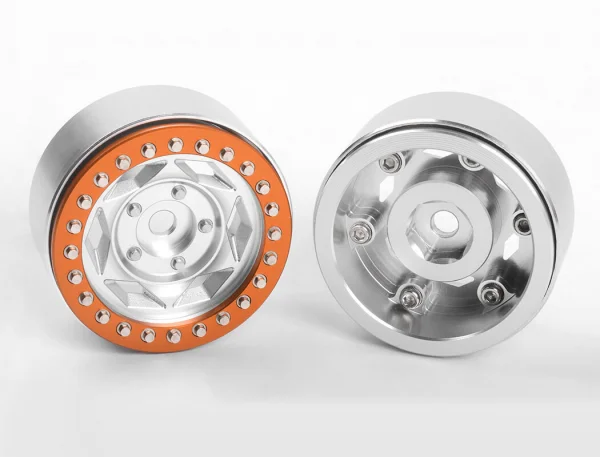

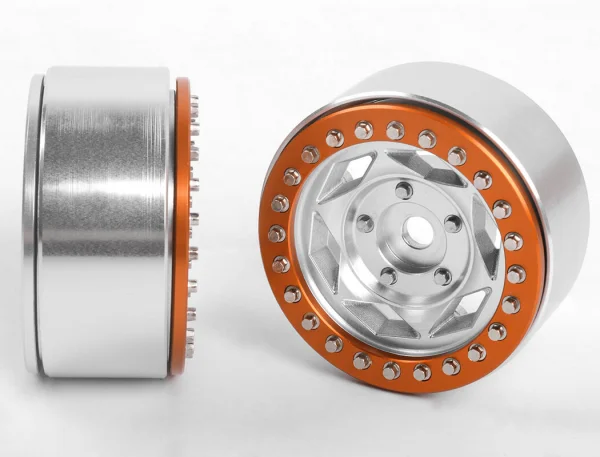

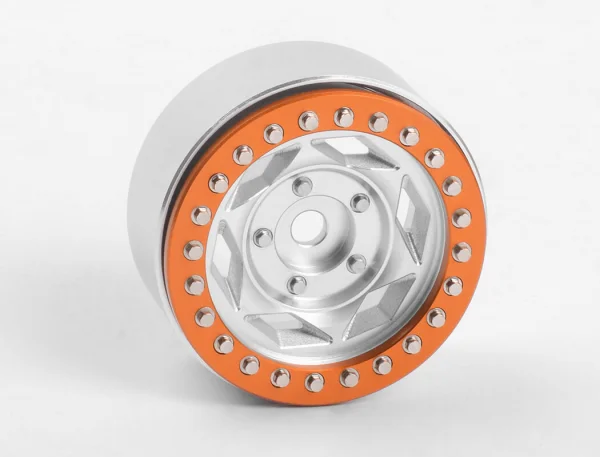

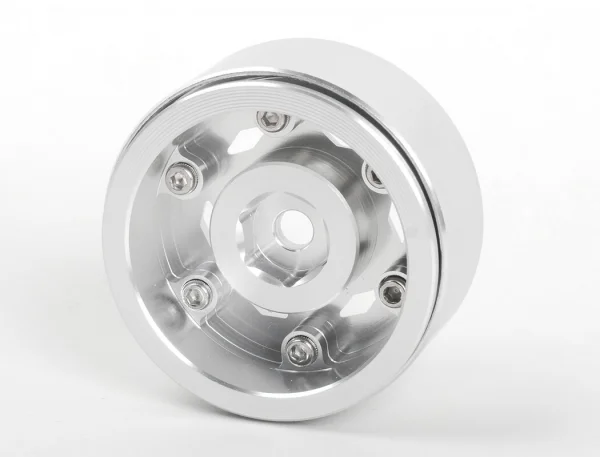

The RC4WD Rogue 1.7" Beadlock Wheels (Z-W0315) deliver classic scale looks with the strength of CNC-machined billet aluminium. Finished in silver anodising and built with a zero offset, these 1.7-inch beadlocks are ideal for scale crawlers seeking durability, precision and authentic detail.

Key Specifications

  • CNC machined billet aluminium construction
  • Silver anodised finish
  • Wheel size: 1.7"
  • Zero offset
  • Outer diameter (OD): 1.88in / 48.0mm
  • Width: 0.98in / 25.0mm
  • Centre hole OD: 0.20in / 5.2mm
  • Each wheel weighs: 1.76oz / 50.0g

What’s Included

  • 4x RC4WD Rogue 1.7" Beadlock Wheels
  • 1x Miniature Scale Hex Bolt Tool (M2 Hex) (Z-S0626)

Replacement Hardware

  • Socket Head Cap Screw M2.5 x 6mm (Z-S0900)
  • RC4WD Miniature Scale Hex Bolts (M2 x 5mm) Silver (Z-S0624)
  • Socket Head Cap Screws M2.5 x 10mm (Z-S0736)
  • Miniature Scale Hex Bolt Tool (M2 Hex) (Z-S0626)

Suggested Compatibility

  • RC4WD Gelande II RTR Truck Kit w/Cruiser Body Set (Z-RTR0029)
  • RC4WD Trail Finder 2 RTR w/Mojave II Body Set (Z-RTR0024)
  • RC4WD Trail Finder 2 "LWB" RTR w/Mojave II Four Door Body Set (Z-RTR0030)
  • RC4WD Gelande II Truck Kit w/Cruiser Body Set (Z-K0051)
  • RC4WD Trail Finder 2 Truck Kit w/Mojave II Body Set (Z-K0049)
  • RC4WD Trail Finder 2 Truck Kit "LWB" w/Mojave II Four Door Body Set (Z-K0058)
  • RC4WD Gelande II Truck Kit w/D90 Body Set (Z-K0001)
  • Axial SCX10 / SCX10 II
  • Traxxas TRX-4 Land Rover Defender and '79 Bronco Ranger XLT
  • Vaterra Ascender
  • HPI Venture FJ Cruiser
  • Axial Wraith

Notes

  • Traxxas TRX-4 trucks may require the RC4WD 12mm Wheel Hex Conversion (Z-S1844).
  • RC4WD tyres and wheels are designed to work together; compatibility with other brands can vary.

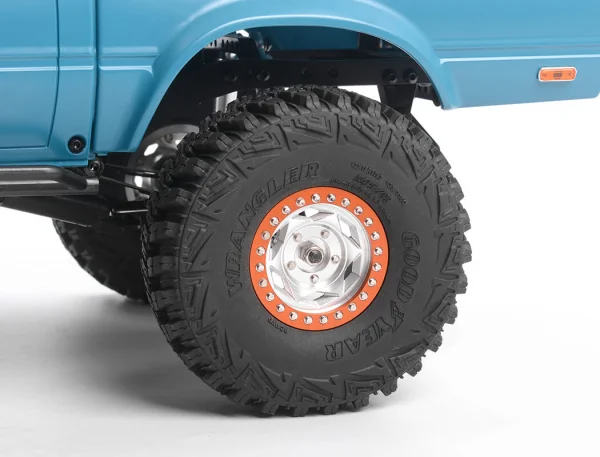

  • Photos show examples using RC4WD Goodyear Wrangler MT/R 1.7" Scale Tyres (Z-T0157) and various vehicles; tyres and vehicles are not included.
Free Shipping

On UK Orders over £100
Happy to Help

Helpful, friendly advice
28 Day Returns

Easy returns process
Secure Payments

Secured by Stripe

RC4WD Rogue 1.7 Beadlock Wheels RC4WD Manuals & Guides

Specifications

RC4WD Rogue 1.7" Beadlock Wheels
Specifications:

  • CNC Machined
  • Billet Aluminum
  • Silver Anodized Finish
  • Wheel Size: 1.7"
  • Zero Offset
  • OD: 1.88in / 48.0mm
  • Width: 0.98in / 25.0mm
  • Center Hole OD: 0.20in / 5.2mm
  • Each Weigh: 1.76oz / 50.0g

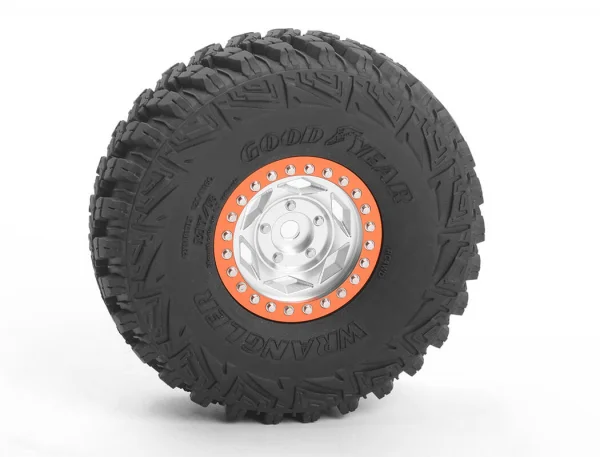

Shown installed with RC4WD Goodyear Wrangler MT/R 1.7" Scale Tires (Z-T0157) for example (Not Included)

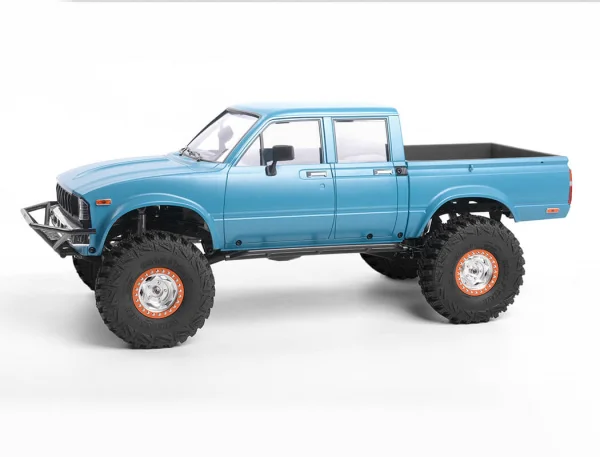

Shown installed on RC4WD Trail Finder 2 "LWB" RTR w/Mojave II Four Door Body Set (Z-RTR0030) with RC4WD Goodyear Wrangler MT/R 1.7" Scale Tires (Z-T0157) for example (Not Included)
Click image below to enlarge photo.
What's Included:
  • 4x RC4WD Rogue 1.7" Beadlock Wheels
  • 1x Miniature Scale Hex Bolt Tool (M2 Hex) (Z-S0626)

Replacement Hardware:
  • Socket Head Cap Screw M2.5 X 6mm (Z-S0900)
  • RC4WD Miniature Scale Hex Bolts (M2 x 5mm) (Silver) (Z-S0624)
  • Socket Head Cap Screws M2.5 X 10mm (Z-S0736)
  • Miniature Scale Hex Bolt Tool (M2 Hex) (Z-S0626)

Notes:
  • Fits RC4WD Gelande II RTR Truck Kit w/Cruiser Body Set (Z-RTR0029)
  • Fits RC4WD Trail Finder 2 RTR w/Mojave II Body Set (Z-RTR0024)
  • Fits RC4WD Trail Finder 2 "LWB" RTR w/Mojave II Four Door Body Set (Z-RTR0030)
  • Fits RC4WD Gelande II Truck Kit w/Cruiser Body Set (Z-K0051)
  • Fits RC4WD Trail Finder 2 Truck Kit w/Mojave II Body Set (Z-K0049)
  • Fits RC4WD Trail Finder 2 Truck Kit "LWB" w/ Mojave II Four Door Body Set (Z-K0058)
  • Fits RC4WD Gelande II Truck Kit w/D90 Body Set (Z-K0001)
  • Fits Axial SCX10
  • Fits Axial SCX10 II
  • Fits Traxxas TRX-4 Land Rover Defender
  • Fits Traxxas TRX-4 '79 Bronco Ranger XLT
  • Fits Vaterra Ascender
  • Fits HPI Venture FJ Cruiser
  • Fits Axial Wraith
  • Installing on Traxxas TRX-4  trucks requires the RC4WD 12mm Wheel Hex Conversion for Traxxas TRX-4 (Z-S1844)
  • Due to many different methods to design tires and wheels, we have no control over other manufacturers products, so we can only tell you that RC4WD tires and wheels work together. In some cases, our wheels and tires will work with other brand wheels and tires, but we can not guarantee the outcome.

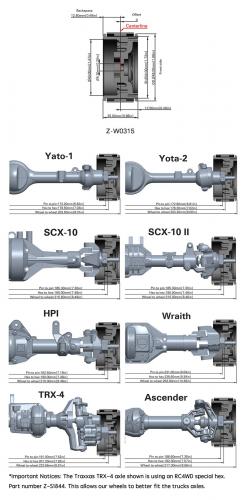

Click here to download the RC4WD full wheel comparison list.

Key Info:
  • Brand: RC4WD
  • Part No: Z-W0315
  • Barcode: 639302600429
