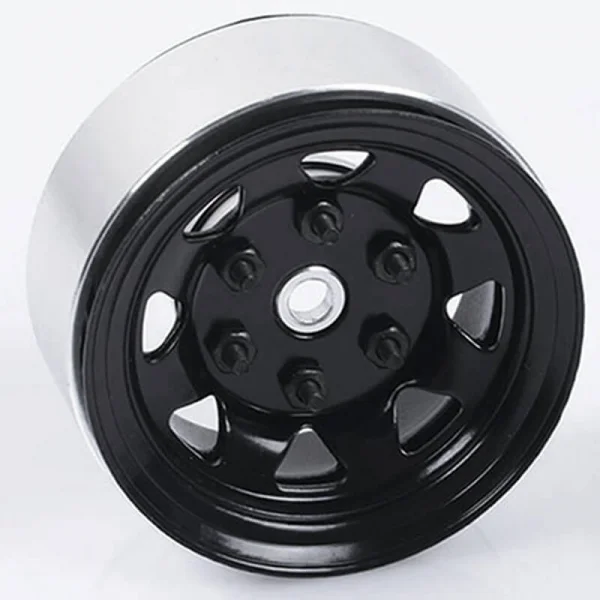

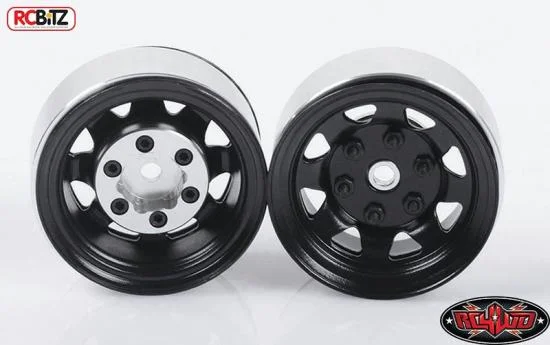

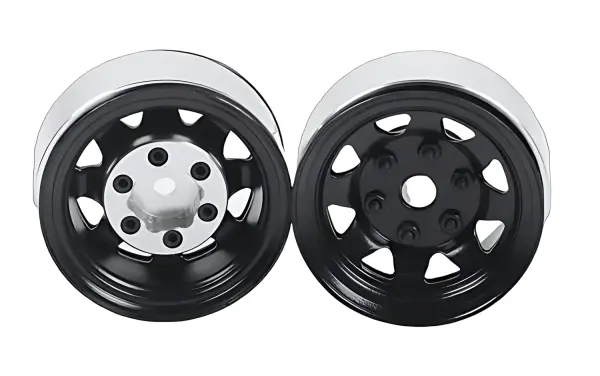

RC4WD Stamped Steel 1.55 Stock Black Beadlock Wheel

The RC4WD Stamped Steel 1.55 Stock Black Beadlock Wheel set (Z-W0036) delivers authentic scale realism and durability. Stamped steel construction with a beadlock ring and classic 6‑lug pattern provides a true stock look that can develop a natural rust patina over time. Engineered by RC4WD Team UK, these wheels feature an internal beadlock and a removable centre hub, and fit standard 12mm hex hubs. Supplied as a set of four.

Features

• Stamped steel construction with 6‑lug design

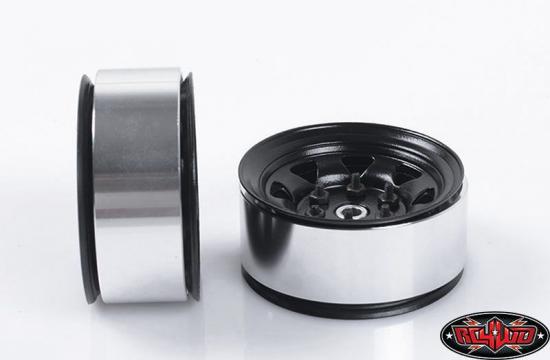

• Internal beadlock system

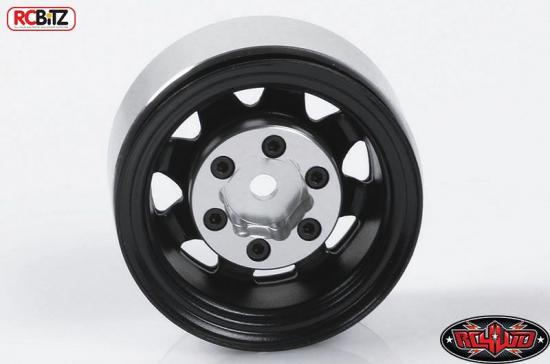

• Removable centre hub
• Fits standard 12mm hex
• Designed for 1.55in tyres
• Black finish for scale appearance

Specifications

• Wheel size: 1.55in
• Wheel width: 0.85in / 21.8mm
• Negative offset: 0.37in / 9.5mm
• Outer diameter (OD): 1.42in / 36.2mm
• Weight (each): 1.23oz / 34g

What’s Included

• 4x RC4WD Stamped Steel 1.55 Stock Beadlock Wheels (Black)
• 2x M2x16mm SHCS

Replacement Hardware

• 24x M2 x 10mm SHCS (Black) — Z-S0849
• 24x M2 Nuts (Black) — Z-S1144

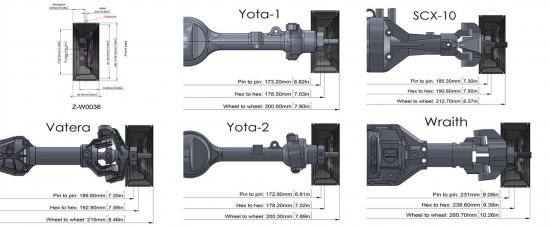

Optional Offset Hexes

• 1.5 & 1.7 Steel Wheel Hex Hub with Brake Rotor — Z-S0529
• Stamped 1.55 and 1.7 Beadlock Wheel Hex Hubs — Z-S0737

Single Wheel Option

• Single wheel — Z-Q0008

Suggested Compatibility

• RC4WD 1.55 tyres
• Pitbull Growler 1.55 Scale Tyres
• HPI Mini Trophy Desert Truck

Notes

• Second‑generation design uses a hex mount (easier with M4 lock nuts).
• Designed to fit 1.55in tyres only. For the HPI Mini Trophy Truck, RC4WD 1.55 tyres are required.
• Cross‑brand tyre/wheel fitment can vary and is not guaranteed.

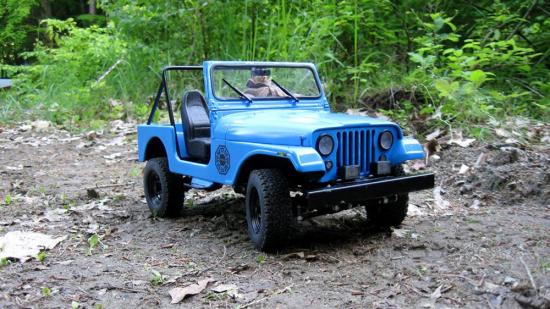

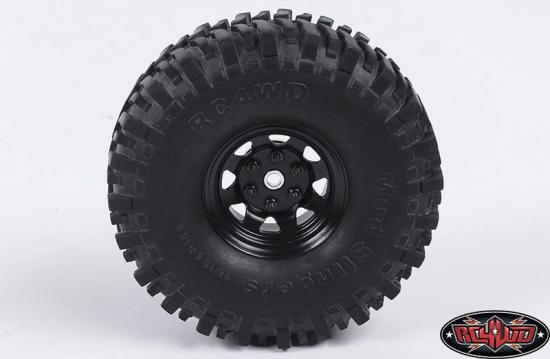

• Images may show Mud Slingers 1.55 Offroad Tyres (Z‑T0006) and customer vehicles; not included.

Instructions

• Wheel assembly
