RC4WD Stocker 1.0 Beadlock Wheels (4)

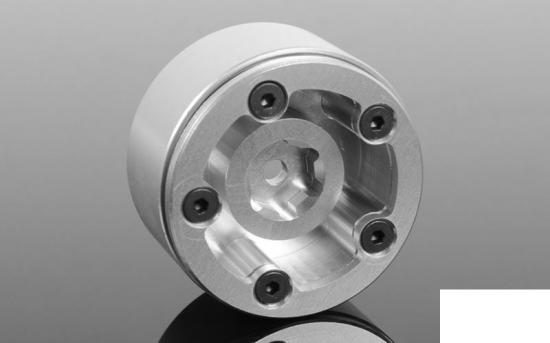

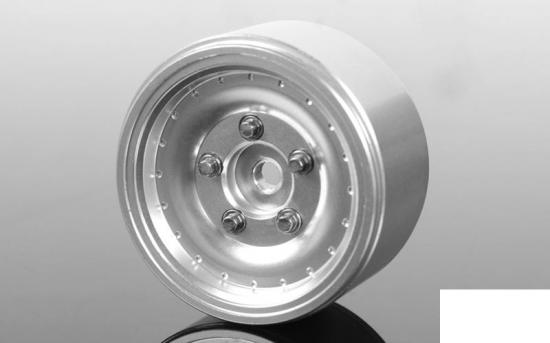

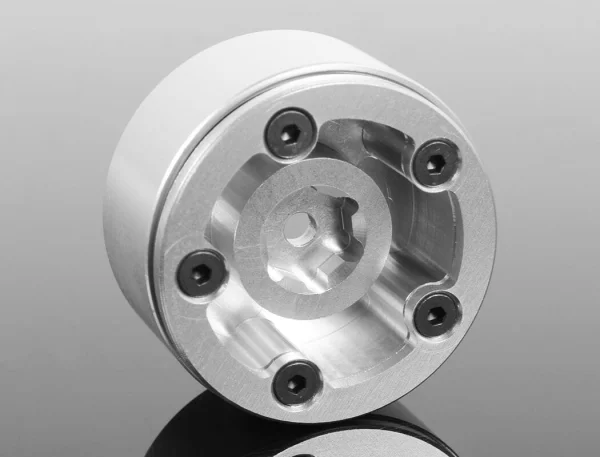

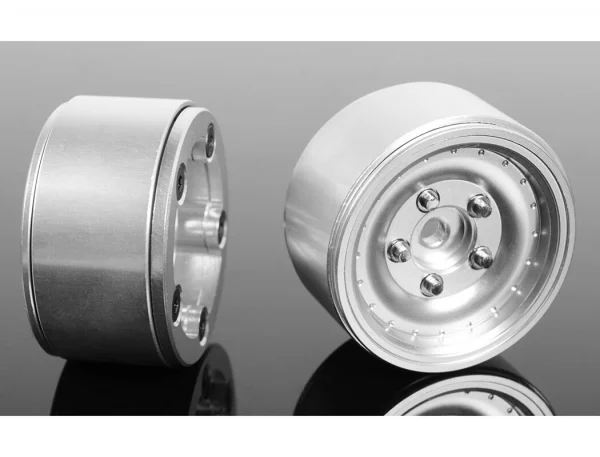

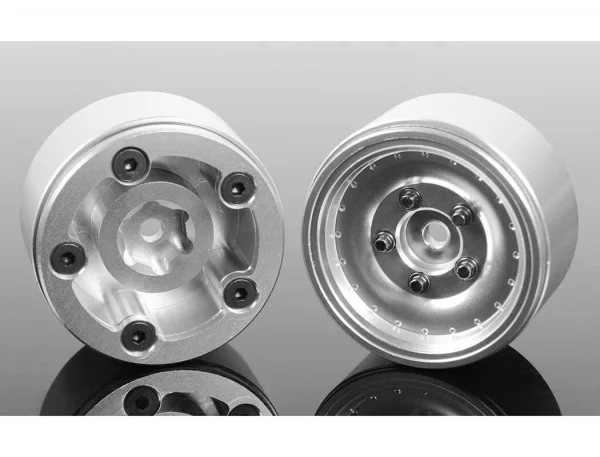

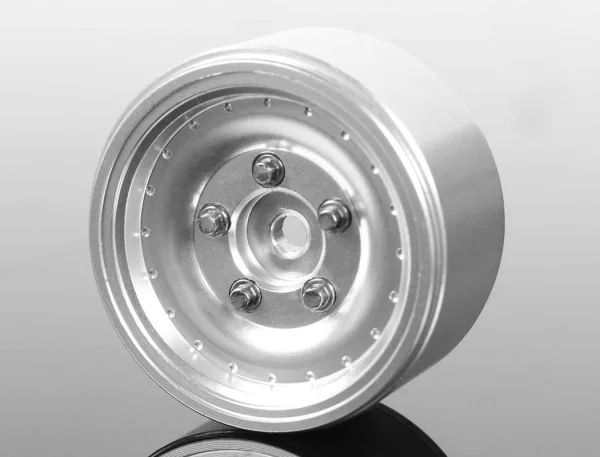

The RC4WD Stocker 1.0" Beadlock Wheels (Z-W0275) deliver scale looks and secure beadlock performance for micro crawlers. CNC machined from billet aluminium and designed for a standard 7mm hex, this set of four 1.0" wheels is a robust upgrade from plastic alternatives.

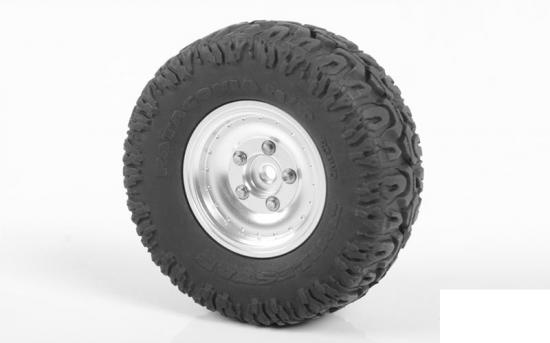

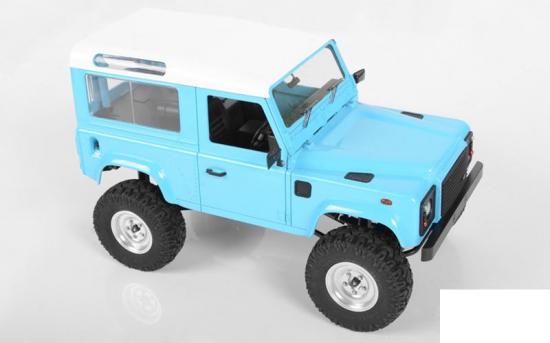

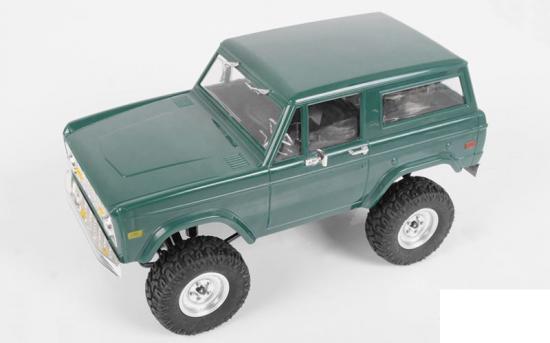

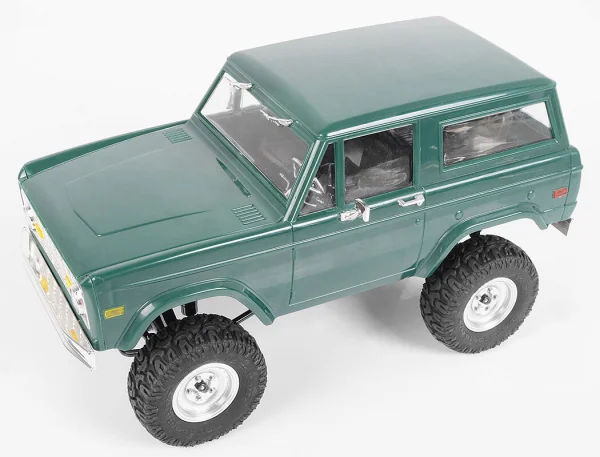

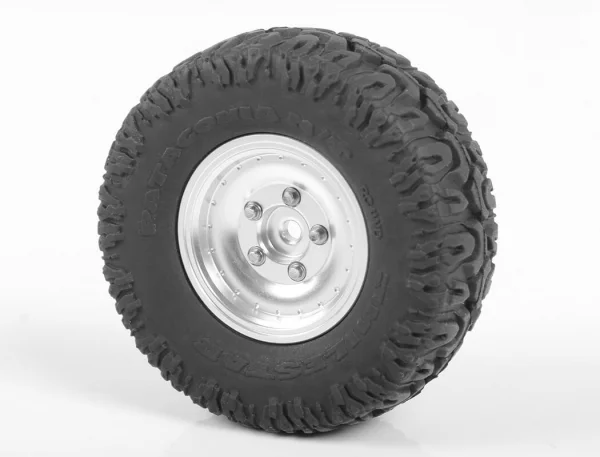

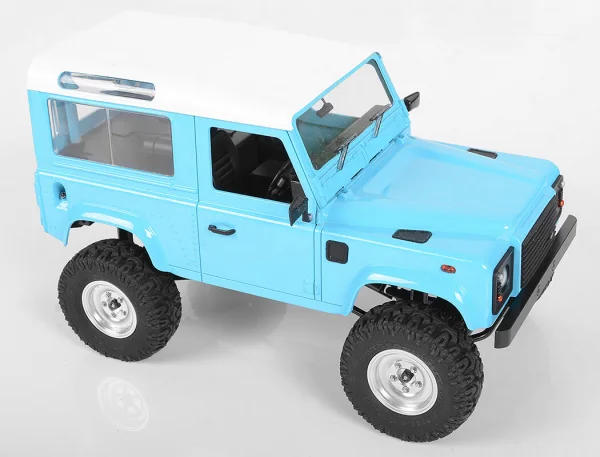

Shown installed with RC4WD Milestar Patagonia M/T 1.0" Micro Crawler Tyres (Z-T0164) and on RC4WD 1/18 Gelande II RTR vehicles for example; tyres and vehicles are not included.

Key Features

• CNC machined billet aluminium construction
• Beadlock design for 1.0" size tyres
• Fits standard 7mm hex hubs
• Compact dimensions ideal for micro crawler applications

Specifications

• Wheel size: 1.0"
• Outer diameter (OD): 1.09in / 27.5mm
• Width: 0.60in / 15.4mm
• Centre hole OD: 0.1in / 2.5mm
• Positive offset: 0.27in / 7.0mm
• Weight (each): 0.49oz / 13.9g

What’s Included

• 4x RC4WD Stocker 1.0" Beadlock Wheels
• 1x Miniature Scale Hex Bolt Tool for M1.6 scale bolts (1.5mm hex)

Replacement Hardware

• Steel Flat Head Cap Screw M2 x 6mm (Z-S1518)
• RC4WD Miniature Scale Hex Bolts (M1.6 x 2mm) Silver (Z-S1809)
• Miniature Scale Hex Bolt Tool for M1.6 Scale Bolts (1.5mm Hex) (Z-S1328)

Suggested Compatibility

• RC4WD 1/18 Gelande II RTR w/D90 Body Set (Blue) (Z-RTR0039)
• RC4WD 1/18 Gelande II RTR w/BlackJack Body Set (Z-RTR0036)
• RC4WD 1/18 Gelande II RTR w/Black Rock Body Set (Z-RTR0037)
• RC4WD 1/18 Gelande II RTR w/D90 Body Set (Black) (Z-RTR0038)

Notes

• RC4WD wheels and tyres are designed to work together. Other brand combinations may work, but outcomes cannot be guaranteed.
