RC4WD Superlift Driveshaft Alignment Degree Shims

Fine-tune your driveline with the RC4WD Superlift Driveshaft Alignment Degree Shims (Z-S0290). This CNC machined set is intended to address driveshaft alignment and help cure incorrect pinion angle, with multiple shim angles to match your setup.

Features

• CNC machined
• Designed to help cure incorrect pinion angle
• Includes 5°, 8°, 10° and 13° shims

Dimensions

• 5° Shim: Length 22.0 mm (0.866 inch); Width 5.84 mm (0.23 inch); Height 2.0 mm (0.078 inch)
• 8° Shim: Length 22.0 mm (0.866 inch); Width 5.84 mm (0.23 inch); Height 3.0 mm (0.118 inch)
• 10° Shim: Length 22.0 mm (0.866 inch); Width 5.84 mm (0.23 inch); Height 4.0 mm (0.157 inch)
• 13° Shim: Length 22.15 mm (0.872 inch); Width 5.84 mm (0.23 inch); Height 5.0 mm (0.196 inch)

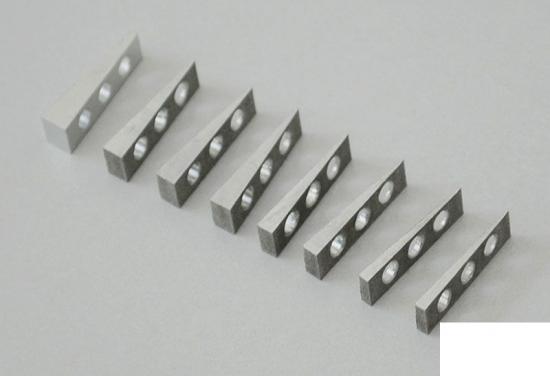

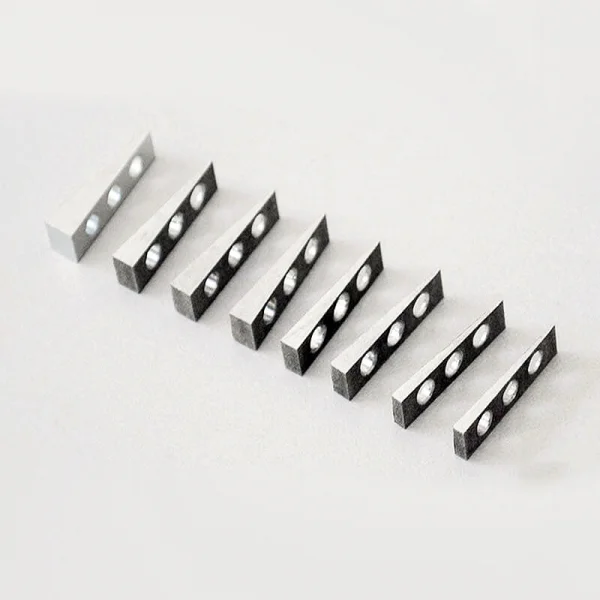

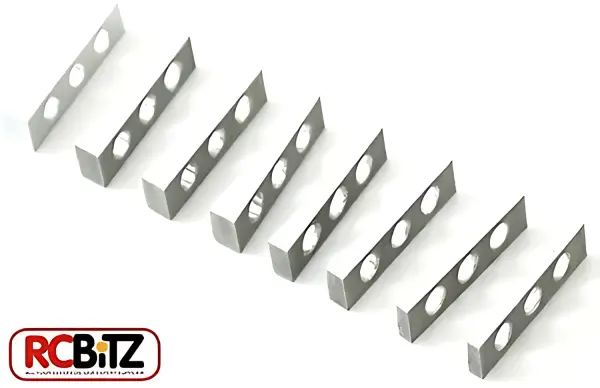

What’s Included

• 2x 5° shims
• 2x 8° shims
• 2x 10° shims
• 2x 13° shims
• 1x Superlift decal sheet
