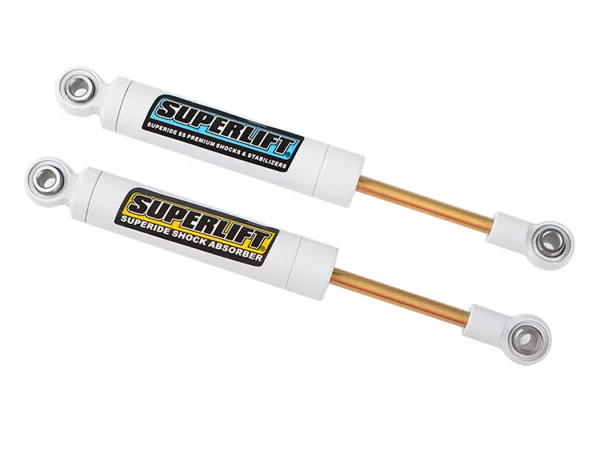

RC4WD Superlift Superide Scale Scale Shock Absorbers 90mm

The RC4WD Superlift Superide Scale Shock Absorbers 90mm deliver a clean, scale look for 1/10 builds. Precision CNC-machined from billet aluminium with a smooth white painted finish, these shocks feature an internal spring design and steel rod end balls. A practical upgrade or replacement option from RC4WD, part number Z-D0028.

Features

• CNC Machined
• Billet Aluminium
• Smooth White Painted Finish
• Internal Spring Design
• Steel Rod End Ball

Specifications

• Hole to Hole (Compressed): 2.62in / 66.5mm
• Hole to Hole (Uncompressed): 2.76in / 90mm
• Overall Length: 3.91in / 99.2mm
• Travel Length: 0.92in / 23.5mm
• Shock Body OD: 0.39in / 10.0mm
• Shaft OD: 0.11in / 3.00mm
• Each Shock Weighs: 0.40oz / 11.4g

What’s Included

• 2 x RC4WD Superlift Superide Scale Shock Absorbers 90mm
• 1 x Superlift Decal Sheet

Suggested Compatibility

• RC4WD Trail Finder 2 "LWB" 1/10 Scale Builders Kit (Z-K0065)
• RC4WD Trail Finder 2 Truck 1/10 Scale Builders Kit (Z-K0069)
• RC4WD Trail Finder 2 Truck Kit w/1982 Toyota Pickup Hard Body Complete Set (Z-K0070)
• RC4WD Marlin Crawler Trail Finder 2 RTR w/Mojave II Crawler Body Set (Z-RTR0034)
• RC4WD Trail Finder 2 RTR w/1985 Toyota 4Runner Hard Body Set (Red) (Z-RTR0063)
• RC4WD Trail Finder 2 "LWB" RTR w/ 1987 Toyota XtraCab Hard Body Set (White) (Z-RTR0064)
• RC4WD Trail Finder 2 "LWB" RTR W/ Chevrolet K10 Scottsdale Hard Body Set (Red) (Z-RTR0066)
• RC4WD Trail Finder 2 "LWB" RTR W/ Chevrolet K10 Scottsdale Hard Body Set (Black) (Z-RTR0067)
• RC4WD Trail Finder 2 RTR w/Chevrolet Blazer Body Set (Midnight Edition) (Z-RTR0068)
• RC4WD Trail Finder 2 RTR w/1982 Toyota Pickup Hard Body Set (Blue) (Z-RTR0069)
• RC4WD Trail Finder 2 RTR w/1982 Toyota Pickup Hard Body Set (Red) (Z-RTR0070)

Notes

• Use blue (medium) thread lock on the bottom shock shaft rod end before installing to help keep it in place.
