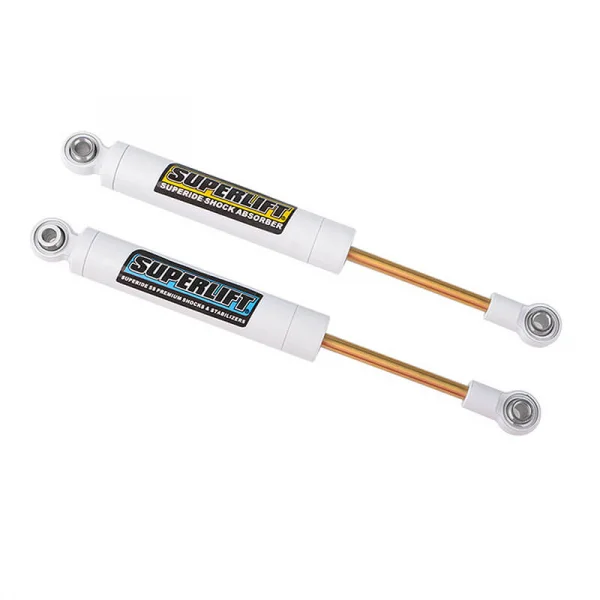

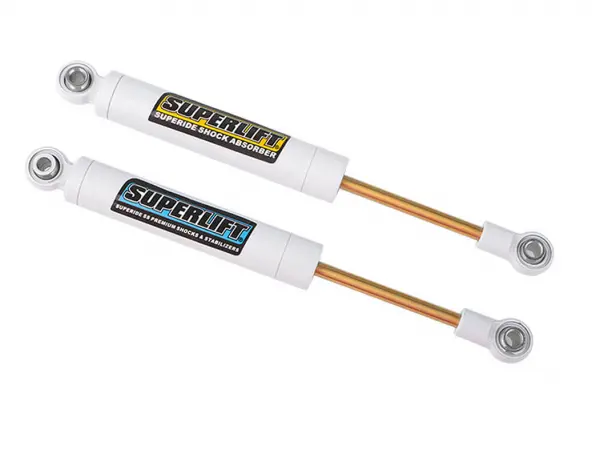

RC4WD Superlift Superide Scale Scale Shock Absorbers 100mm

The RC4WD Superlift Superide 100mm Scale Shock Absorbers deliver smooth, reliable suspension performance with true scale looks. Precision CNC machined from billet aluminium and finished in smooth white, these internal-spring shocks offer a clean, leak-free design suited to scale crawlers and trail rigs. Supplied as a matched pair under part number Z-D0029.

Features

• CNC machined construction
• Billet aluminium bodies
• Smooth white painted finish
• Internal spring design

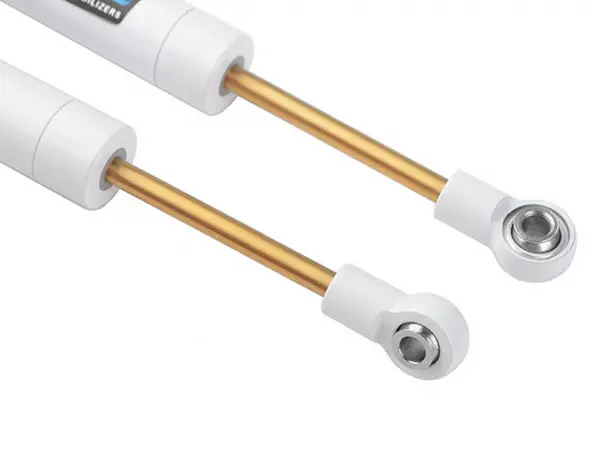

• Steel rod end ball

Specifications

• Hole to hole (compressed): 72.2mm (2.84in)
• Hole to hole (uncompressed): 100mm (3.94in)
• Overall length: 109.2mm (4.30in)
• Travel length: 27.8mm (1.09in)
• Shock body OD: 10.0mm (0.39in)
• Shaft OD: 3.00mm (0.11in)
• Weight (each): 12.0g (0.42oz)

What’s Included

• 2 x RC4WD Superlift Superide Scale Shock Absorbers 100mm
• 1 x Superlift decal sheet

Suggested Compatibility

• RC4WD Trail Finder 2 "LWB" 1/10 Scale Builders Kit (Z-K0065)
• RC4WD Trail Finder 2 Truck 1/10 Scale Builders Kit (Z-K0069)
• RC4WD Trail Finder 2 Truck Kit w/1982 Toyota Pickup Hard Body Complete Set (Z-K0070)
• RC4WD Trail Finder 2 RTR w/1985 Toyota 4Runner Hard Body Set (Red) (Z-RTR0063)
• RC4WD Trail Finder 2 "LWB" RTR w/ 1987 Toyota XtraCab Hard Body Set (White) (Z-RTR0064)
• RC4WD Trail Finder 2 "LWB" RTR w/ Chevrolet K10 Scottsdale Hard Body Set (Red) (Z-RTR0066)
• RC4WD Trail Finder 2 "LWB" RTR w/ Chevrolet K10 Scottsdale Hard Body Set (Black) (Z-RTR0067)
• RC4WD Trail Finder 2 RTR w/ Chevrolet Blazer Body Set (Midnight Edition) (Z-RTR0068)
• RC4WD Trail Finder 2 RTR w/1982 Toyota Pickup Hard Body Set (Blue) (Z-RTR0069)
• RC4WD Trail Finder 2 RTR w/1982 Toyota Pickup Hard Body Set (Red) (Z-RTR0070)

Installation Notes

• Apply medium (blue) thread lock to the bottom shock shaft rod end before installing to help keep it secure.
