RC4WD TEQ Ultimate Scale Cast Axle (Front) RC4WD

TEQ Ultimate Scale Cast Axle (Front)

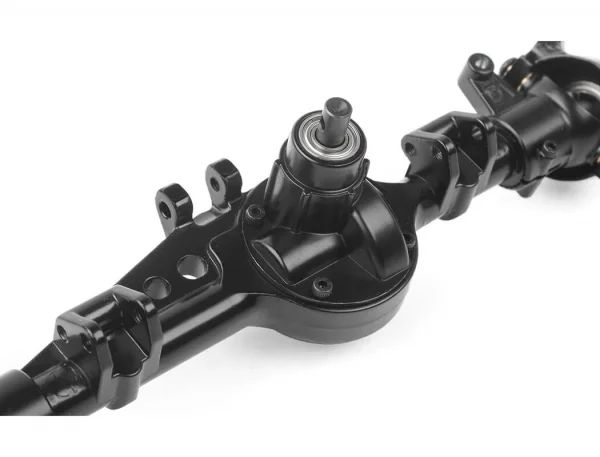

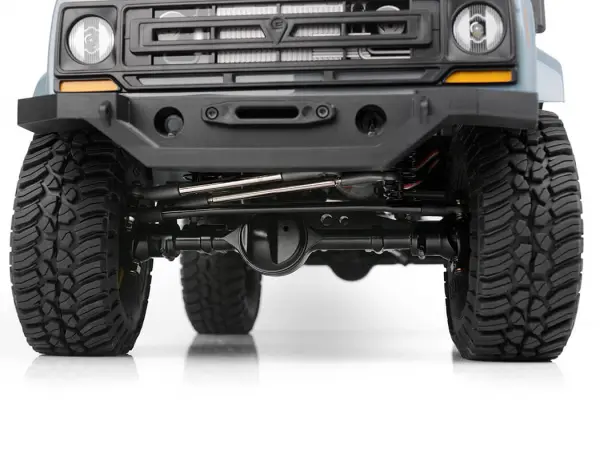

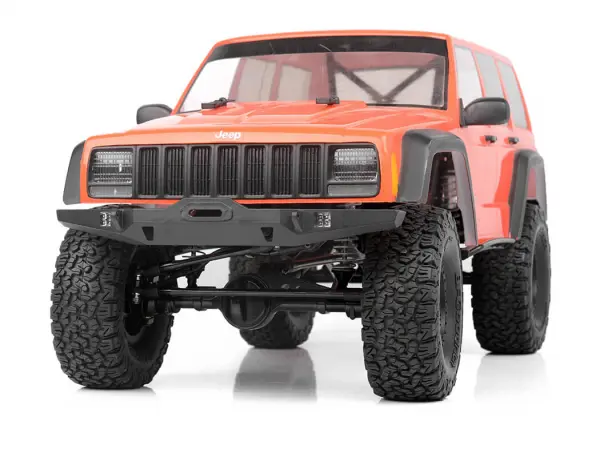

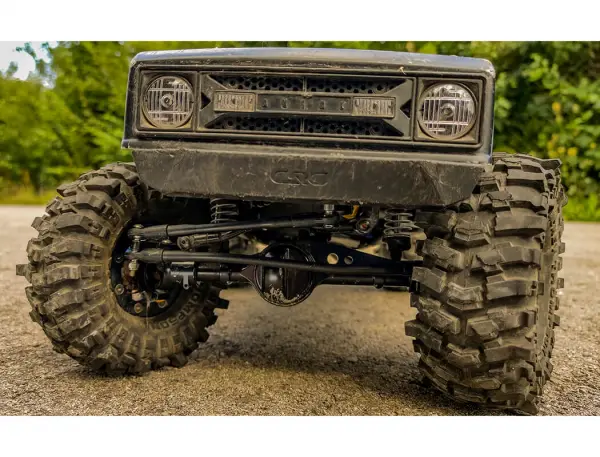

With improved steering and durability, the TEQ Ultimate Scale Axles are a modern version of the Yota II axles designed as an upgrade for Axial SCX10 II and Element Enduro line of RC trucks. These scale axles are cast from a high grade aluminum alloy and come with integrated suspension link mounts that construct a single, hardened unit. Solid and maneuverable, this set features universal style XVD shafts that deliver a tighter turning radius and high strength driveline. The ring and pinion gears are a CNC machined, hypoid tooth design and are linked to a 6 bolt hardened steel locker. The C-hubs feature interlocking grooves on the front axle which enables caster customization and the front pumpkin is offset providing more ground clearance. All of this is packed into a high strength cast aluminum case with a long lasting powder-coated finish. These RC Axles will look awesome on your custom Axial SC10 II or Element Enduro.
Specifications:

• Die Cast Light Weight Metal Housing
• Hardened Steel Spool Gears
• 5mm Axle Output Shaft
• Full Ball Bearings
• Powder-coated in Black
• Width: 189.6mm / 7.46in
• Gear Ratio: 8T/30T
• 12mm Steel Wheel Hex
• Weight: 6.24oz / 177g

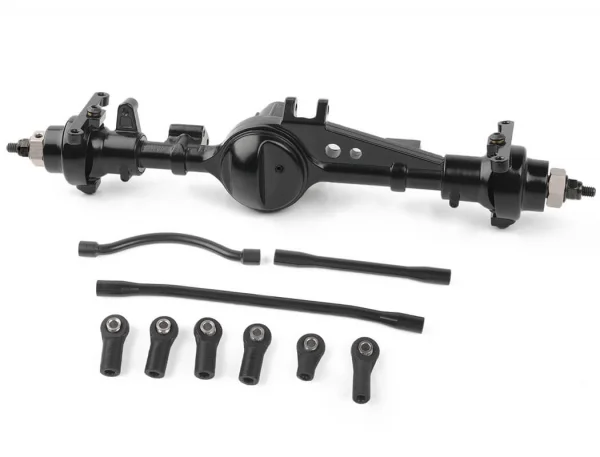

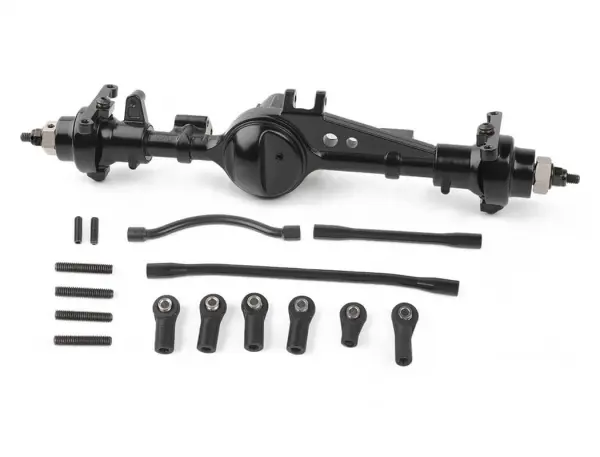

• 1x TEQ Ultimate Scale Cast Axle (Front)
• 1x 115.8mm Link
• 1x 63mm Link
• 1x 66mm Bent Link
• 1x M3 Plastic Bent Rod End
• 1x M3 Mini Plastic Rod End
• 4x RC4WD M3/M4 Plastic Short Rod Ends
• 2x M3 x 10mm Set Screws

• 4x M4 x 20mm Set Screws

• TEQ Ultimate Scale Cast Axle (Rear)  (Z-A0133)

• M4 Flanged Lock Nut (Black) (Z-S0620)
• M2 X 3mm Set Screws
• Steel Socket Head Cap Screws M2 x 5mm
• Steel Socket Head Cap Screws M2 x 10mm (Z-S0849)
• Steel Socket Head Cap Screws M2 x 14mm

• Steel Button Head Cap Screws M3 x 8mm (Z-S0652)
• M3 Plastic Bent Rod Ends (Z-S0074)
• M3 Mini Plastic Rod End (Z-S0398)
• RC4WD M3/M4 Plastic Short Rod Ends (Z-S1378)
• M3 X 10mm Set Screw (Z-S0308)
• M4 20mm Long Threaded Shaft (Set Screws) (Z-S0030)

• TEQ Ultimate Scale Cast Axle Steering Knuckles and C-Hubs (Z-S1975)
• TEQ Ultimate Scale Cast Axle Diff Cover and Third Member (Z-S1980)
• TEQ Ultimate Scale Cast Axle Housing (Front) (Z-S1976)

• Replacement Steering Knuckles and C-Hubs for TEQ Ultimate Scale Axles (Z-S1975)
• Steering and Panhard links for TEQ Axle (Z-S1977)
• TEQ Ultimate Scale Cast Axle XVD Universal Axle Shafts (Front) (Z-S1978)

• TEQ Ultimate Scale Cast Axle Ring and Pinion Gears W/ Locker (Z-G0076)
• TEQ Ultimate Scale Cast Axle Service Kit (Front) (Z-S1985)

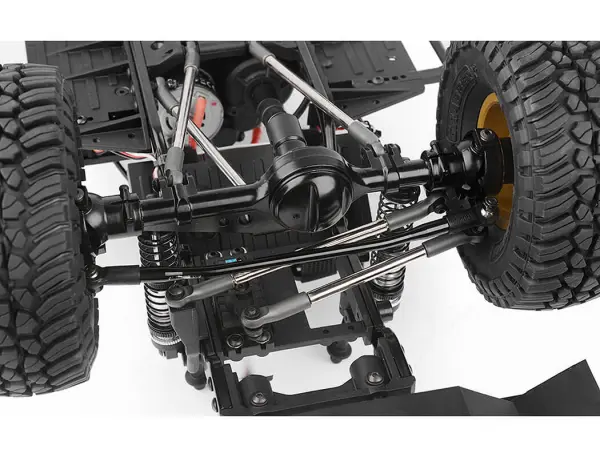

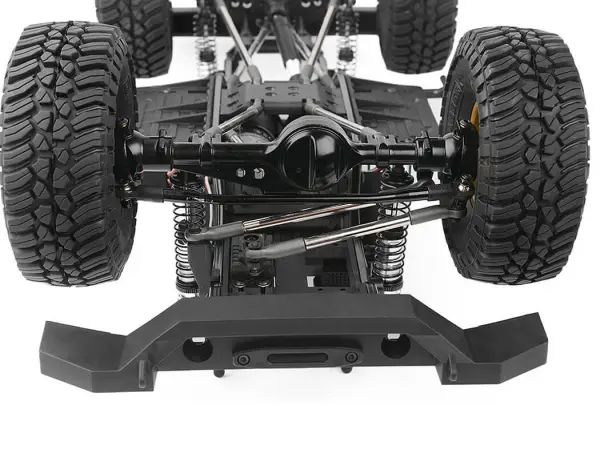

• Fits Axial SCX10 II
• Fits Associated Element Enduro

• To install on Element Enduro chassis you will need to use the stock panhard and drag link.
• To retain a centered front axle the stock panhard link and drag link will need to the lengthened by loosening the rod ends 1-2 revolutions.
• Please do routine maintenance.

• Check the grease around the gears and also oil the bearings.
• Do not over tighten screws as you can strip the holes. Use Locktite but do not use too much or you can damage the casing.

• Brand: RC4WD
• Part No: Z-A0127
• Barcode: 639302593455
