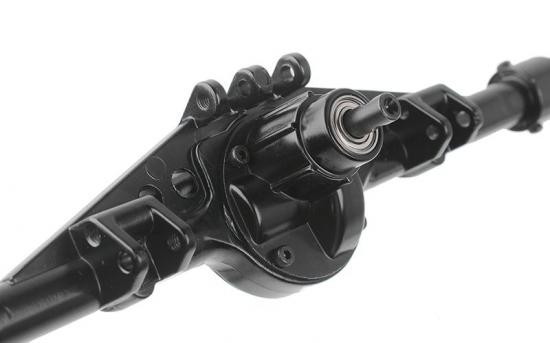

RC4WD TEQ Ultimate Scale Cast Axle (Rear) RC4WD
Brand: RC4WD
Part No: Z-A0133
Out Of Stock
Request Stock NotificationThe RC4WD TEQ Ultimate Scale Cast Axle (Rear) brings robust performance and scale detail to your crawler build. Based on the modernised Yota II design, this rear axle is cast from high-grade aluminium alloy with integrated suspension link mounts to form a single, hardened unit. A CNC-machined hypoid ring and pinion set drives a 6-bolt hardened steel locker, with full ball bearings throughout and a durable black powder-coated finish.
With a 189.6 mm track width, 12 mm steel wheel hexes and 5 mm output shafts, the Z-A0133 rear axle delivers dependable driveline strength and long-term reliability for scale trail running.
Suggested compatibility: Axial SCX10 II and Associated Element Enduro platforms.
Specifications
- Cast light weight aluminium housing
- Hardened steel ring and pinion gears
- 5 mm axle output shaft
- Full ball bearings
- Powder-coated in black
- Width: 189.6 mm / 7.46 in
- Gear ratio: 8T/30T
- 12 mm steel wheel hex
- Weight: 4.97 oz / 141 g
What’s Included
- 1x TEQ Ultimate Scale Cast Axle (Rear)
Replacement Parts
- TEQ Ultimate Scale Cast Axle Diff Cover and Third Member (Z-S1980)
- TEQ Ultimate Scale Cast Axle Housing (Rear) (Z-S1979)
- TEQ Ultimate Scale Cast Axle Straight Axle Shafts (Rear) (Z-S1981)
- TEQ Ultimate Scale Cast Axle Ring and Pinion Gears w/ Locker (Z-G0076)
- TEQ Ultimate Scale Cast Axle Service Kit (Rear) (Z-S2171)
Replacement Hardware
- M4 Flanged Lock Nut (Black) (Z-S0620)
- M2 x 3 mm Set Screws
- Steel Socket Head Cap Screws M2 x 5 mm
- Steel Socket Head Cap Screws M2 x 10 mm (Z-S0849)
- Steel Button Head Cap Screws M2 x 4 mm
Other TEQ Axles
- TEQ Ultimate Scale Cast Axle (Front) (Z-A0127)
Maintenance Notes
- Perform routine maintenance.
- Check and refresh grease on gears; oil the bearings.
- Do not over-tighten screws to avoid stripping.
- Use threadlock where appropriate, sparingly, to protect the casing.
Secured by Stripe
TEQ Ultimate Scale Cast Axle (Rear)
With improved steering and durability, the TEQ Ultimate Scale Axles are a modern version of the Yota II axles designed as an upgrade for Axial SCX10 II and Element Enduro line of RC trucks. These scale axles are cast from a high grade aluminum alloy and come with integrated suspension link mounts that construct a single, hardened unit. Solid and maneuverable, this set features universal style XVD shafts that deliver a tighter turning radius and high strength driveline. Bringing the Axial SCX10 II and Element Enduro RC trucks upgraded soundness, the ring and pinion gears are a CNC machined, hypoid tooth design and are linked to a 6 bolt hardened steel locker. The C-hubs feature interlocking grooves on the front axle which enables caster customization and the front pumpkin is offset providing more ground clearance. All of this is packed into a high strength cast aluminum case with a long lasting powder-coated finish.
Specifications:
- Cast Light Weight Aluminum Housing
- Hardened Steel Ring and Pinion Gears
- 5mm Axle Output Shaft
- Full Ball Bearings
- Powder-coated in Black
- Width: 189.6mm / 7.46in
- Gear Ratio: 8T/30T
- 12mm Steel Wheel Hex
- Weight: 4.97oz / 141g
Shown installed on Axial SCX10 II for example (Not Included)
What's Included:
- 1x TEQ Ultimate Scale Cast Axle (Rear)
Other TEQ Axles:
- TEQ Ultimate Scale Cast Axle (Front) (Z-A0127)
Replacement Hardware:
- M4 Flanged Lock Nut (Black) (Z-S0620)
- M2 X 3mm Set Screws
- Steel Socket Head Cap Screws M2 x 5mm
- Steel Socket Head Cap Screws M2 x 10mm (Z-S0849)
- Steel Button Head Cap Screws M2 x 4mm
Replacement Parts:
- TEQ Ultimate Scale Cast Axle Diff Cover and Third Member (Z-S1980)
- TEQ Ultimate Scale Cast Axle Housing (Rear) (Z-S1979)
- TEQ Ultimate Scale Cast Axle Straight Axle Shafts (Rear) (Z-S1981)
- TEQ Ultimate Scale Cast Axle Ring and Pinion Gears W/ Locker (Z-G0076)
- TEQ Ultimate Scale Cast Axle Service Kit (Rear) (Z-S2171)
Notes:
- Fits Axial SCX10 II
- Fits Associated Element Enduro
- Please do routine maintenance.Â
- Check the grease around the gears and also oil the bearings.
- Do not over tighten screws as you can strip the holes.Â
- Use Locktite but do not use too much or you can damage the casing.
Key Info:
- Brand: RC4WD
- Part No: Z-A0133
- Barcode: 639302600573
