RC4WD Trail Finder 2 V8 Engine Mounts

The RC4WD Trail Finder 2 V8 Engine Mounts (Z-S1239) provide a precise, CNC-machined mounting solution in aluminium and steel for V8 engine conversions on the TF2 platform. Designed to work with the RC4WD 1/10 V8 Scale Engine and TCI Heavy Duty R4 Single Speed Scale Transmission, this set includes the key brackets, coupling, link and fixings needed for a clean installation.

Specifications

• CNC machined
• Aluminium and steel construction
• Weight: 1.79oz / 51g

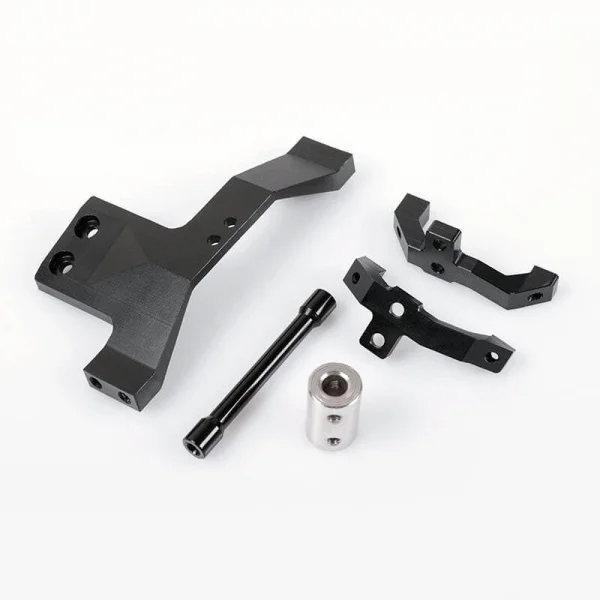

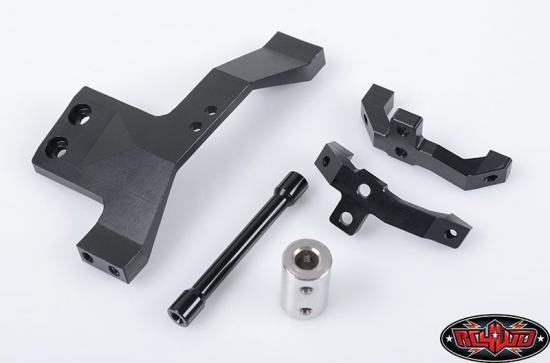

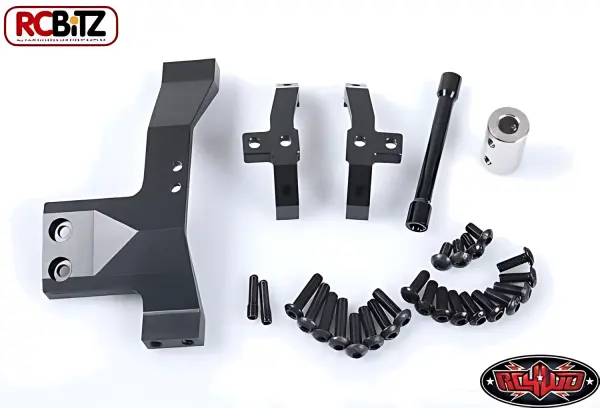

What’s Included

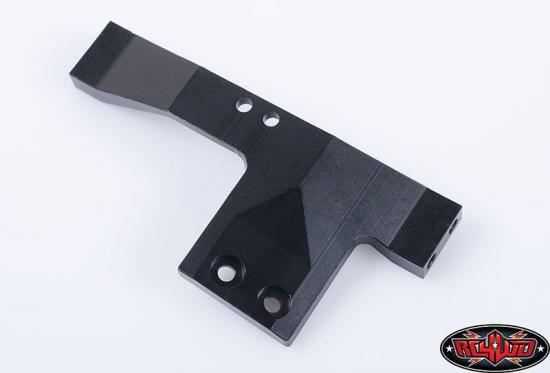

• 1x TF2 V8 Engine Mount (Black)

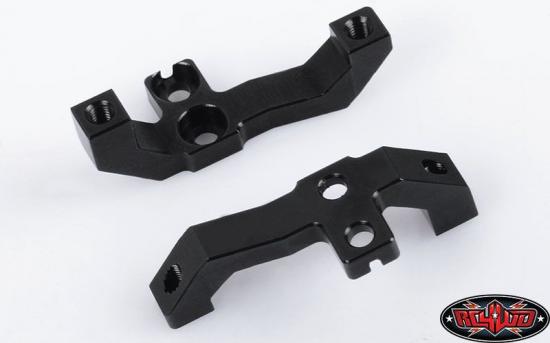

• 1x TF2 V8 Engine Mount (Left) (Black)
• 1x TF2 V8 Engine Mounts (Right) (Black)

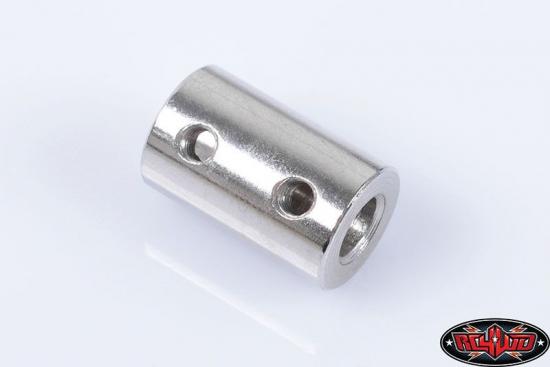

• 1x 17.5mm TF2 R4 Coupling (Silver)
• 1x 47mm Link
• 4x M3 x 6mm BHCS (Z-S0651)
• 12x M3 x 8mm BHCS (Z-S0652)
• 4x M3 x 10mm BHCS (Z-S0653)
• 4x M3 x 12mm BHCS (Z-S0654)
• 2x Single M3 Drivehaft Screw Pin (5) (Z-S0804)

Notes

• This mount uses the locations for the front 3-link setup. If a front 3-link is installed, it must be removed and leaf springs used on the front.
• This product cannot be installed on TF2 with the 3/4 link (Z-S0603) / (Z-S0565).

Suggested Compatibility

• Trail Finder 2 Truck Kit w/Mojave Body Set (Z-K0042 "Disc") with RC4WD 1/10 V8 Scale Engine (Z-S1043) and RC4WD TCI Heavy Duty R4 Single Speed Scale Transmission (Z-U0031)
• RC4WD Trail Finder 2 Truck Kit w/Mojave II Body Set (Z-K0049) with RC4WD 1/10 V8 Scale Engine (Z-S1043) and RC4WD TCI Heavy Duty R4 Single Speed Scale Transmission (Z-U0031)
• Trail Finder 2 RTR w/Mojave Body Set (Z-RTR0019 "Disc") with RC4WD 1/10 V8 Scale Engine (Z-S1043) and RC4WD TCI Heavy Duty R4 Single Speed Scale Transmission (Z-U0031)
• RC4WD Trail Finder 2 RTR w/Mojave II Body Set (Z-RTR0024) with RC4WD 1/10 V8 Scale Engine (Z-S1043) and RC4WD TCI Heavy Duty R4 Single Speed Scale Transmission (Z-U0031)

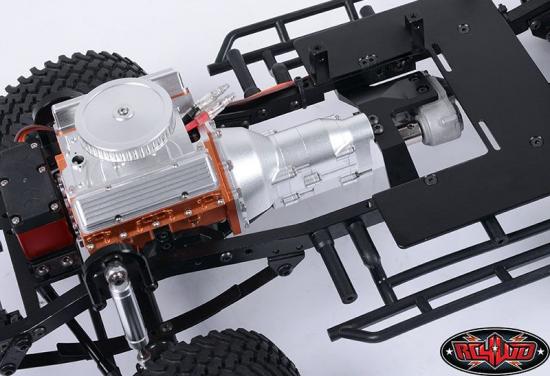

Example Setup (Not Included)

• RC4WD Trail Finder 2 Truck Kit w/Mojave II Body Set (Z-K0049)
• RC4WD 1/10 V8 Scale Engine (Z-S1043)
• RC4WD TCI Heavy Duty R4 Single Speed Scale Transmission (Z-U0031)
• 540 Crawler Brushed Motor 45T (Z-E0004)

Instruction Manual

TF2 & V8 Engine Fitting Instructions available to download.
