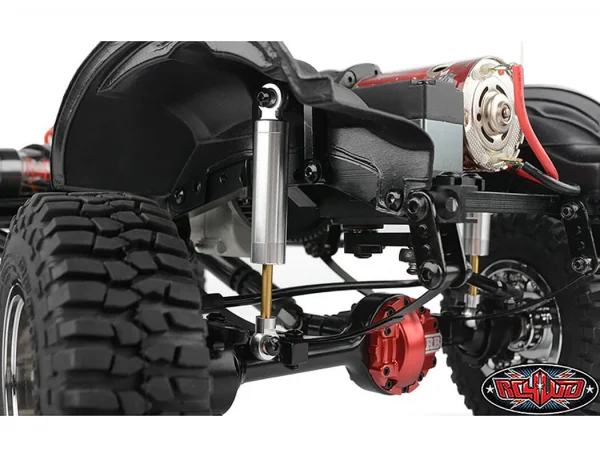

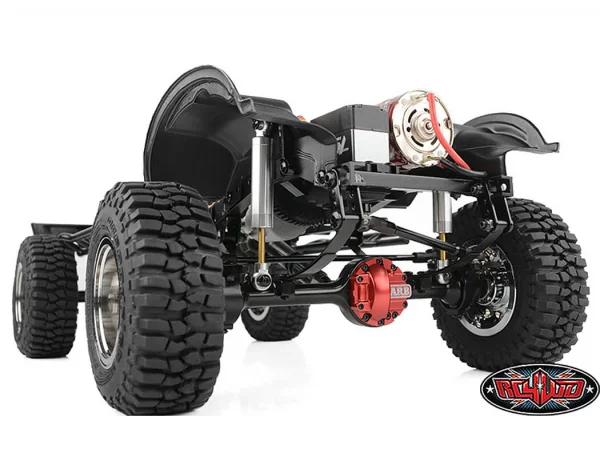

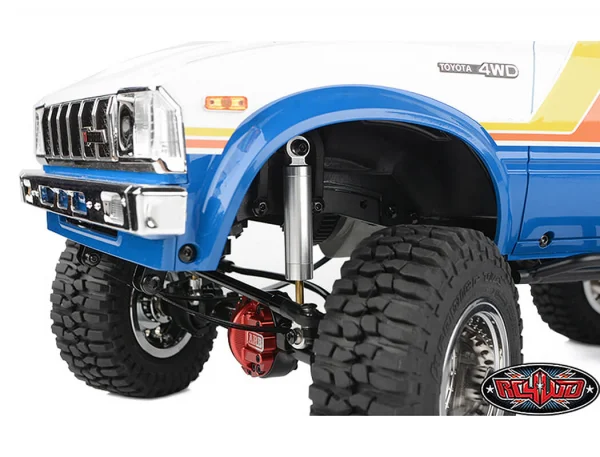

RC4WD Ultimate Scale Shocks 70mm

The RC4WD Ultimate Scale Shocks 70mm (Z-D0087) are CNC machined from billet aluminium and feature an internal spring design for a clean, scale look. With X-ring gaskets and titanium nitride coated shock shafts, these shocks are designed to be oil filled for smooth, consistent damping.

Features

• CNC machined
• Billet aluminium
• Silver anodised finish
• Internal spring design
• Steel rod end ball
• X-ring gaskets
• Titanium nitride coated shock shafts

Specifications

• Hole to Hole (Compressed): 2.17in / 55.2mm
• Hole to Hole (Uncompressed): 2.76in / 70mm
• Overall Length: 3.10in / 78.74mm
• Travel Length: 0.58in / 14.8mm
• Shock Body OD: 0.39in / 10.0mm
• Shaft OD: 0.11in / 3.00mm
• Each Shock Weighs: 0.34oz / 9.9g

What’s Included

• 2 x RC4WD Ultimate Scale Shocks 70mm

Suggested Compatibility

• RC4WD Trail Finder 2 Truck Kit "SWB" (Z-K0045)
• RC4WD Trail Finder 2 "LWB" 1/10 Scale Builders Kit (Z-K0065)
• RC4WD Trail Finder 2 Truck 1/10 Scale Builders Kit (Z-K0069)
• RC4WD Trail Finder 2 Truck Kit w/1982 Toyota Pickup Hard Body Complete Set (Z-K0070)
• RC4WD Marlin Crawler Trail Finder 2 RTR w/Mojave II Crawler Body Set (Z-RTR0034)
• RC4WD Trail Finder 2 RTR w/1985 Toyota 4Runner Hard Body Set (Red) (Z-RTR0063)
• RC4WD Trail Finder 2 "LWB" RTR w/ 1987 Toyota XtraCab Hard Body Set (White) (Z-RTR0064)
• RC4WD Trail Finder 2 "LWB" RTR W/ Chevrolet K10 Scottsdale Hard Body Set (Red) (Z-RTR0066)
• RC4WD Trail Finder 2 "LWB" RTR W/ Chevrolet K10 Scottsdale Hard Body Set (Black)(Z-RTR0067)
• RC4WD Trail Finder 2 RTR w/Chevrolet Blazer Body Set (Midnight Edition) (Z-RTR0068)
• RC4WD Trail Finder 2 RTR w/1982 Toyota Pickup Hard Body Set (Blue) (Z-RTR0069)
• RC4WD Trail Finder 2 RTR w/1982 Toyota Pickup Hard Body Set (Red) (Z-RTR0070)

Notes

• Use blue (medium) thread lock to the bottom shock shaft rod end before installing on to your vehicle to help keep it in place.
• The new X-ring shocks are designed to be oil filled for smooth damping.
